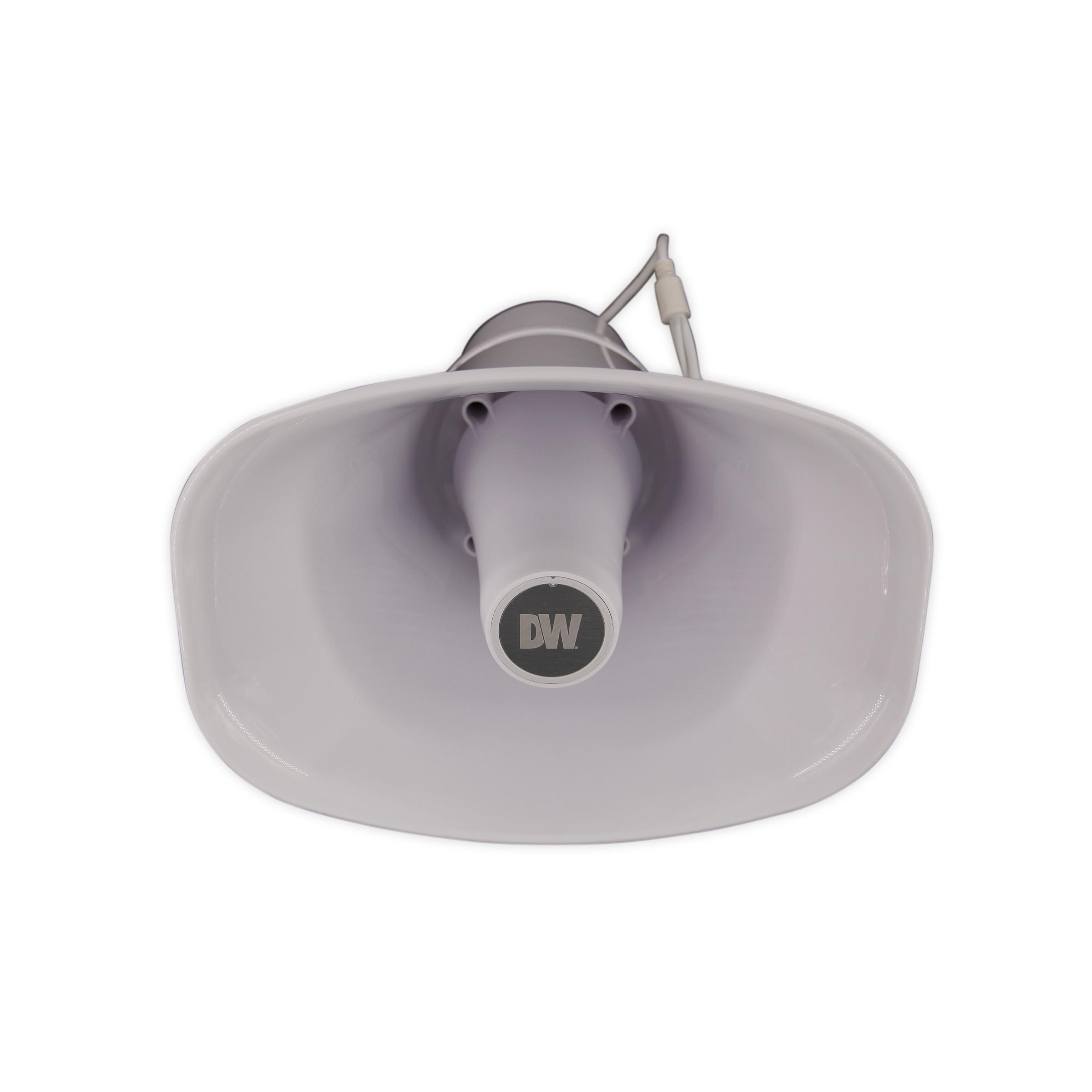

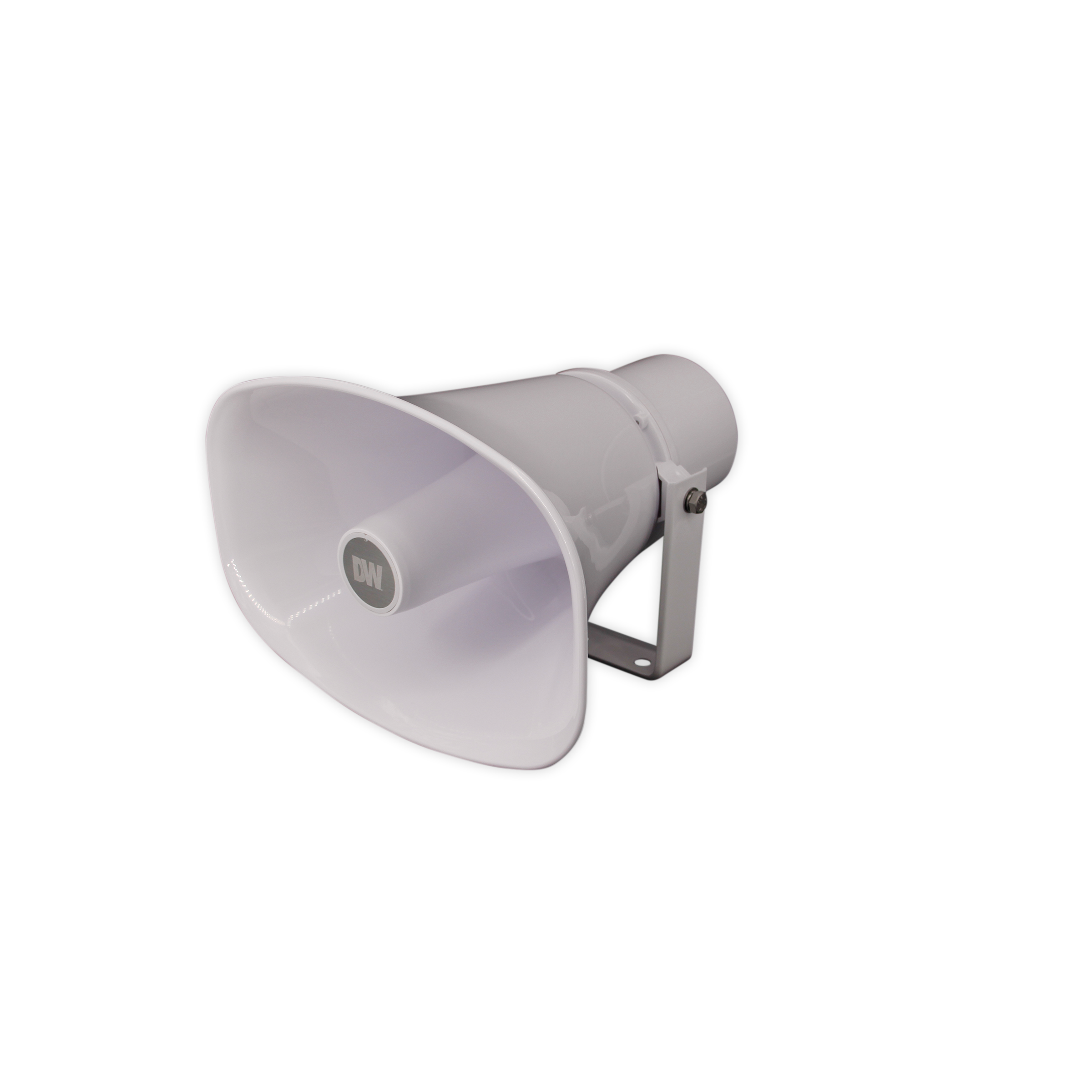

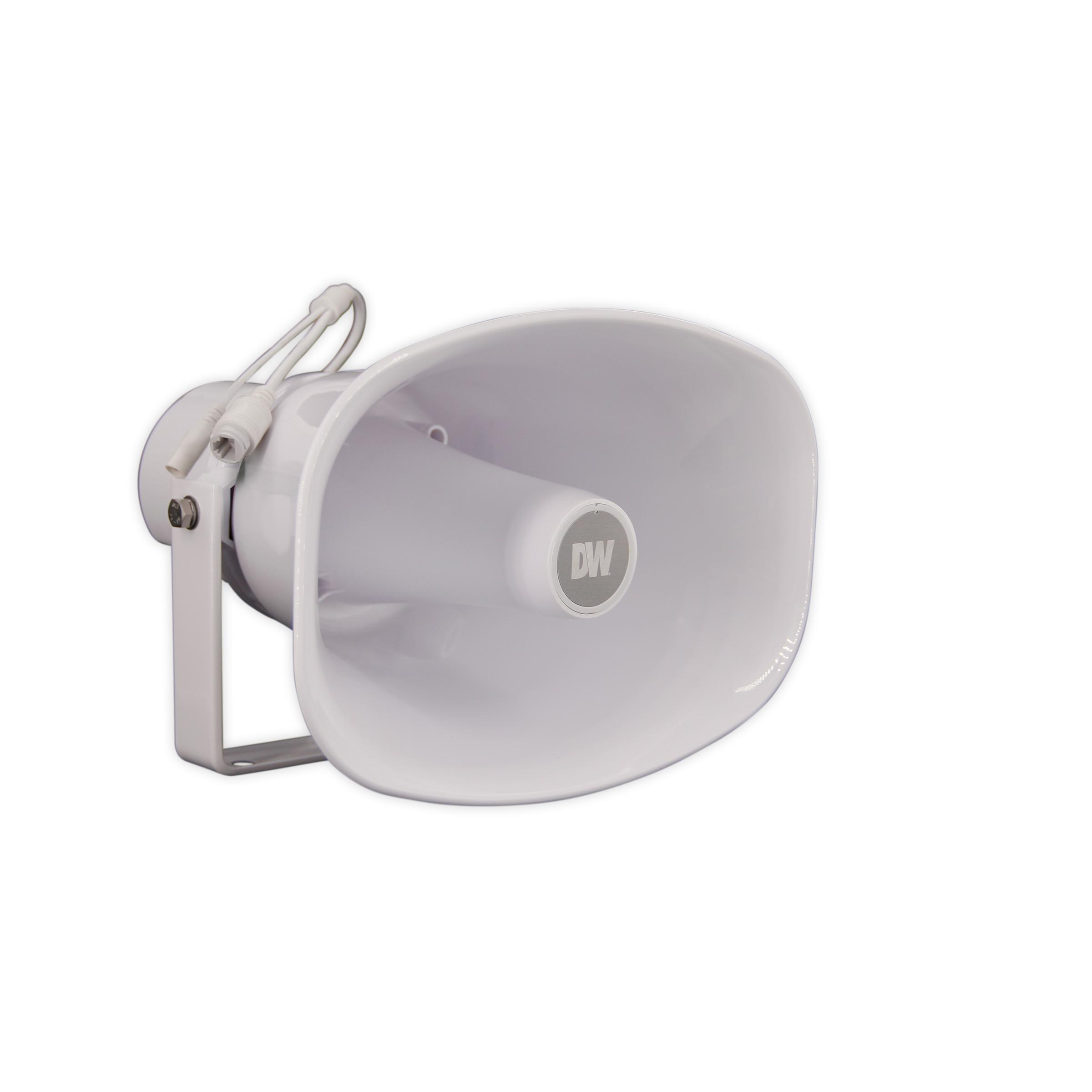

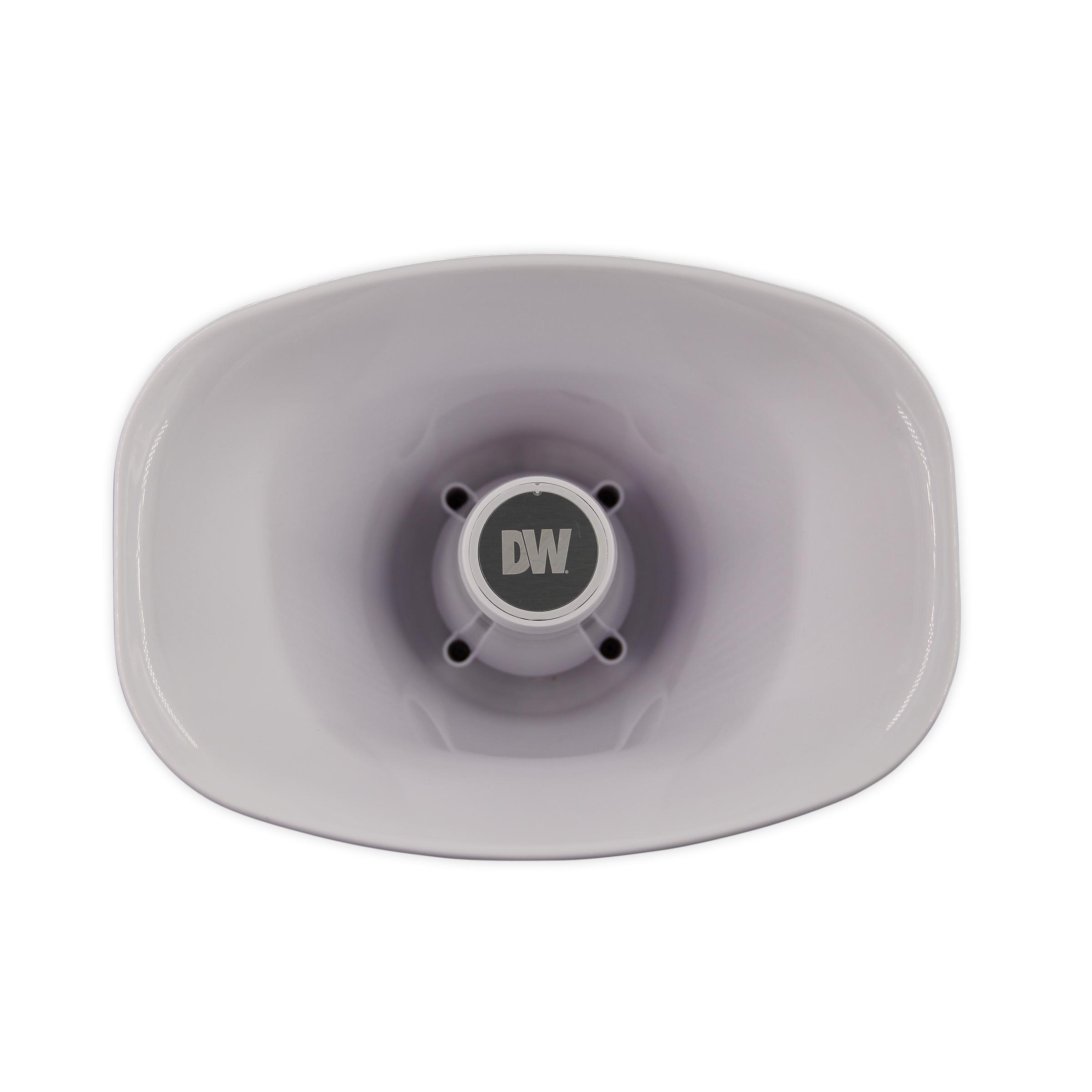

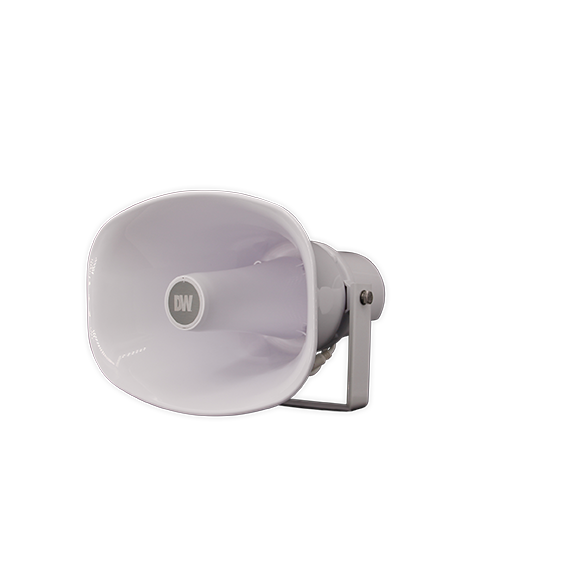

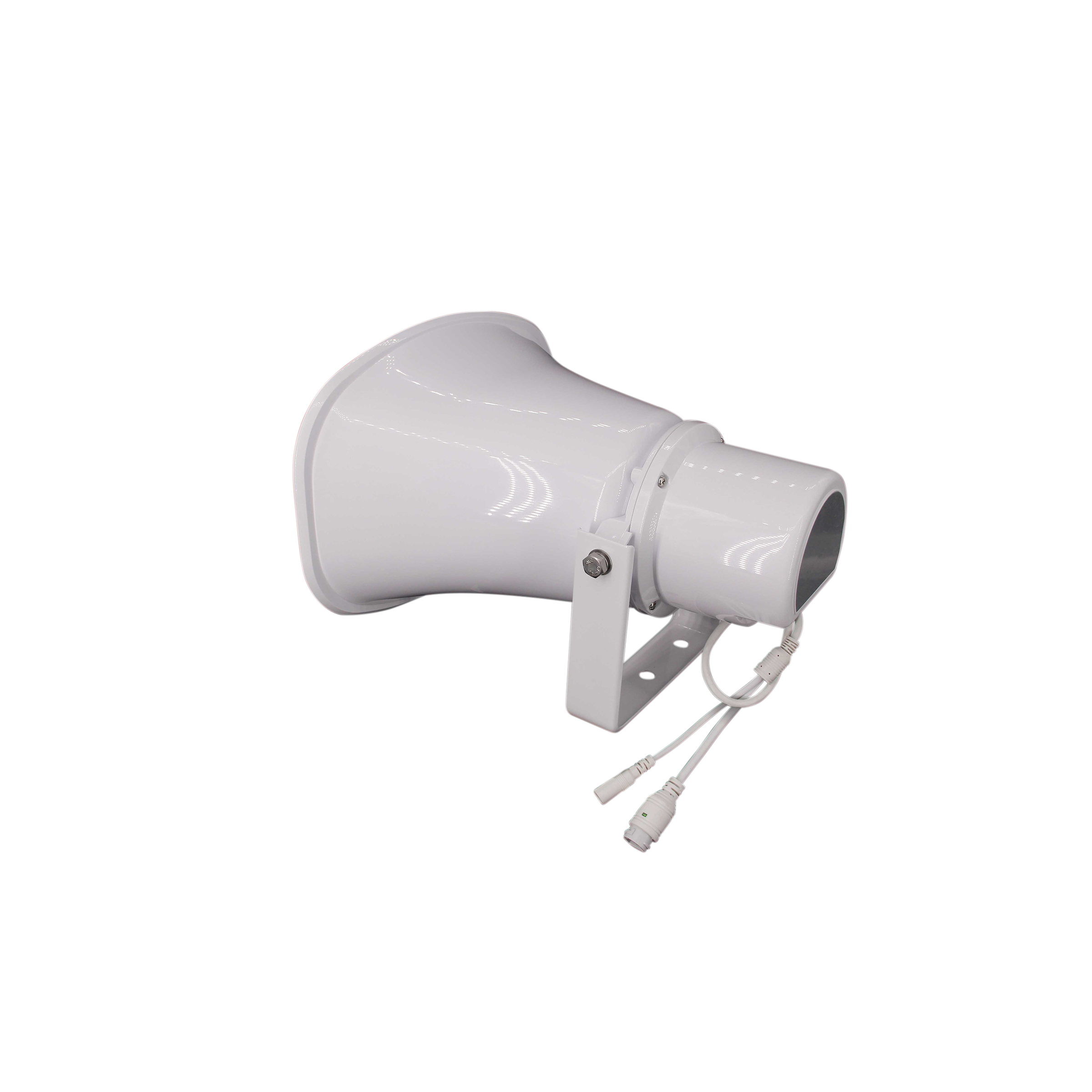

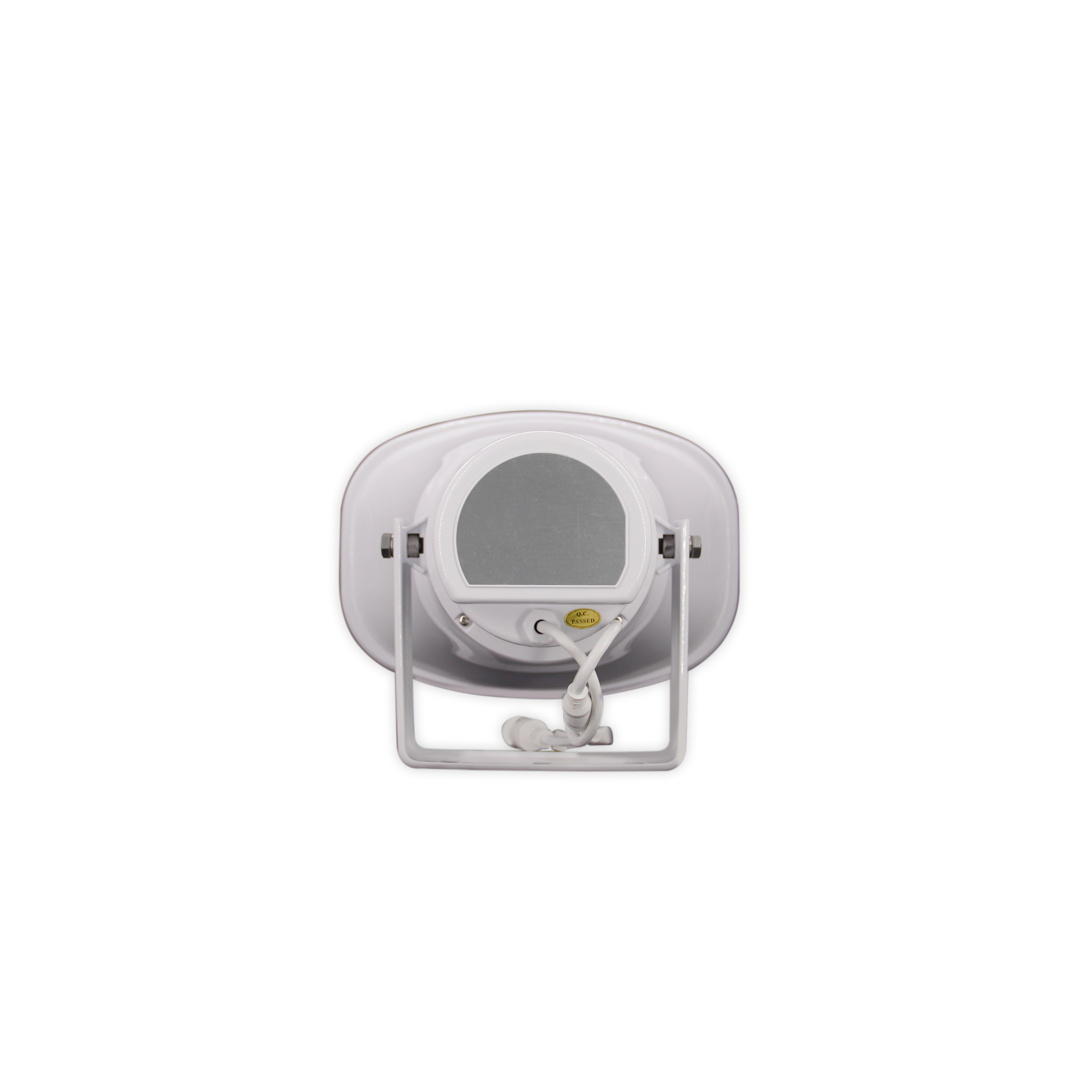

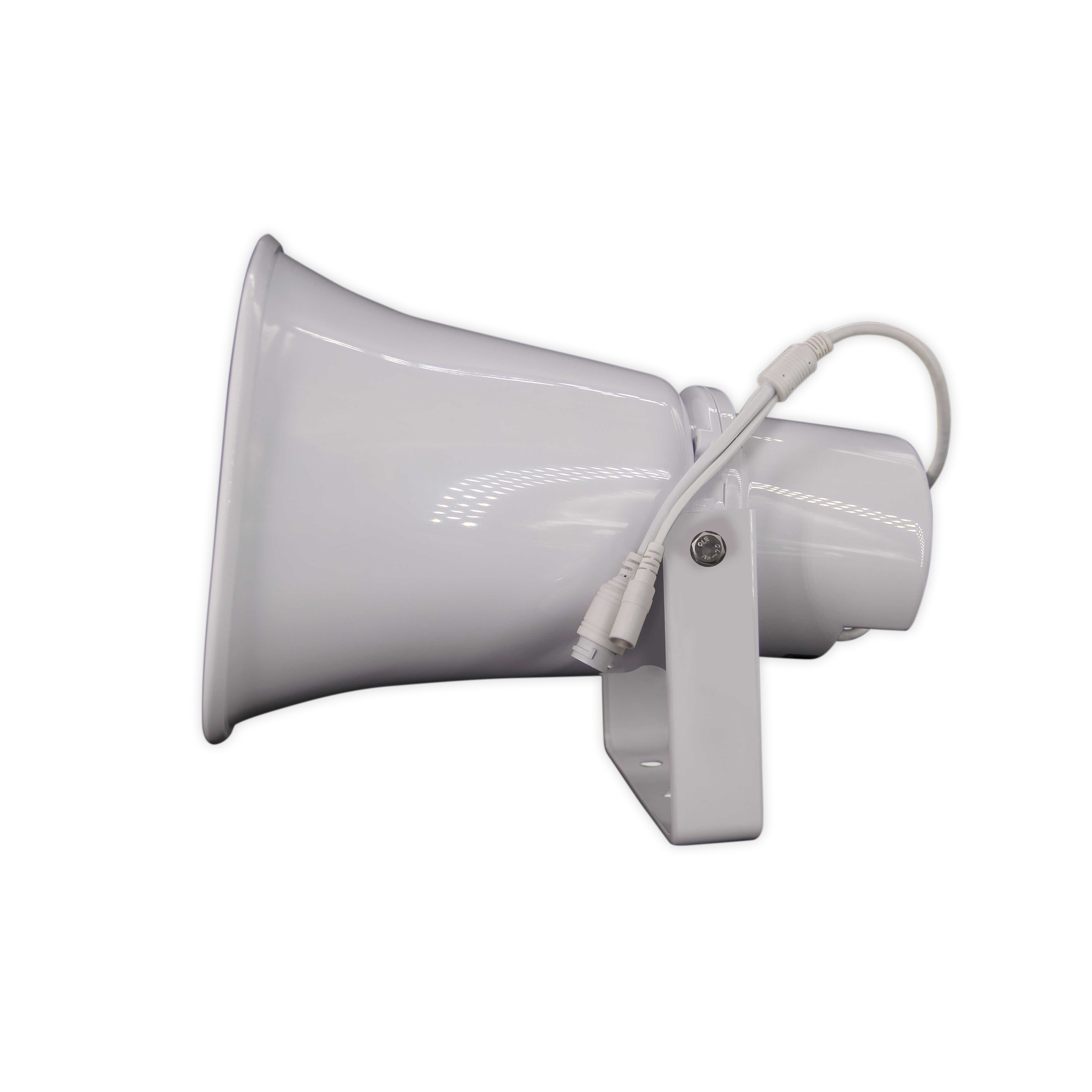

Digital Watchdog - DW-SWSP30AM - 30-Watt IP-enabled Horn Speaker
Part number:
DW-SWSP30AM
Price:

IP Horn Speaker, 30W, 120dB,350Hz, Built in 30W Amplifier, Built in Microphone, Alarm Input, Compatible with VoIP Devices(IPPBX,IP Phone) Via SIP, Supports Pre-Recorded Messages, Live Responses, Alarms and Background Music, G.711 PCMA 8 kHz, G.711 PCMU 8 kHz, G.722 ADPCM 16 kHz, MP3 44.1 kHz, OPUS 48 kHz, Onvif, PoE or 12V/24V, IP66, 2 Year Warranty.



All-in-One Speaker

DW's all-in-one speakers are designed with powerful amplifiers and signal processing (DSP) to ensure that every voice message is clear and easy to understand. The speaker has an on-board memory that can store pre-recorded voice messages, music, and alerts. The DW-SWSP30M model also includes a built-in microphone, which enables operators to respond to notifications or audio from the field with live communications.


No Noise or Audio Distortion

DW's speakers provide clear and audible speech and audio and come with a preconfigured, built-in digital signal processor (DSP) that ensures live speech and prerecorded audio can be heard clearly, even from a distance.


Flexible and Scalable Solution

DW's speakers are designed to support Power over Ethernet (PoE) for a simplified installation process. The speakers transmit data and receive power through a single cable, making it easy to integrate with your existing surveillance, Voice over IP (VoIP) telephony (via SIP), and event management via DW Spectrum. As a standalone product, the speaker can be placed anywhere you need it.


Audio for safety

Use pre-recorded and live messages as part of your warning and crucial safety system in emergencies. The horn speaker can deliver up-to-the-minute information and guide the public and your workforce in emergencies.


Audio for deterrence

Combine DW’s horn speaker with video and alarm systems to create deterrence and prevent crime or damage to your property. Audio adds value to your security system with real-time responses to suspicious behavior at the scene.


Audio for operations

The horn speaker is a cost-effective solution for delivering non-emergency messages to public areas, supporting and helping streamline your operations and offering public addresses, guidelines and announcements.


Features:

  • All-in-one IP speaker system
  • Built-in microphone
  • Compatible with IP cameras via DW Spectrum IPVMS
  • Compatible with VoIP devices (IPPBX, IP Phone) via SIP
  • Built-in 30W output
  • Support pre-recorded messages, live responses, alarms and background music
  • Alarm input
  • Schedule audio alerts
  • Support HTTP API for alarm-in transmit
  • Web server built-in
  • Simple installation with PoE
  • ONVIF conformant
  • PoE Class 3 and DC12V-24V
  • Wall mount bracket included
  • IP66 environmental-rated dust-tight and water-resistant
  • 2 year warranty

Specification
Audio
Built-in microphoneYes
CodecG.711 PCMA 8 kHz
G.711 PCMU 8 kHz
G.722 ADPCM 16 kHz
MP3 44.1 kHz
OPUS 48 kHz
Mounting Accessories
Max load bearingThe mounting surface must bear five times the weight of the camera and bracket
OperatingPoE or DC 12-24V
MaterialABS
IP66 water-proof
Working Temperatures-22°F ~ 140°F (-30°C ~ 60°C)
Working humidity5%~85%
Mounting optionsFully adjustable (left, right, up & down)
Wall
Indoor
Outdoor
Warranty2 year warranty
Included accessoriesQSG
Waterproof Cap
Speaker
AmplifierBuilt-in 30W amplifier
Frequency range400-12KHZ +-20dB
500-2KHZ +-10dB
Frequency response350Hz ~ 8KHz
Harminoc distortion0.1@1kHz
Max SPL120dB
Signal to noise ratio91dB
Network
Network interface10/100 Base-TX
RJ54
Network ProtocolsARP
DHCP
FTP
HTTP/HTTPS
IPv4
NFS
NTP
ONVIF
RTCP
RTP
RTSP
SIP
TCP
TFTP
UDP
SecurityDigest authentication
IP address filtering
Password protection
User access log
VoIPSupport for SIP protocol for integration with VoIP systems, integrated with SIP/PBX
Support SIP features: secondary/backend SIP server, IPv4
Supported codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
General
General Dimensions11.22” x 8.07” x 11.22” (285 x 205 x 285mm)
InterfaceAudio in
GPIO alarm in
Weight4.4 lbs (2 kg)
