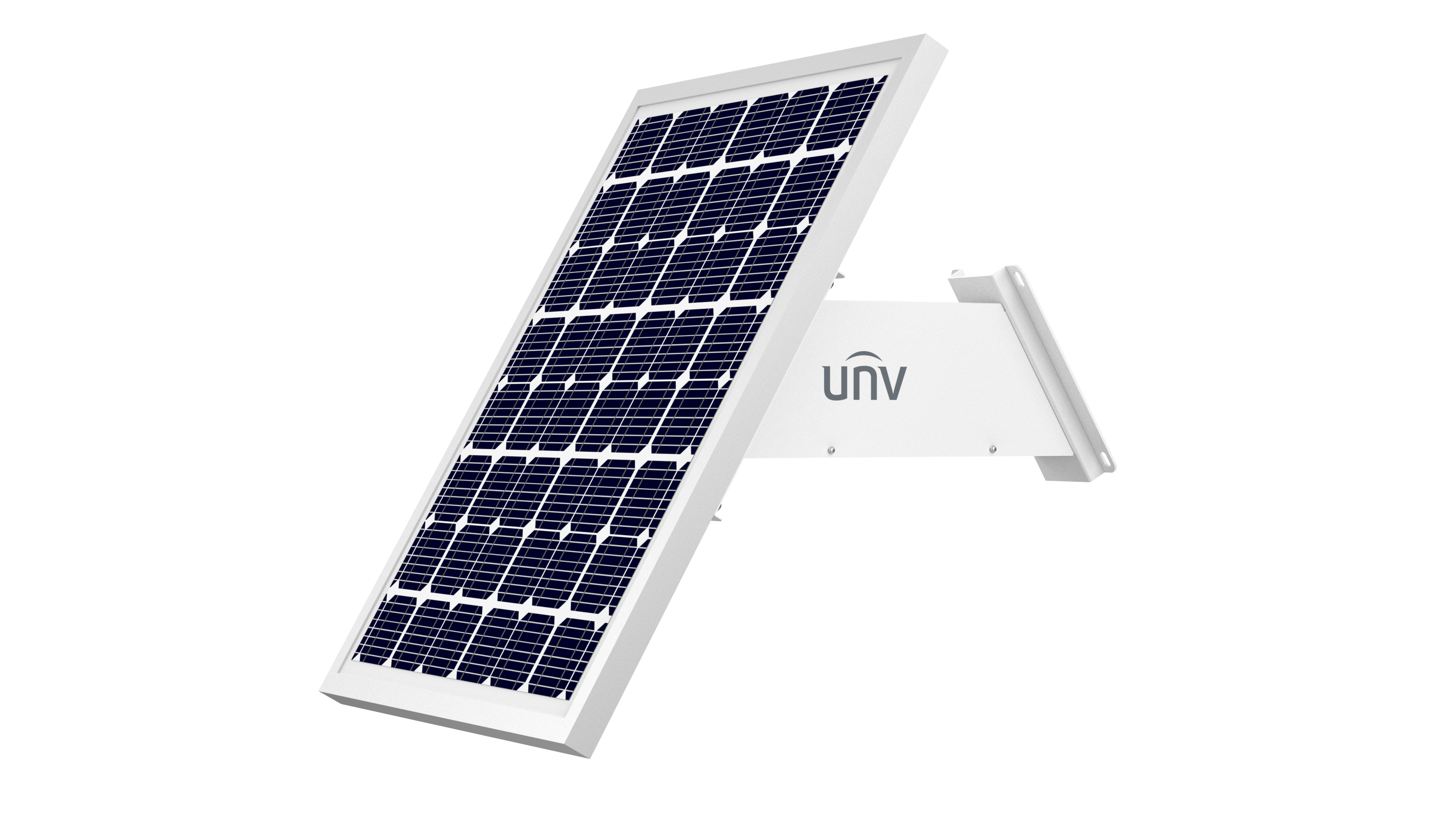

Uniview - SLR-B320P60 - 320Wh/60W Solar Power System (Heating,Operation)
Part number:
SLR-B320P60
Price:

320Wh/60W Solar Power System(Heating,Operation)



Features:

• Modular design for easy battery assembly, hanging design for easy solar panel installation.
• Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
• Built in self developed high efficiency solar controller realizes faster charging.
• Visual status indicator allows for easy understanding of the product’s operating status.
• Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
• Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
• Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
• Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
• High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
• High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
• Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
• Allows to overlay the battery percentage OSD on the camera’s live video.
• Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.

Lithium Battery
Battery capacity100 Ah
Rated energy320 Wh
Limited charge voltage7 V
Output voltage9 V to 12.6 V
Maximum output current2 A
Input interface type4-pin quick connector (for battery switch)
Output interface typeDC 12 V circular connector
RS485Support
Dimensions419.2 × 118 × 336.5 mm
Protection functionHigh/low temperature protection, overcharge protection, undervoltage protection
Solar Panel
Peak power60 W
Operating voltage4.5 V
Operating current13.33 A
Open circuit voltage5.4 V
Short circuit current14.66 A
Cell conversion efficiency≥ 22%
Output interface type4-pin quick connector (for battery switch)
Dimensions765 × 395 × 25 mm
Operation and Maintenance Module
Open circuit voltage12 V
Typical power consumption0.84 W
Maximum power consumption2 W
Input interface typeDC 12 V circular connector
RS485Support
Reset buttonSupport
IndicatorBlinking green: Normal operation; Steady red: Network error
Dimensions90 × 90 × 38.3 mm
Ingress protectionIPX5
AccessoryOne-to-two power cable
Specification
Operating temperature-20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge)
Weight9.18KG (Lithium Battery : 4.61KG, Solar Panel : 4.42KG, Operation and Maintenance Module : 150g)
General
Suitable pole diameter67mm to 110 mm
