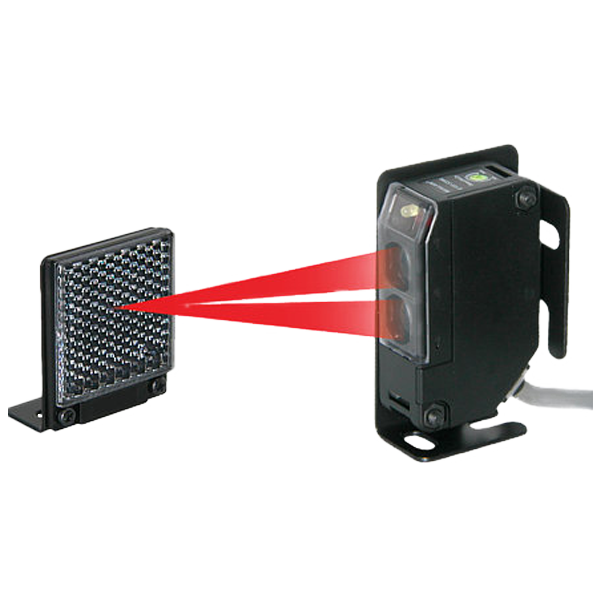

SECO-LARM - E-931-S35RRQ - 35ft Reflective Photoelectric Beam Sensor
Part number:
E-931-S35RRQ
Price:

35ft Reflective Photoelectric Beam Sensor. Range: Up to 35ft. 12~240 VDC or 24~240 VAC. 1A Relay output, NO/NC/COM.



Features:

  • For outdoors gates, garage doors, etc.
  • Adjustable sensing range
  • 12~240 VDC / 24~240 VAC Operation
  • Current draw: Up to 40mA@12VDC
  • For indoor or outdoor use (IP66 Weatherproof)
  • Pre-wired 6.5ft (2m) cord
  • Brackets and mounting hardware included
  • Compact size
  • New single-gang box and wall-mount brackets available



Typical Applications

  • Sensor for garage doors, outdoor gates or overhead doors
  • Sensor for industrial automation to detect objects on manufacturing line
TypeNIR Reflective Photoelectric Sensor
Current DrawStandby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA
Sensing Range0.5′ to 35′ (0.1 – 11m)
Operating Voltage12~240 VDC / 24~240 VAC
Reaction time10ms (max.)
Light SourceIR LED
LEDs – RedActive
LEDs – YellowStandby
OutputSPDT Relay Output
Switching Capacity250VAC/1A, 30VDC/2A
Operating Temperature-4º~131º F (-20º~55º C)
EnclosureIP66 Waterproof
Trigger OutputSPDT Relay output (NO/NC/COM)
