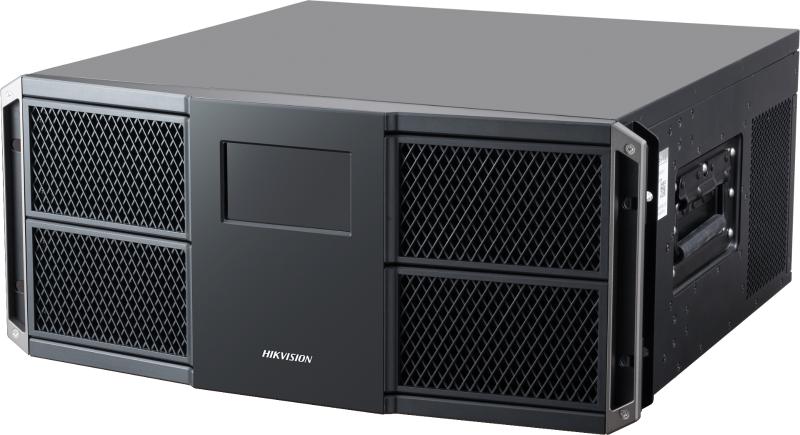

The DS-C30S video wall controller is a new-generation pure hardware image processing device based on FPGA. Compared with the traditional controller, the device has a brand-new system structure and adopts data dual exchange technology to support large-capacity data transmission and processing. With high image processing performance, the device supports the access and real- time processing of multi-channel high definition and ultra-high definition signals. Adopting the structure of main control board plus input and output board, which can be configured as required, the device supports multi-screen management. This product is mainly used in large-screen splicing control system and considered the core control device of the system.
Features and Functions

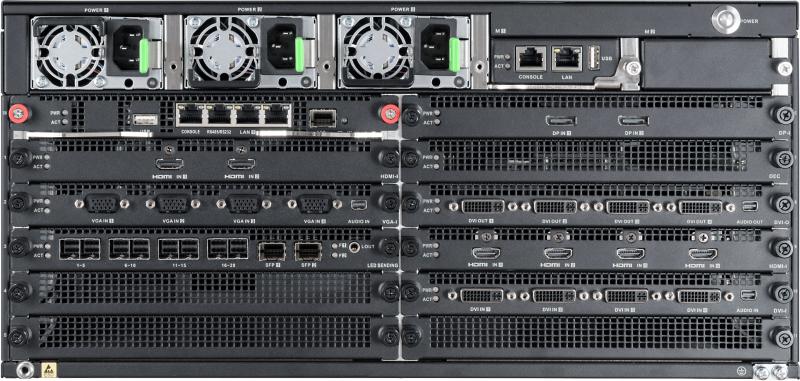

- Adopting the structure of main control board plus input and output board, and supporting mixed insertion of input and output boards, supports displaying multiple dynamic images on multiple display terminals at the same time.
- A signal source can be displayed on the M × N (M ≥ 1, N ≥ 1) display units.
- Multiple signal sources are supported, including VGA, DVI, HDMI, DP and IP. Supports 4K@60 Hz input, transmission and
- Supports decoding national standard The decoding board supports h.264/h.265 encoding format. Supports 16 channels 1080P@30 network signal decoding and displaying on the wall, and the local video file playback displaying on the wall.
- Supports 1/4/9/16 image division of a single output interface, and the full screen switching of sub windows.
- Up to 8+2 image layers can be displayed on one screen, including one caption layer and a background layer. The virtual LED font and the background color is adjustable. Supports the scrolling The resolution of background layer is up to 16384 × 8192.
- Users have the permission to manage the signal sources and video wall.
- Built-in matrix feature for opening a signal source on several windows
- Supports crossing-window video
- Supports SADP searching active IP address and resetting the password of administrator.
- Supports the adjustment of display wall connection to match the virtual display wall window of client software with the output interface of controller.
- The client software supports the preview of the signal displaying on the Users can conveniently call the signal.
- A single device supports 8 video wall
- Supports the front and rear ventilation of the chassis. Self- adaptive heat dissipation according to the temperature.
- Supports video wall echo and signal source list
- Fluent video output without frame extraction to guarantee the lossless output of 60 frames.
| DS-C30S | |||
| Model | DS-C30S-S11 | DS-C30S-S23 | |

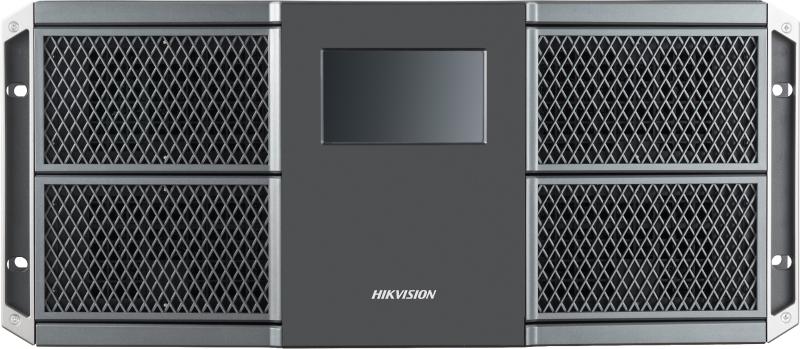

| Device Features | Screen Size | 105.42 mm (length）× 67.07 mm (width) | 105.42 mm (length) × 67.07 mm (width) |
| Screen Resolution | 480 × 272 | 480 × 272 | |
| Device Parameters | Power Interface | AC 100 ~ 240 V, 50/60 Hz | AC 100 ~ 240 V, 50/60 Hz |
| Dimension | 447 mm (depth) × 207.8 mm (height) × 442 mm (width) | 447 mm (depth) ×354.8 mm (height) × 442 mm (width) | |
| Chassis Height | 4.5 U | 8 U | |
Power Supply Number | 1+2 redundant power supplies | 2+1 redundant power supplies | |
| Power Waste | ≤600 W (full-loaded) | ≤1000 W (full-loaded) | |
| Chassis Parameters | Bus Type | 10 Gigabit network switching | 10 Gigabit network switching |
| Slot Number | sub board slot × 11, switching board slot × 1, main control board slot × 2 | sub board slot × 23, switching board slot × 1, main control board slot × 2 | |
| Management Network Interface | 2, 10 M/100 M/1000 M self-adaptive Ethernet interfaces 1, 10 Gigabit optical interface | 2, 10 M/100 M/1000 M self-adaptive Ethernet interfaces 1, 10 Gigabit optical interface | |
| Weight (full-loaded) | ≤40 KG (full-loaded) | ≤60 KG (full-loaded) | |
| Environment Parameters | Working Temperature | 0 ℃ ~ 50 ℃ | 0 ℃ ~ 50 ℃ |
| Working Humidity | 10 ~ 90% (non-condensing) | 10 ~ 90% (non-condensing) | |
Main Control Board （DS-C30S- MCU） | Serial Interface | RS232 | |
| USB | USB c | ||
| Network Interface | UTP Network Interface x 1 | ||
Switch Board （DS-C30S-SW） | Serial Interface Number | 3 | |
| Serial Interface | RS232, RS232, RS485 | ||
| USB | USB x 1 | ||
| Network Interface | UTP x 2, 10 Gigabit optical interfaces | ||
| Exchange Capability | total broadband 1.2Tb | ||
HDMI Input Board （DS-C30S- 04HI） | Input Resolution | 1024 x 768@60 Hz, 1280 x 1024@60 Hz, 1366 x 768@60 Hz, 1440 x 900@60 Hz, 1680 x 1050@60 Hz, 1280 x 960@60 Hz, 1600 x 1200@60 Hz, 1280 x 720P@50 Hz, 1280 x 720P@60 Hz, 1920 x 1080P@50 Hz, 1920 x 1080P@60 Hz, 1920 x 1200@60 Hz | |
Video Input Interface Number | 4 | ||
Video Input Interface Type | HDMI | ||
Audio Input Interface Number | 4 | ||
Audio Input Interface Type | miniDP to 4 x 3.5 mm | ||
VGA Input Board （DS-C30S- 04VI） | Input Resolution | 1024 × 768@60 Hz、1280 × 1024@60 Hz、1366 × 768@60 Hz、1440 × 900@60 Hz、 1680 × 1050@60 Hz、1280 × 960@60 Hz、1600 × 1200@60 Hz、1280 × 720P@50 Hz、 1280 × 720P@60 Hz、1920 × 1080P@50 Hz、1920 × 1080P@60 Hz、1920 × 1200@60 Hz | |
Video Input Interface Number | 4 | ||
Video Input Interface Type | VGA | ||
Audio Input Interface Number | 4 | ||
Audio Input Interface Type | miniDP to 4 x 3.5 mm | ||
DVI Input Board （DS-C30S- 04DI） | Input Resolution | 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720P@50 Hz, 1280 × 720P@60 Hz, 1920×1080P@50 Hz, 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz | |
Video Input Interface Number | 4 | ||
Video Input Interface Type | DVI-D | ||
Audio Input Interface Number | 4 | |
Audio Input Interface Type | miniDP to 4 x 3.5 mm | |
HDMI UHD Input Board （DS-C30S- 02HI/4K） |
Input Resolution | 1920 x 1080P@60 Hz, 1920 x 1200@60 Hz, 3840 x 2160@30 Hz, 4096 x 2160@30 Hz, 3840 x 2160@60 Hz (only supported by interface 1), 4096 x 2160@60 Hz (only supported by interface 1) Supports custom resolution: width 1920 ~ 4092, height 1080 ~ 2160, frame rate 30/60. Only supports frame rate of 60 when the width is less than 2560 or the height is less than 1940. |
Video Input Interface Number | 2 | |
Video Input Interface Type | HDMI | |
DP Input Board （DS-C30S- 02DPI/4K） |
Input Resolution | 1920 x 1080P@50 Hz, 1920 x 1080P@60 Hz, 1920 x 1200@60 Hz, 3840 x 2160@30 Hz, 3840 x 2160@60 Hz (only supported by interface 1), 4096 x 2160@30 Hz, 4096 x 2160@60 Hz (only supported by interface 1) Supports custom resolution: width 1920 ~ 4092, height 1080 ~ 2160, frame rate 30/60. Only supports frame rate of 60 when the width is less than 2560 or the height is less than 1940. |
Video Input Interface Number | 2 | |
Video Input Interface Type | DP | |
DVI Output Board （DS-C30S- 04DO） |
Output Resolution | 1920 x 1200@60 HZ, 1600 x 1200@60 Hz, 1920 x 1080@60 Hz, 1680 x 1050@60 Hz, 1280 x 720@60 Hz, 1280 x 1024@60 Hz, 1024 x 768@60 Hz Supports LED screen and custom resolution output. Can be configured with maximum area length x width less than 260 W. |
Video Output Interface Number | 4 | |
Video Output Interface Type | DVI-D | |
Audio Output Interface Number | 4 | |
Audio Output Interface Number | miniDP to 4 x 3.5 mm | |
HDMI Output Board （DS-C30S- 04HO） |
Output Resolution | 1920 x 1200@60 HZ, 1600 x 1200@60 Hz, 1920 x 1080@60 Hz, 1680 x 1050@60 Hz, 1280 x 720@60 Hz, 1280 x 1024@60 Hz, 1024 x 768@60 Hz Supports LED screen and custom resolution output. Can be configured with maximum area length x width less than 260 W. |
Video Output Interface Number | 4 | |
Video Output Interface Type | HDMI | |
| LED Sending Card | Output Resolution | width (144 ~ 8192), height (144 ~ 4320), the total pixel point should be less than 1040 W |
Output Board （DS-C30S- L104） | Video Output Interface Number | 4 x miniSAS to 20 x 1G electrical interfaces, 2 x 10G optical interfaces |
Video Output Interface Type | miniSAS to 5 x RJ45, 10G optical port | |
Audio Output Interface Number | 1 | |
Audio Output Interface Type | 3.5 mm audio terminal | |
Decoding Board （DS-C30S-DEC） | Audio Decoding Channel Number | 32 |
Audio Decoding Performance | audio encoding format G711-A, G711-U, G722.1, G726-16/U/A, MPEG, AAC-LC | |
Audio Decoding Format | audio encoding format G711-A, G711-U, G722.1, G726-16/U/A, MPEG, AAC-LC | |
Decoding Resolution | Supports decoding up to 1600W pixels (one channel) | |
| Decoding Channel | Supports Up to 32 decoding channels. | |
Decoding Performance | A single board supports 16 x 1080P30, 32 x 720P@30. Supports decoding up to 1600W pixels. |
