TRENDNET - TEW-AO46S - 4/6 dBi Surge Outdoor Dual Band Omni Antenna Kit
Part number:
TEW-AO46S
Price:

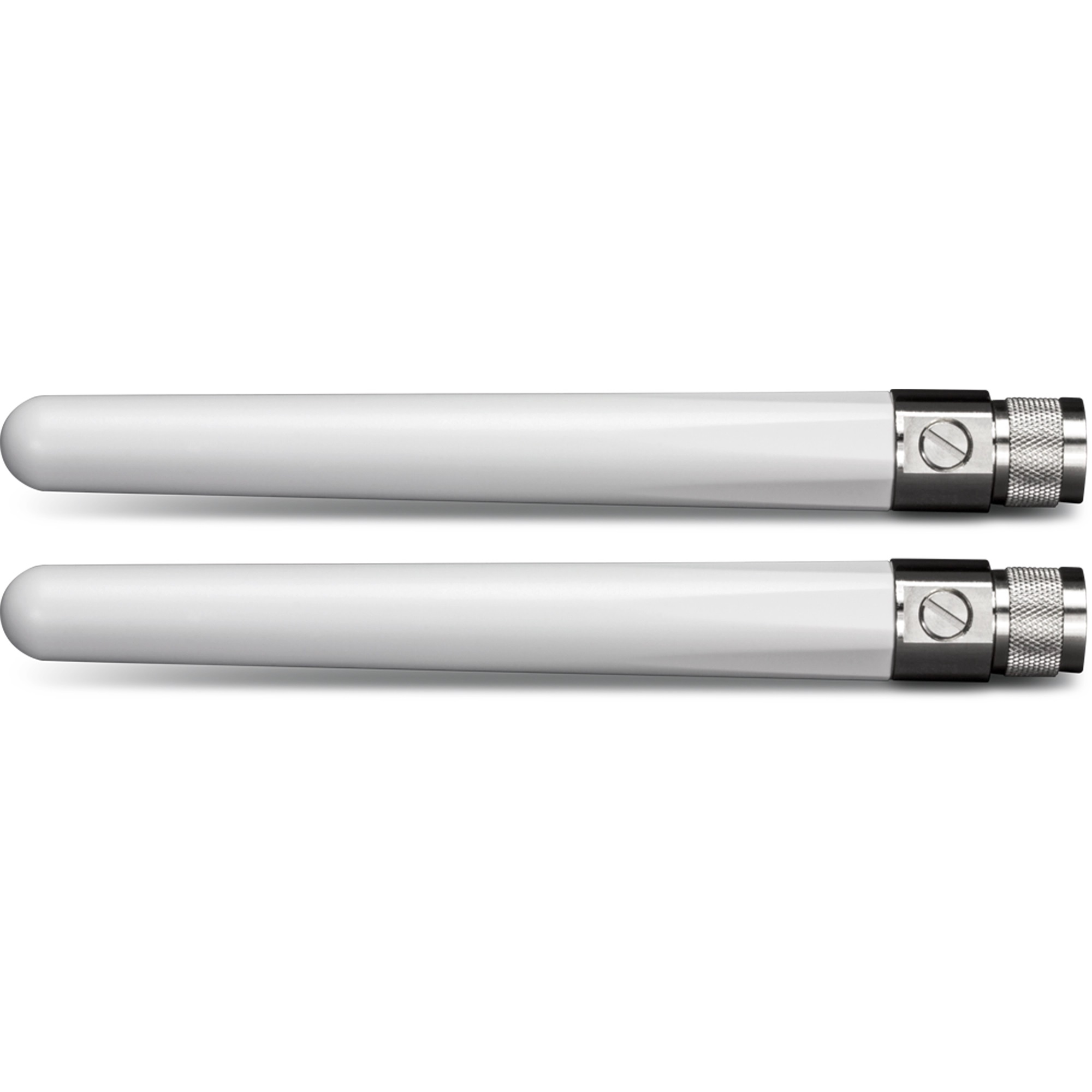

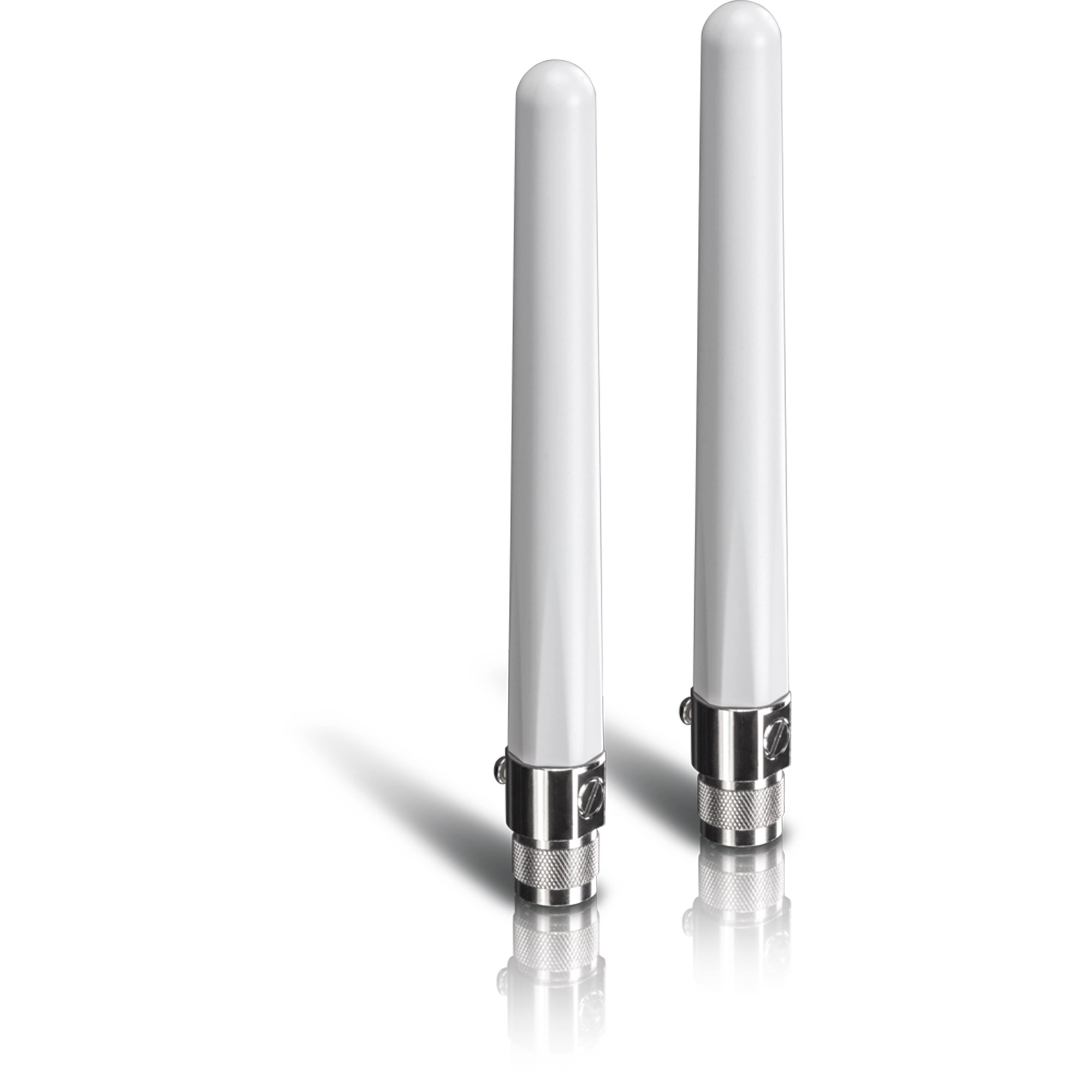

TRENDnet's 4/6 dBi Surge Outdoor Dual Band Omni Antenna Kit, model TEW-AO46S, comes with a pair of high performance outdoor antennas which support 2.4 and 5 GHz radio transmissions. The omni-directional antennas provide blanket wireless coverage, have an N-Type male connector, and feature a replaceable surge protection fuse. The antennas work with 802.11ac/n/g/b/a routers and access points with N-Type female connectors.



Features:

  • Pair of outdoor omni-directional dual band antennas
  • 2.4 GHz: 4 dBi
  • 5 GHz: 6 dBi
  • Replaceable surge protection fuse

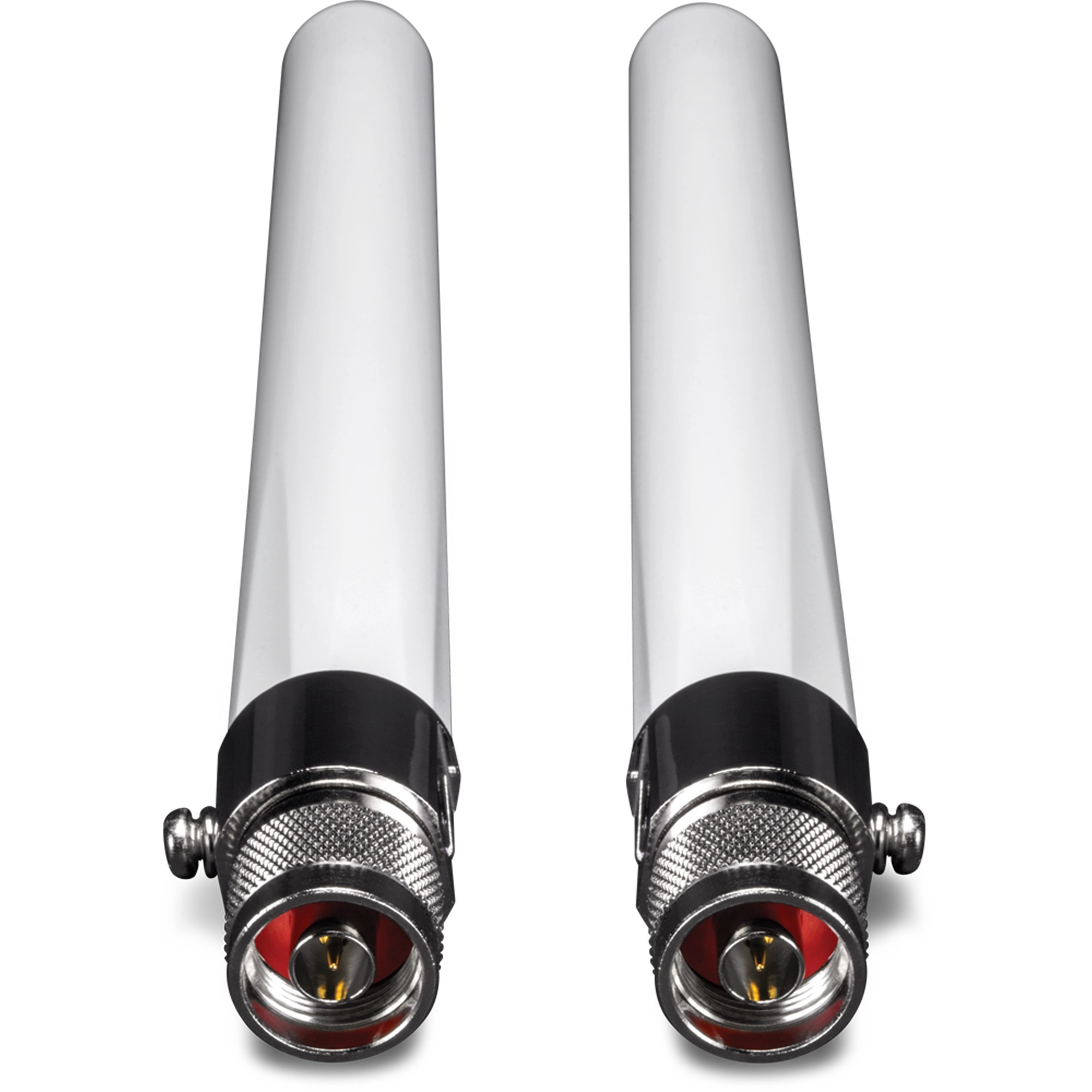

  • N-Type male connector
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
  • NDAA / TAA compliant (U.S. and Canada only)
Antenna
  • Omni-directional dual band (2.4 + 5 GHz)
Frequency
  • 2.4 GHz: 2.4 - 2.5 GHz
  • 5 GHz: 5.15 – 5.88 GHz
Peak Gain
  • 2.4 GHz: 4 dBi (max.)
  • 5 GHz: 6 dBi (max.)
Polarization
  • Linear, Vertical
Connector type
  • N-Type male
Half-Power Beam Width (HPBW)
  • Horizontal: 360°
  • Vertical: 30°
Voltage Standing Wave Ratio (VSWR)
  • 2.0 max.: 1
Nominal Input Impedance
  • 50 Ohms
Power Handing
  • 2 Watts
Surge Protection
  • Replaceable surge protection fuse
  • Grounding point
Operating Temperature
  • -40 – 70 °C (-40 – 158 °F)
Operating Humidity
  • Max. 95 % non-condensing
Compatibility
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
Dimensions
  • Individual antenna: 20 x 220 mm (0.8 x 8.7 in.)
Weight
  • Both antennas: 224 g (8 oz.)
  • Individual antenna: 112 g (4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TEW-AO46S (2 x antennas)
  • Quick Installation Guide
