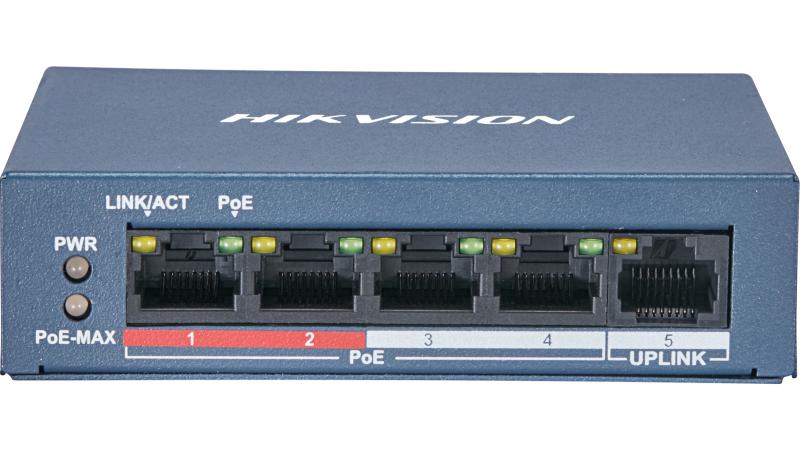

Hikvision - DS-3E0105P-E/M(B) - 4 Port Fast Ethernet Unmanaged POE Switch
Part number:
DS-3E0105P-E/M(B)
Price:
4 Port Fast Ethernet Unmanaged POE Switch
Features:
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
| Model | DS-3E0105P-E/M(B) | |
| Shell | Metal material | |
| Net Weight | 0.2 kg (0.4 lb) | |
| Gross Weight | 0.48 kg (1.06 lb) | |
General | Dimensions (W × H × D) | 105 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 V DC, 0.8 A | |
| Max. Power Consumption | 38 W | |
| Power Consumption in Idle | 3 W | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Surge Protection | 6 kV | |
Network Parameters | Ports | 4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K | |
| Switching Capacity | 1 Gbps | |
| Packet Forwarding Rate | 0.74 Mpps | |
| Internal Cache | 768 Kbits | |
PoE Power Supply | PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) | |
| PoE Port | PoE: Ports 1 to 4 | |
| Max. Port Power | 30 W | |
| PoE Power Budget | 35 W | |
Dialing Function | Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
Approval |
EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) | |
Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) | |
