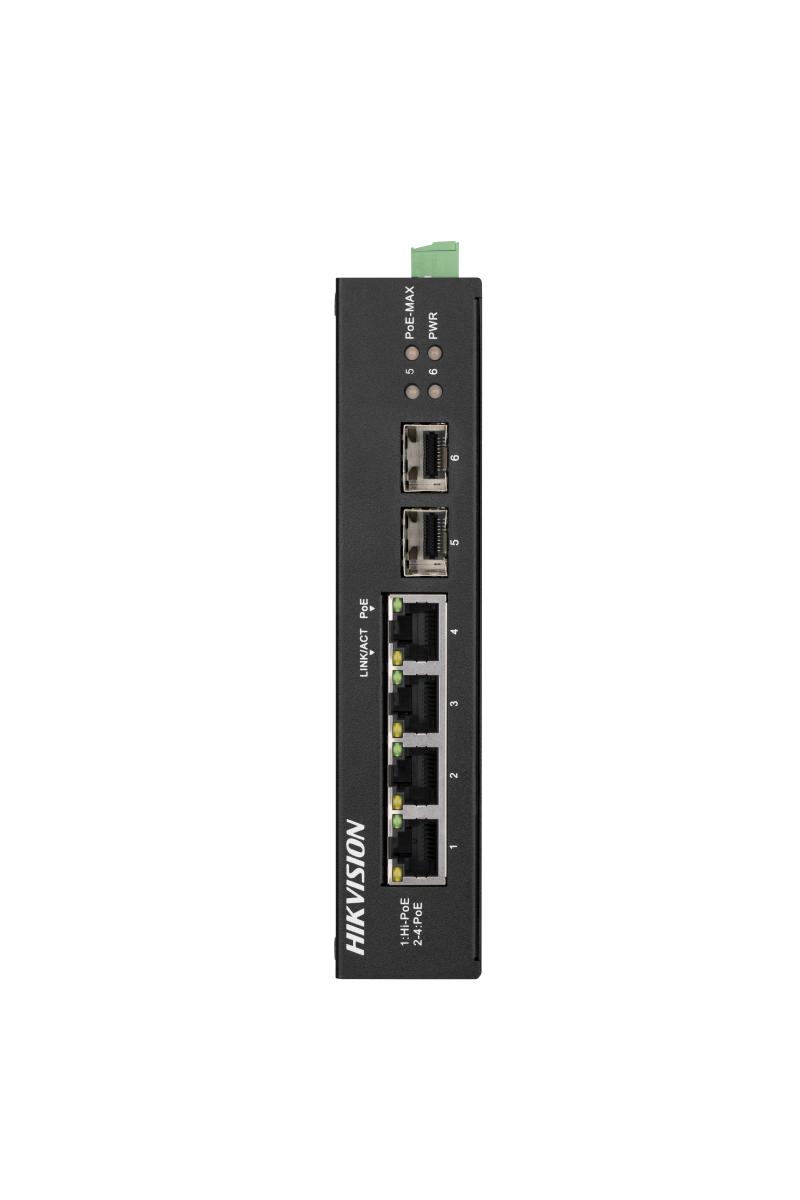

4 Port Gigabit Unmanaged Harsh POE Switch. DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing PoE power supply technology and wider temperature (- 30 °C to 65 °C) design on the basis of network access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog functions.
Features:
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 °C to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.94 kg (2.07 lb) |
| Dimensions (W × H × D) | 158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'') |
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149°F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 V DC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Installation Mode | Desk-Mounted,Rail |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 4 × Gigabit PoE port,2 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.928 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Port 1 PoE: Ports 2 to 4 |
| Max. Port Power | Port 1: 60 W Ports 2 to 4: 30 W |
| PoE Power Budget | 65 W |
| Dialing Function | |
| Long Range | Ports 3 to 4: up to 300 m Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| Approval | |
EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3- 2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE- LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
