TRENDNET - TU3-H4 - 4-Port USB 3.0 Hub

Name: TRENDNET - TU3-H4 - 4-Port USB 3.0 Hub
Brand: Trendnet
SKU: TU3-H4

Part number:

TU3-H4

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet's 4-Port USB 3.0 Hub, model TU3-H4, instantly adds four 5Gbps SuperSpeed USB 3.0 ports to a computer. Easy installation – simply plug in flash drives, printers, scanners and other USB 3.0 devices at speeds ten times faster than a USB 2.0 connection. The TU3-H4 USB 3.0 hub is also backwards compatible with USB 2.0 and 1.1 devices.

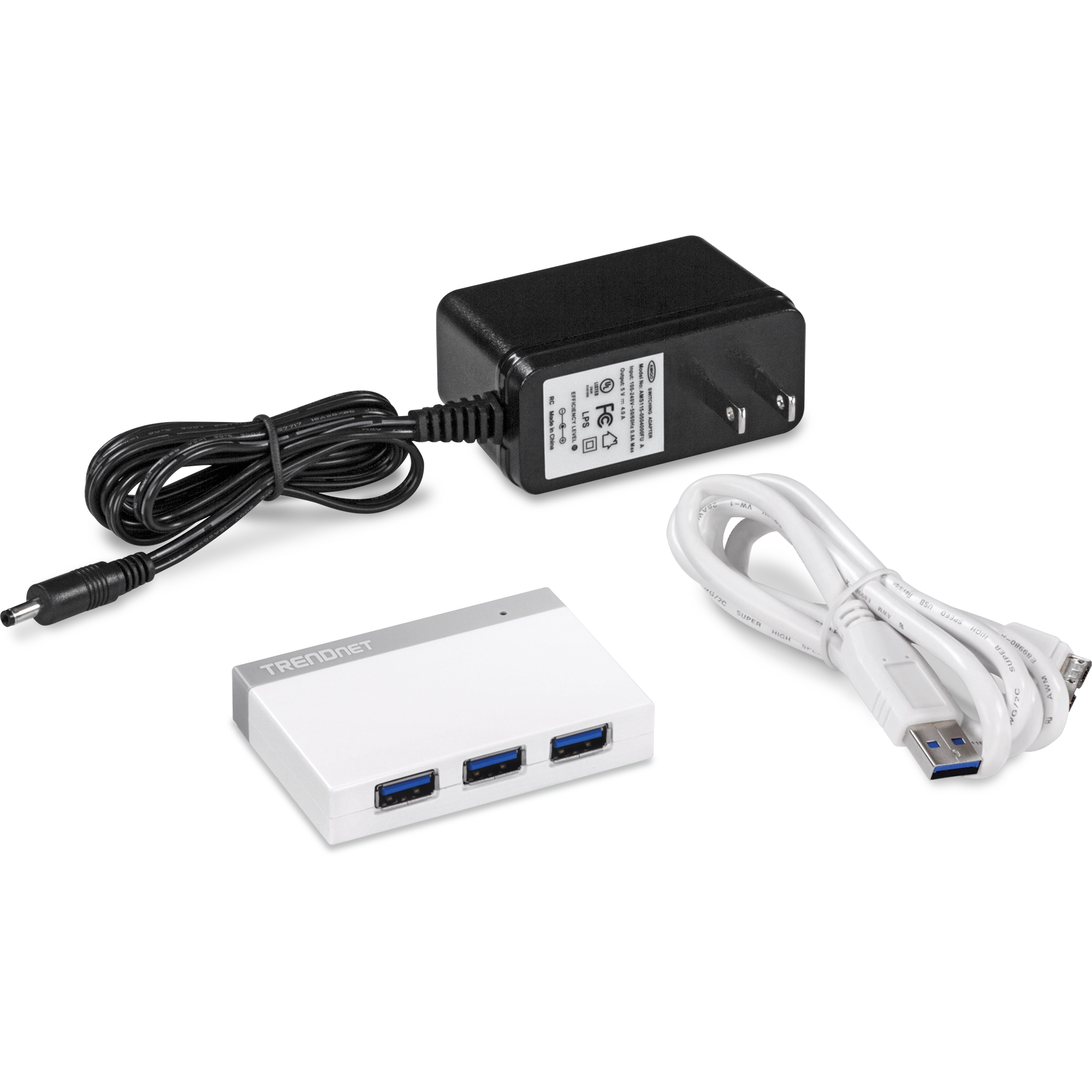

Included Power Adapter

Power adapter provides a total power of 20W.

USB 3.0

Easily connect up to four USB 3.0 devices to a USB 3.0 enabled desktop or notebook PC.

USB Cable

Included 1m (3 ft.) USB 3.0 cable accommodates most installation scenarios.

Features:

Easy installation
Add four SuperSpeed 5Gbps USB 3.0 ports
Convenient 1m (3 ft.) USB 3.0 cable
Backward compatible with USB 2.0 and 1.1 devices
Full power for all USB ports with included power adapter
NDAA compliant

Technical Specifications
Standards	USB 3.0 USB 2.0 USB 1.1
Interfaces	4 x Type-A USB 3.0 ports 1 x Type-B micro USB 3.0 port Power port LED indicator
Maximum Data Rate	Up to 5Gbps
Special Features	Compact form factor Flexible USB 3.0 cable Full power to connected devices
Power adapter	Input: 100-240V, 50/60Hz Output: 5V DC, 4A Consumption: Max. 20 Watts
USB bus powered	Output: 5V DC, 0.9A Consumption: Max. 4.5 Watts
USB Charging	Standard Mode Max. 0.9A total for all USB ports Fast Charge Mode (with optional power adapter) Max. 1.5A per port for Battery Charging 1.2 compliant devices Max. 2.4A per port for Smartphone/Tablet
Operating Temperature	0° - 40° C (32° - 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	75 x 51 x 14.5mm (2.95 x 2.01 x 0.57 in.)
Weight	42g (1.48 oz.)
Warranty	2 years
