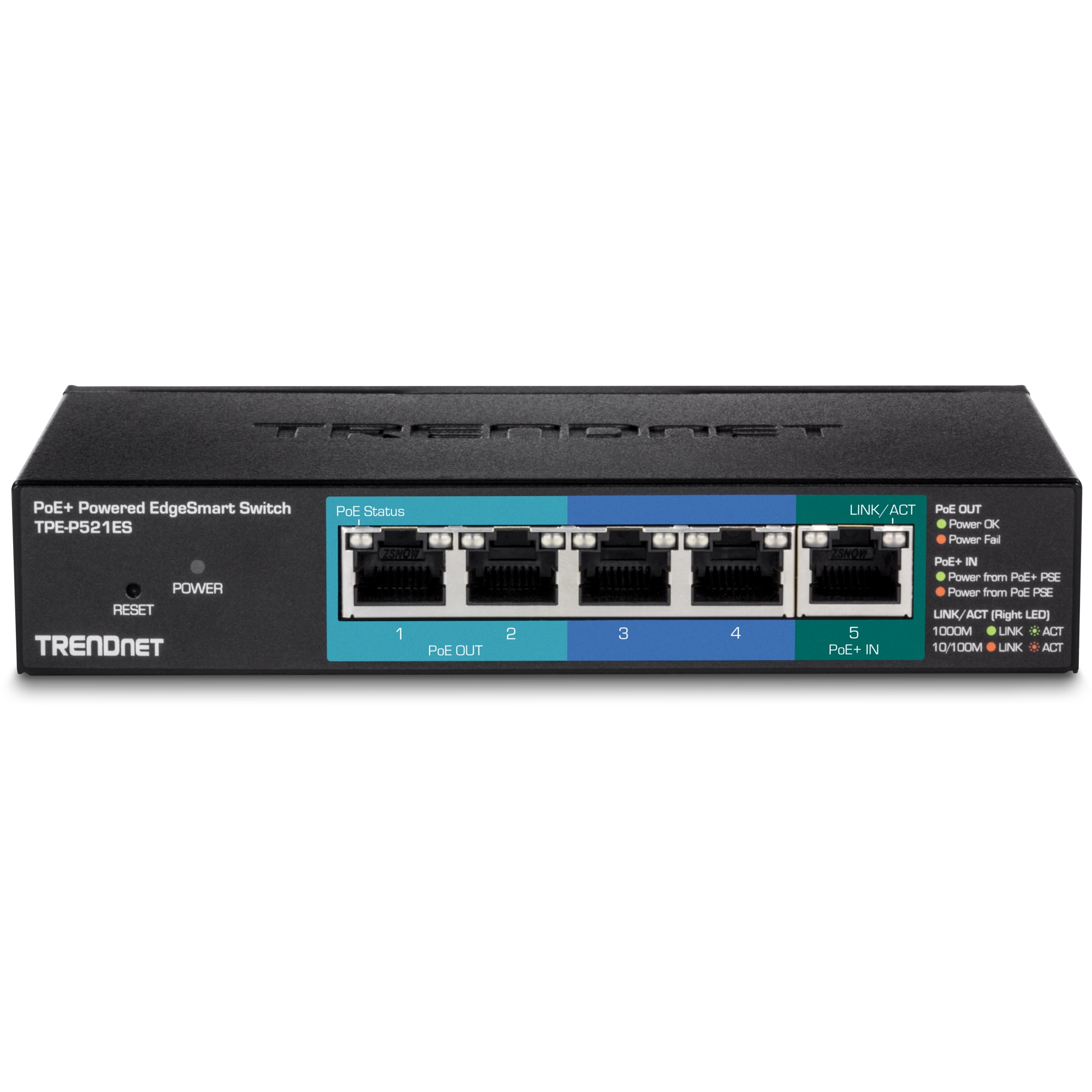

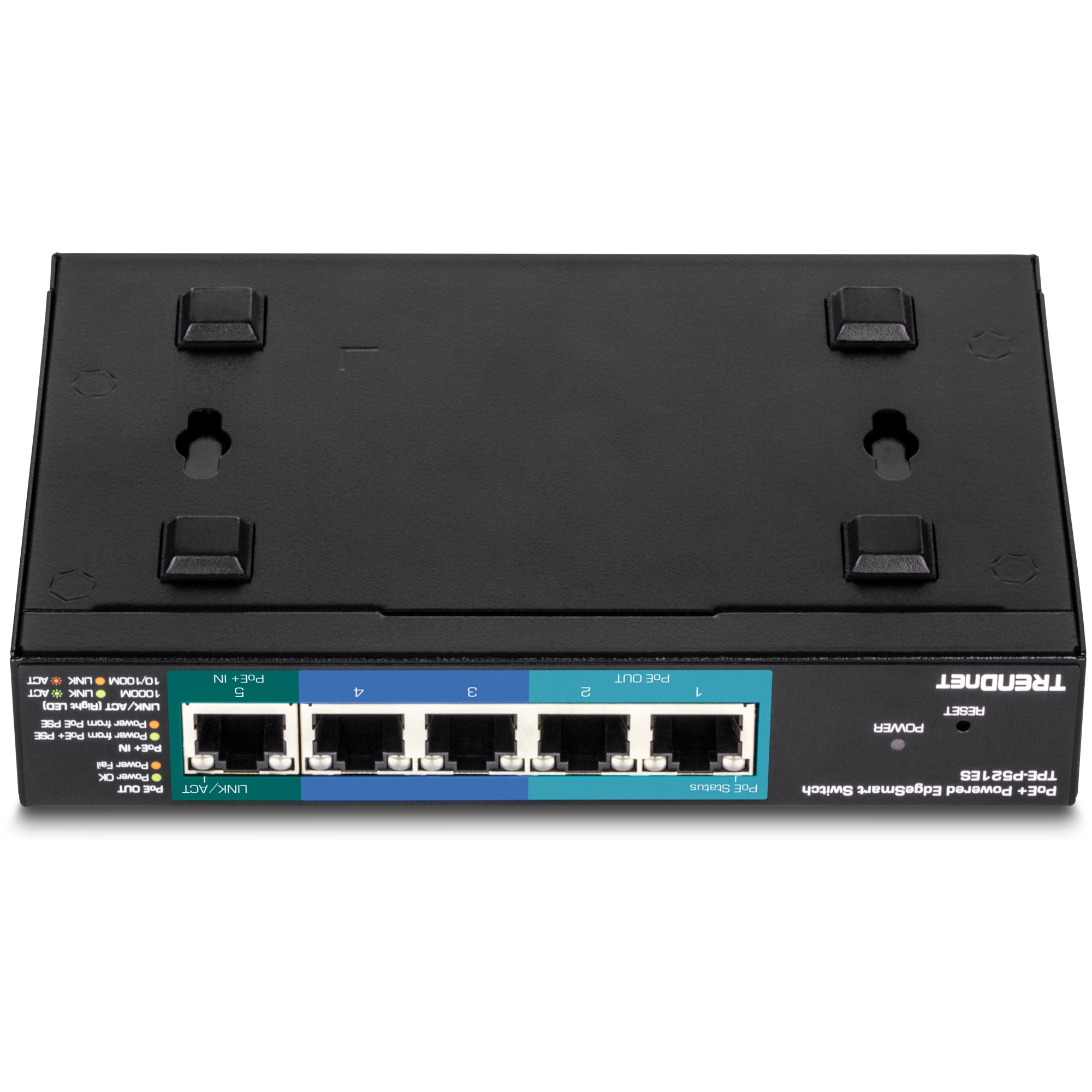

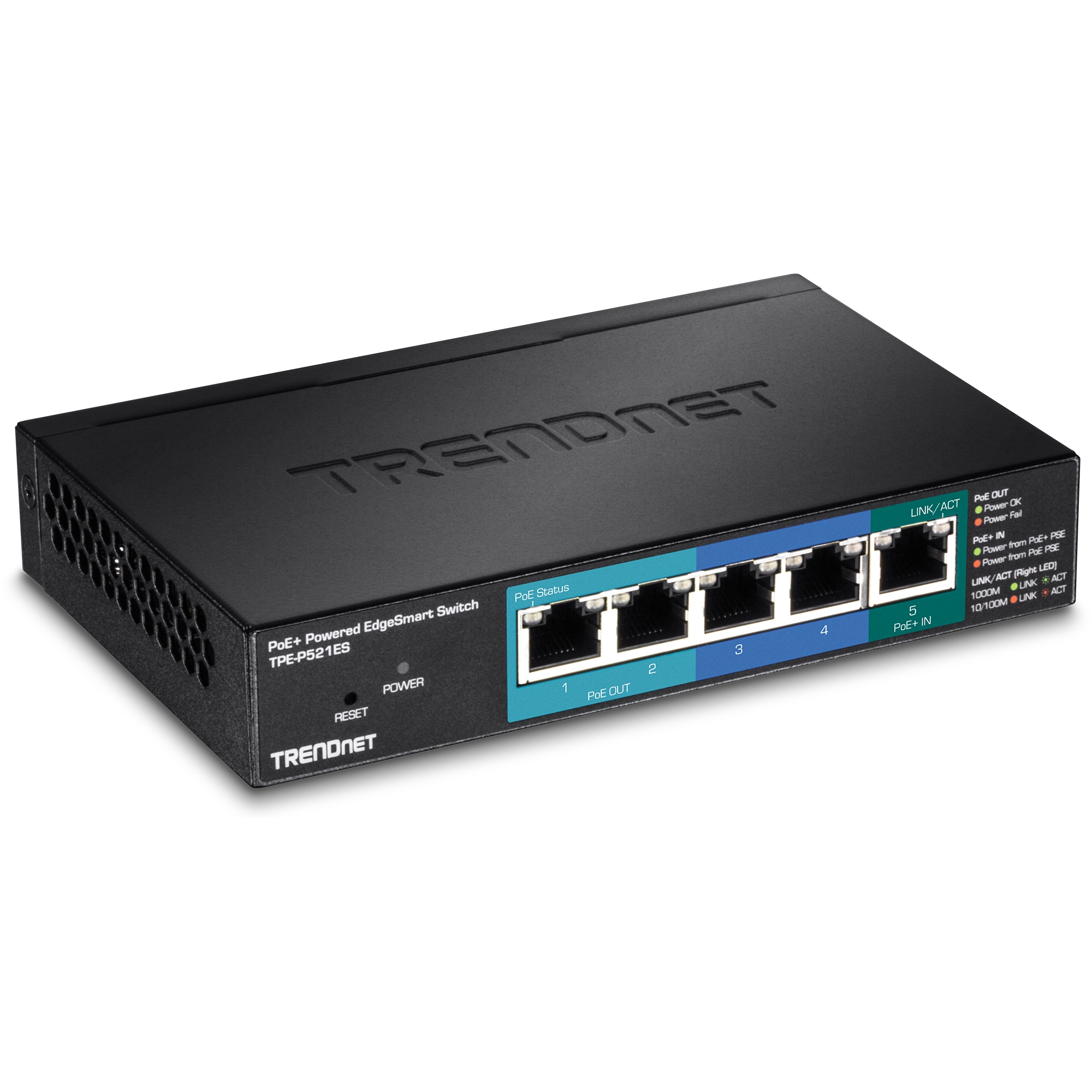

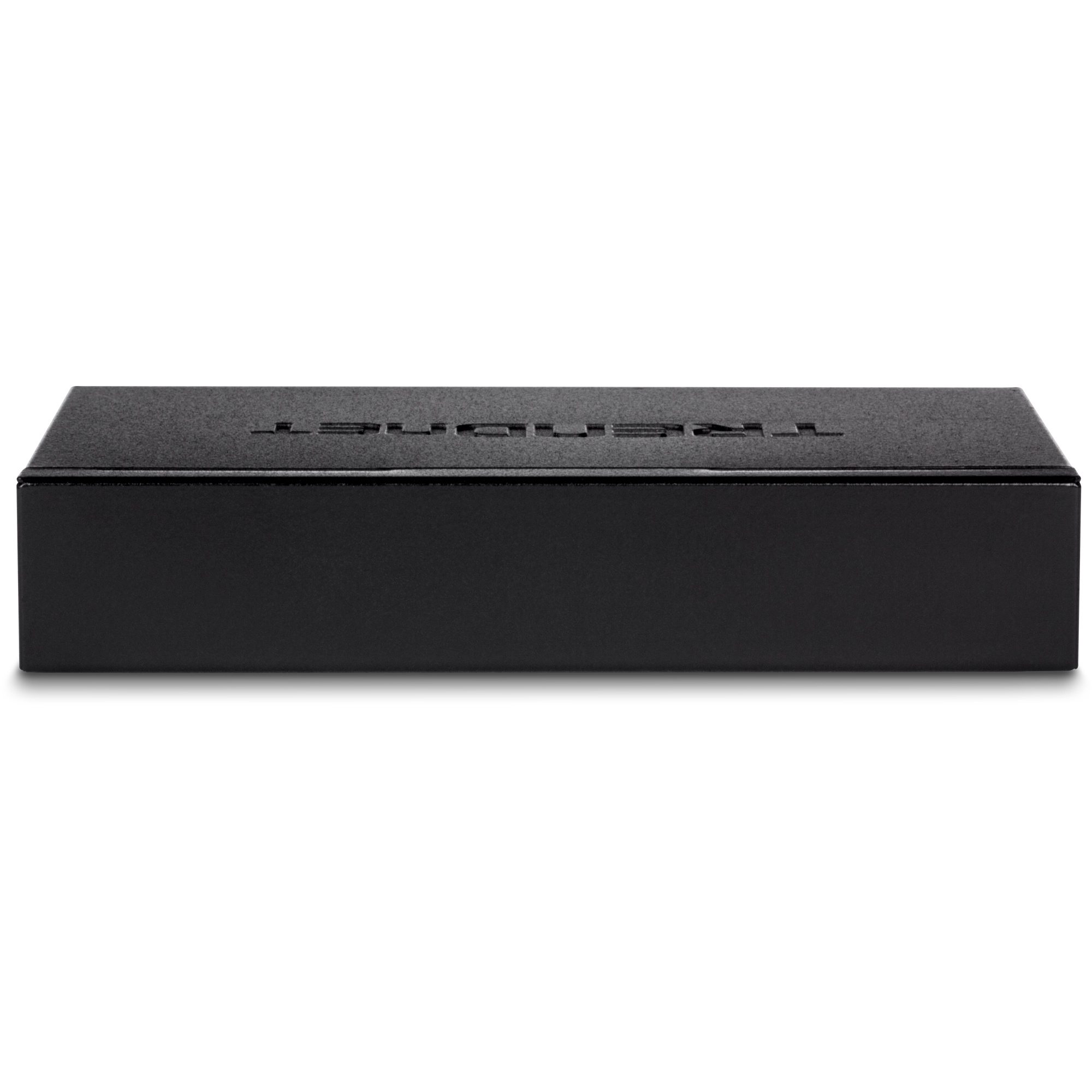

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.

EdgeSmart Management

Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.

PoE+ Powered

No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras

Features:

• 1 x Gigabit PoE+ input port
• 2 x Gigabit PoE output ports
• 2 x Gigabit ports
• 18W PoE power budget
• Easy to use web-based management interface
• Supports static link aggregation, VLAN, QoS, STP, RSTP and IGMP Snooping
• Voice VLAN for VoIP applications
• Bandwidth control per port
• 10Gbps switching capacity
• 802.1p / DSCP / Queue Scheduling (SP/WRR) QoS support
• Compact fanless design
• Wall mountable metal housing
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty*
