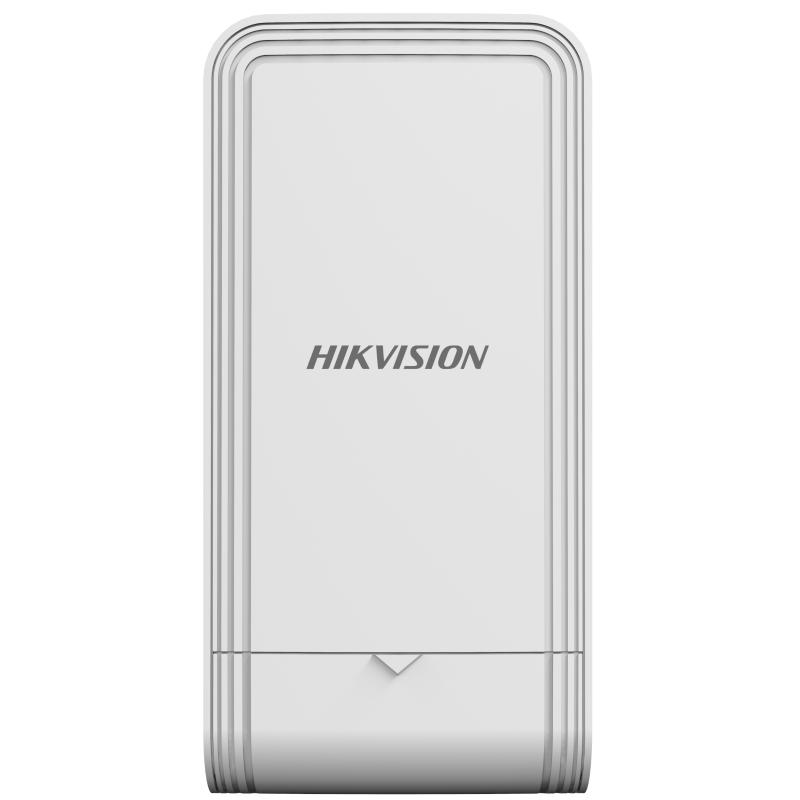

5Ghz 867Mbps 5km Outdoor Wireless CPE. The wireless bridge can be applied in industries, such as wireless video security, railway, transportation, power and other industries, wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information construction, and wireless network coverage. The long-distance transmission of the device can guarantee multi-channel HD video transmission.
Features:
- All gigabit LAN ports
- TDMA supported
- Quick match through DIP switch
- Visualized topology management
- Up to 5 km wireless transmission distance
| Wireless Parameter | |
Max. Transmission Rate of Air Interface | ≤ 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5850 MHz |
| Antenna Gain | 12 dBi |
| Antenna Angle | (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° |
| Transmitting Power | 22 dBm (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -58±2 dBm@AC80-MCS9, -84±2dBm@AC80-MCS0 |
Throughput Rate | Point to point: Support up to 8-ch IPC (2MP) in Max. 5 KM distance and Max. 40 Mbps bandwidth; Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth; Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 35°, Max. 1 to 8 PTMP connection |
| Hardware Parameter | |
| Network Interface | 2 × 1000 Mbps RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, Signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12-24 VDC/1 A Passive PoE |
| Software Function | |
| Application Function | TDMA, DFS, TPC, IFM, IPM |
| Channel Width | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | Wireless network name hidden |
| Management Method | Web, iVMS-4200, HCP |
| Upgrade | Web, iVMS-4200, HCP |
| System Log | Syslog, Control center information |
| General | |
| Product Dimensions (W × H × D) | 90.8 mm × 57.8 mm × 187.8 mm (3.57'' × 2.28'' × 7.39'') |
| Package Dimensions (W × H × D) | 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") |
| Net Weight | 0.307 kg (0.677 lb) |
| Gross Weight | 0.807 kg (1.779 lb) |
| Packing List | Wireless Bridge × 1, Power Adapter (12 VDC, 1 A) × 1, Binding Tape × 2, Quick Start Guide ×1 |
| Packing Method | Single unit packing |
| Working Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole Mounting |
| Ingress Protection | IP55 |
| Power Consumption | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Approval | |
EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17, FCC Part 15.247 |
