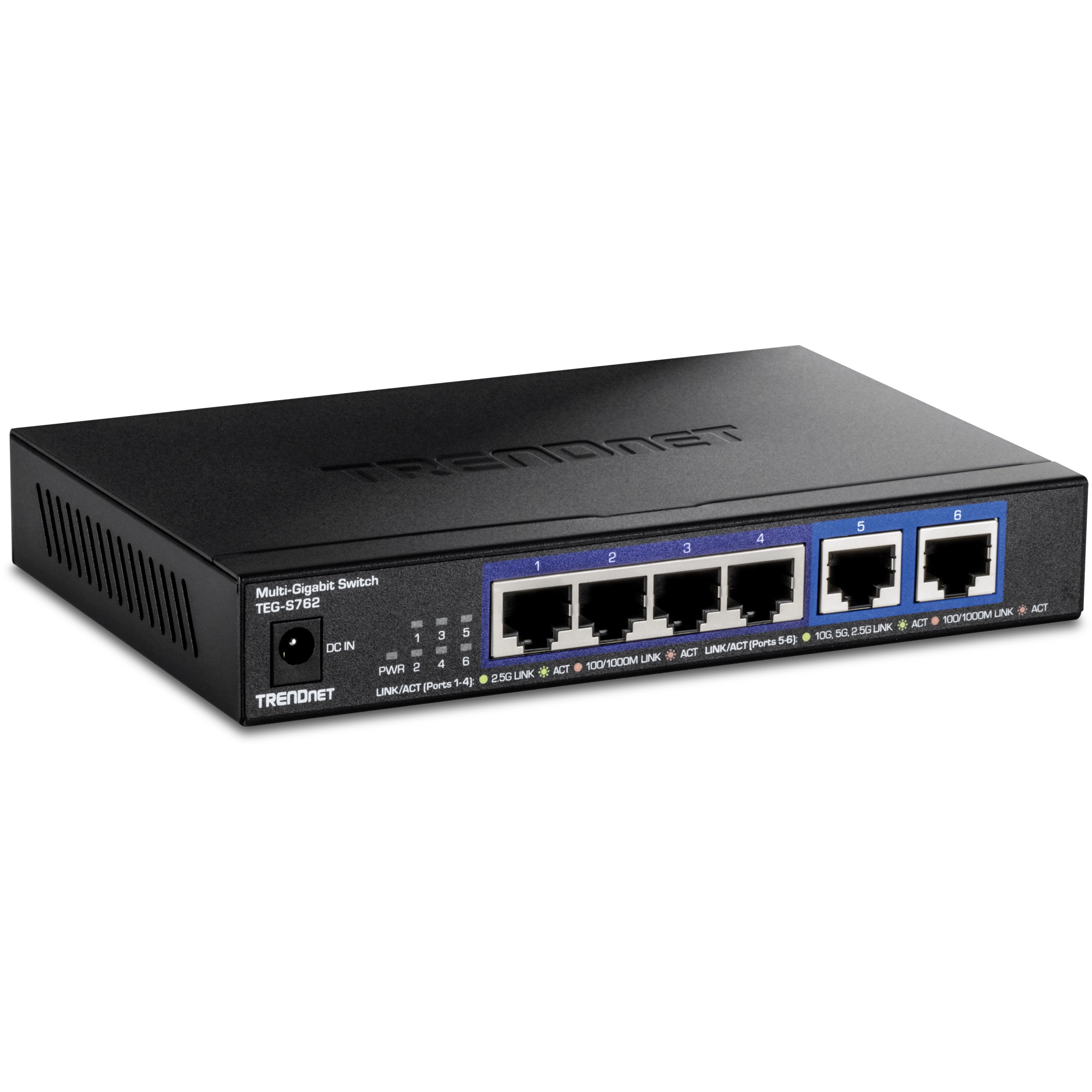

TRENDnet’s 6-Port Multi-Gig Switch, model TEG-S762, is a multi-gig switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

10G Ports

Offers two 10G RJ-45 ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability

2.5G Ports

Equipped with four 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

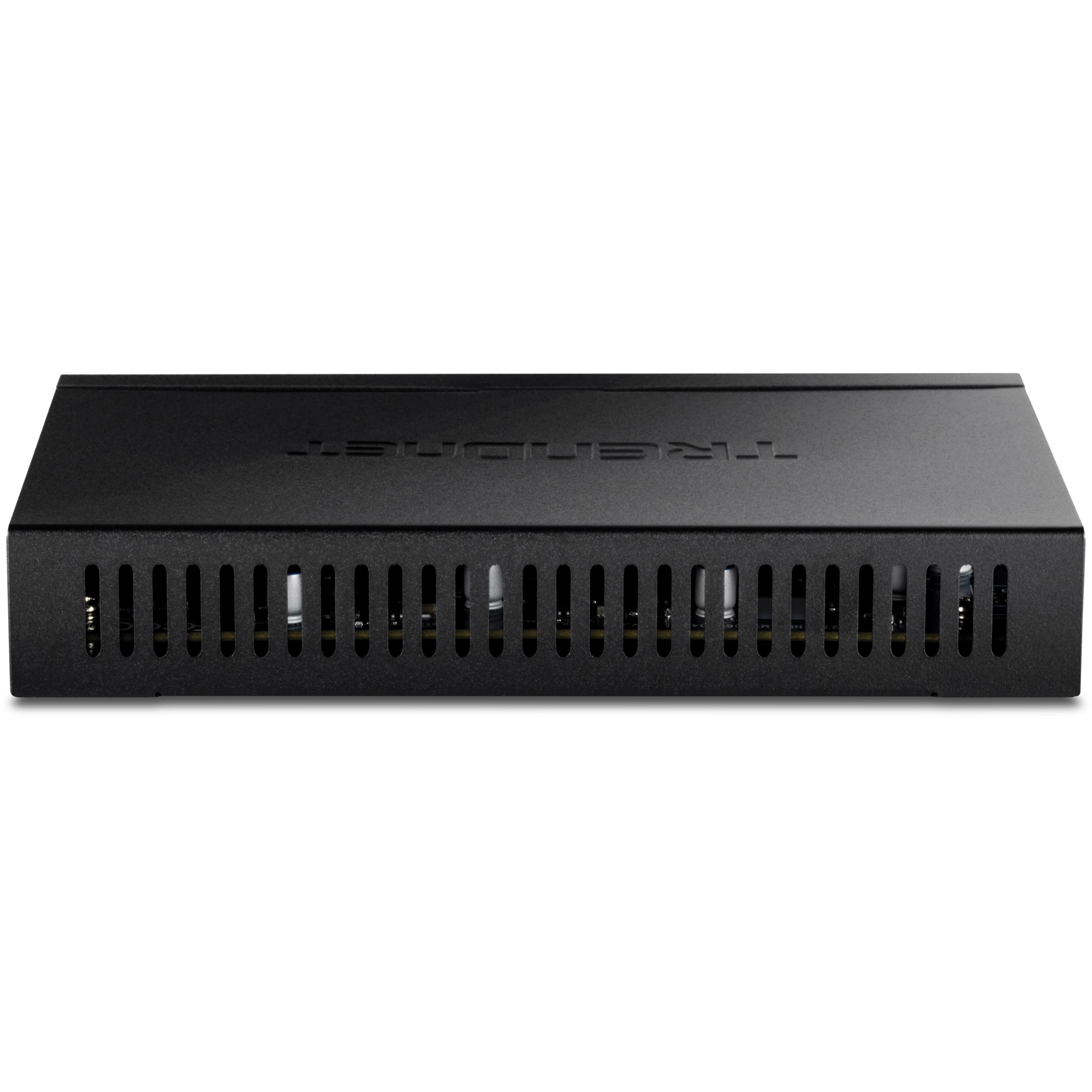

Fanless

Convenient fanless design lowers unnecessary energy consumption and costs, and eliminates distracting operating noise

Network Ports

Provides 4 x 2.5Gports and 2 x 10G ports for high-speed network connections

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Housing Design

Sturdy metal housing on the 10 gigabit Ethernet switch / 2.5G switch combo is also compact and lightweight

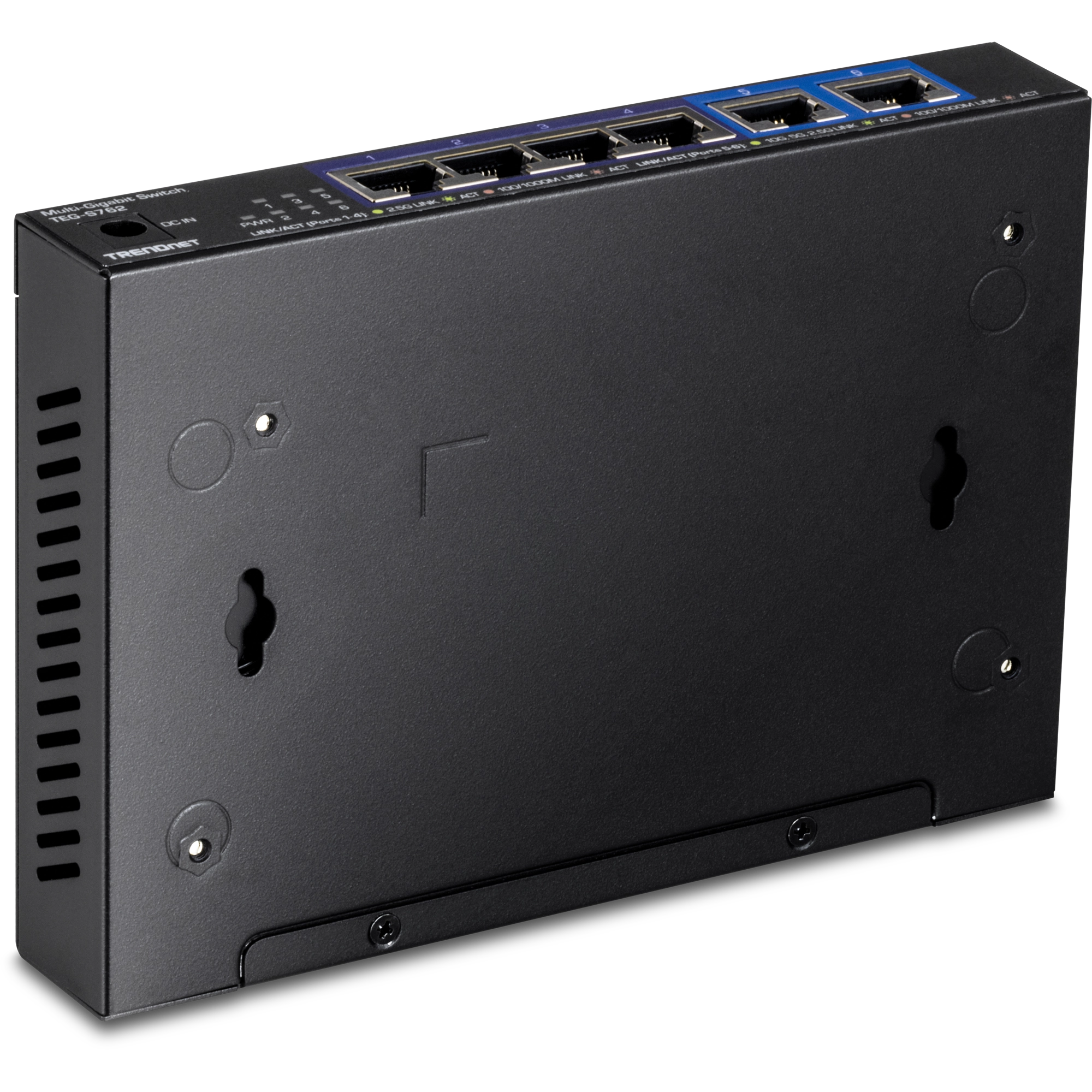

Wall Mountable

Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility

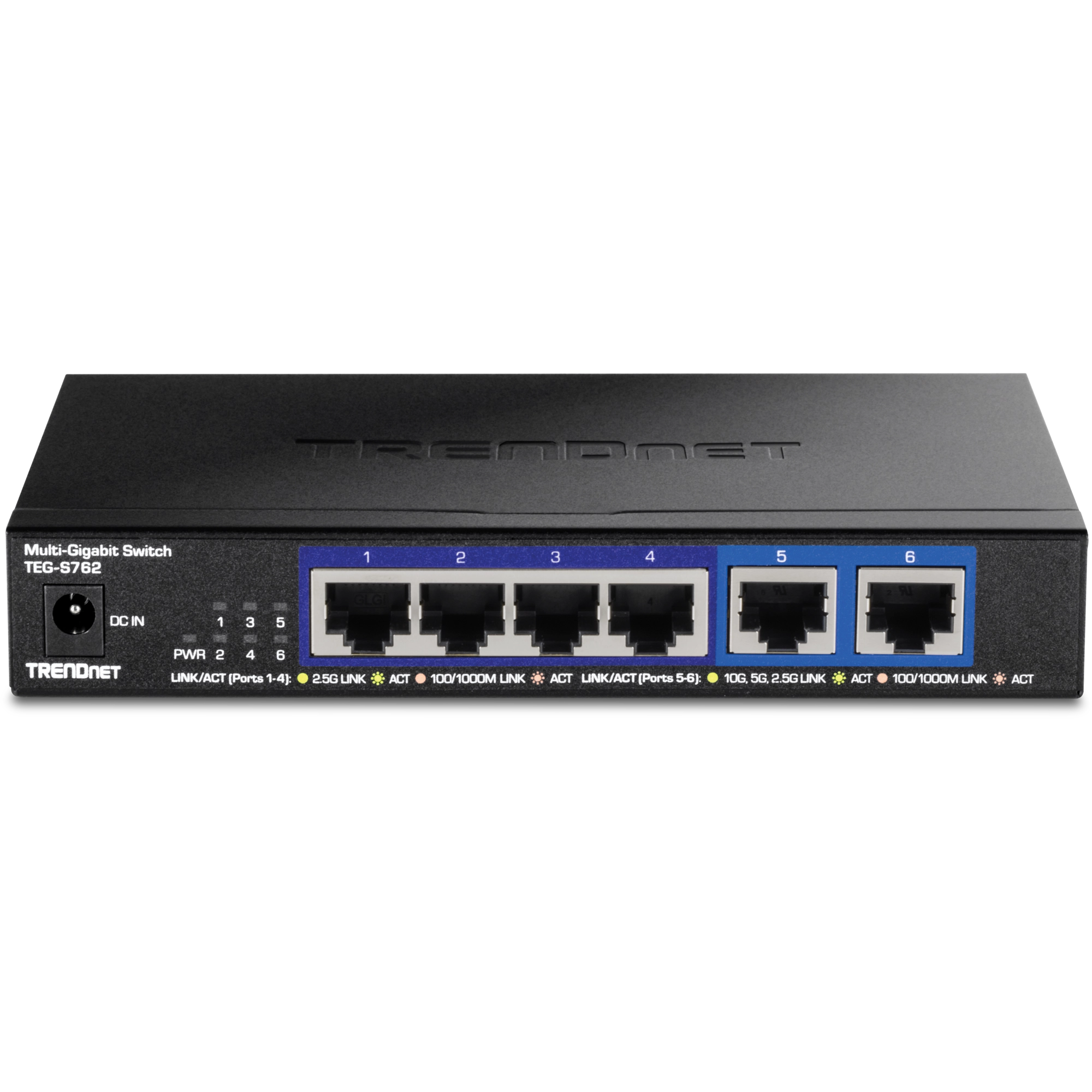

LED Indicators

LED indicators conveniently convey port status on the multi-gig switch

Features:

• 4 x 2.5G RJ-45 ports
• 2 x 10G RJ-45 ports
• Compatible with existing Cat5e or better cabling
• 60Gbps switching capacity
• Fanless design for silent operation
• Wall mountable
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty*
