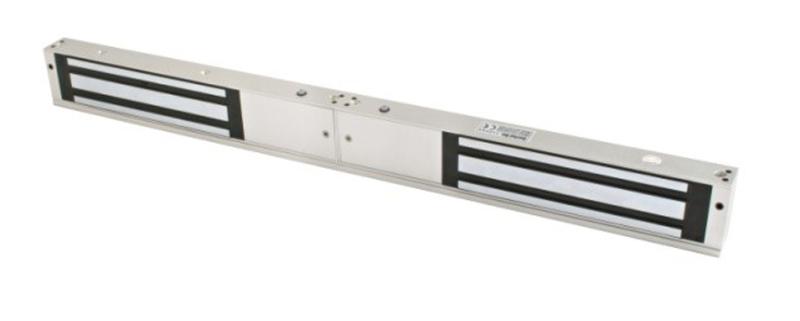

The magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 272 kg (599.8 lbs) × 2. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing.
Features:
- The magnetic lock supports static linear thrust of 272 kg (599.8 lbs) × 2
- Power supply can be customized to be 12 VDC or 24 VDC, (default voltage is 12 VDC)
- Equipped with internal voltage dependent resistor (MOV)
- LED indicator displays door lock status
- Abrasion-proof materials
| Specification | |
| General | |
| Indicator | Green: Locked Red: Unlocked |
| Power supply | 12 VDC/500 mA 24 VDC/250 mA |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95% (relative Humidity) |
| Dimensions | Lock body: 480 mm × 49 mm × 25.5 mm (18.90" × 1.93" × 1.00") Armature Plate: 180 mm × 38 mm × 11 mm (7.1" × 1.5" × 0.4" ) |
| Weight | 4.2 kg (9.3 lb) |
Material | Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Zinc with Electroplating Operated Armature Plate: eco-friendly Zinc with Electroplating Operated |
| Thrust | Max. 272 kg (599.8 lb) × 2 linear thrust |
| Door type | Single leaf, double leaf, wooden door, glass door, metal door, fireproof door |
| Signal output | Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
