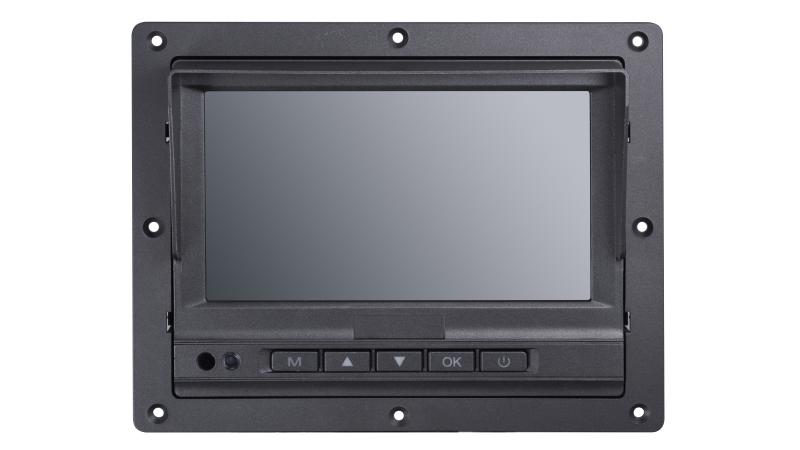

Hikvision - DS-MP1302/Bracket(AE) - 7-inch Touchscreen LCD Monitor
Part number:
DS-MP1302/Bracket(AE)
Price:
7-inch Touchscreen LCD Monitor
Features:
- 7-inch TFT LCD touch screen
- Real-time live view of the rear-view camera when the vehicle is backing off and other connected camera
- Support 3-ch video input including one channel connecting to the mobile DVR, one channel connecting to the rear-view camera and one reserved channel connecting to the other camera
- Support 2-ch alarm input
| Model | DS-MP1302 | |
Screen | Size | 7" TFT-LCD |
| Resolution | 800 × 480 RGB | |
| Backlight | LED | |
| Brightness | Adjustable | |
| Visual angle | 130° | |
| System | PAL/NTSC | |
| Display mode | Mode 1: Manual switch Mode 2: Auto switch | |
| Touch screen | Support | |
Physical buttons |
5 buttons | M (Short press to switch and long press to pop up the menu.) ▲ (Volume up) ▼ (Volume down) OK Power switch |
Video input | Mobile DVR video output | 1-ch. 2*7 plug, connecting to the mobile DVR. |
| Rear-view camera video input | 1-ch. Four-pin aviation male plug, connecting to the rear-view camera. | |
The other camera video input | 1-ch (reserved). Four-pin aviation male plug, connecting to the other camera. | |
Other interfaces | IR receiver | Support. For IR forwarding. |
| RS-422 interface | Support. Integrated in 2*7 plug, connecting to the mobile DVR. | |
| RS-485 interface | Reserved. | |
Two-way audio input | Support. Aviation plug, connecting to the mobile voice intercom. | |
| Alarm input | 2-ch | |
General | Working voltage | 12 VDC |
Working temperature | -20° C to +70° C (-4° F to +158° F) | |
| Working humidity | 10% to 95% | |
| Protection grade | IP54 | |
| Others | Mounting type | Embedded mounting; Bracket mounting |
