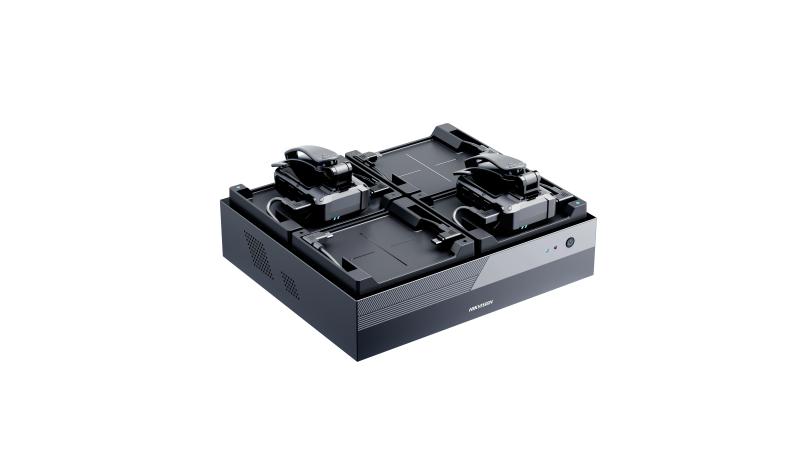

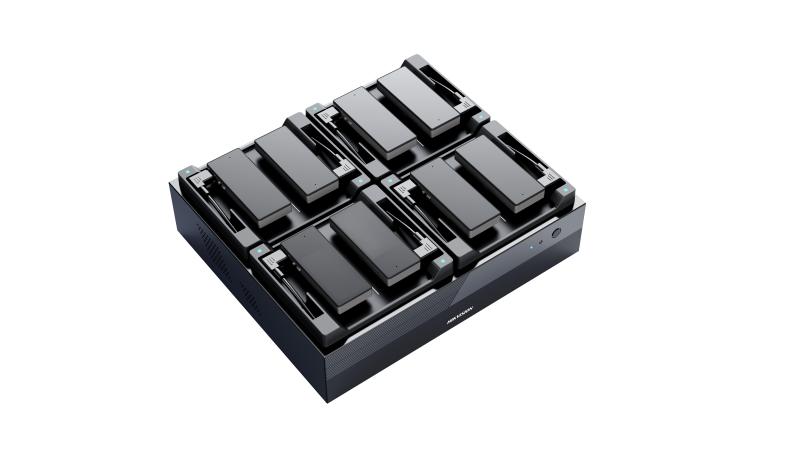

8 Ports Desktop Nameplate Dock Station. DS-MDS004 is an embedded desktop dock station. It supports auto uploading of video files in the nameplate camera, and clearing the files of the nameplate camera automatically after uploaded. Then, it will reorganize and upload the files to the Digital Evidence Management System. It provides local queries and playback, and remote search, playback, and management, as well as other related services and operations. Without manual operations, it can automatically accomplish all the functions. It could replace the data administrator, and improve the working efficiency and safety.
Features:
- Small size and easy to place. Fan-free and silent design.
- Supports accessing to 8 nameplate cameras simultaneously and auto charging of the nameplate camera.
- Adopts the web client to display data collection and parameters configuration.
- Supports auto uploading of the nameplate camera data, and clearing the storage space of the nameplate camera automatically.
- Data overwriting: The collected data will be overwritten according to the collection order when the storage is full.
- ANR (Automatically Network Replenishment) for data uploading to prevent data loss.
- Supports searching files by multiple methods. Supports playing videos, audios, and images.
| Storage | |
| HDD | Up to 2 disks (Max. 8 TB for each disk) and default 2 TB |
| RAM | 1 GB |
| Network | |
| Protocol | HTTPS, RTSP, NTP, FTP |
| API | ISAPI, ISUP |
| Interface | |
| Body Camera | Up to 8 body cameras or 8 nameplate cameras |
| Indicator | 1 power indicator, 1 hard disk indicator, 1 network indicator, 8 status indicators (for charging and data transmission status) |
| Button | Power |
| Ethernet | 2 RJ45 10M/100M/1000M self-adaptive ethernet port(s) |
| USB | USB 2.0 |
| Charging Interface | Type-C |
| Base | 5 VDC, 1.5 A for each channel, backup speed ≥ 8 MB/s |
| General | 1 RS-232, 1 power supply |
| HDMI | × 1 |
| General | |
| Operating Condition | -10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Operating System | Linux |
| Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Client | HikCentral Pro, HikCentral Master |
| Speaker | 1 Built-in speaker, Max. power consumption: 5.5 W, Max. sound pressure level: 79dB (11 cm) |
| Installation Method | Desk-Mounted |
| Power | 12 VDC, 10.0 A, max. 120 W |
| Dimension | 265 mm × 230 mm × 60 mm (10.43" × 9.06" × 2.36") |
| Weight | 2.84 kg (without Hard Disk) (6.3 lb.) |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015+A1: 2020, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014 |
| Safety | CB: IEC 62368-1: 2014 CE-LVD: EN 62368-1: 2014+A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
