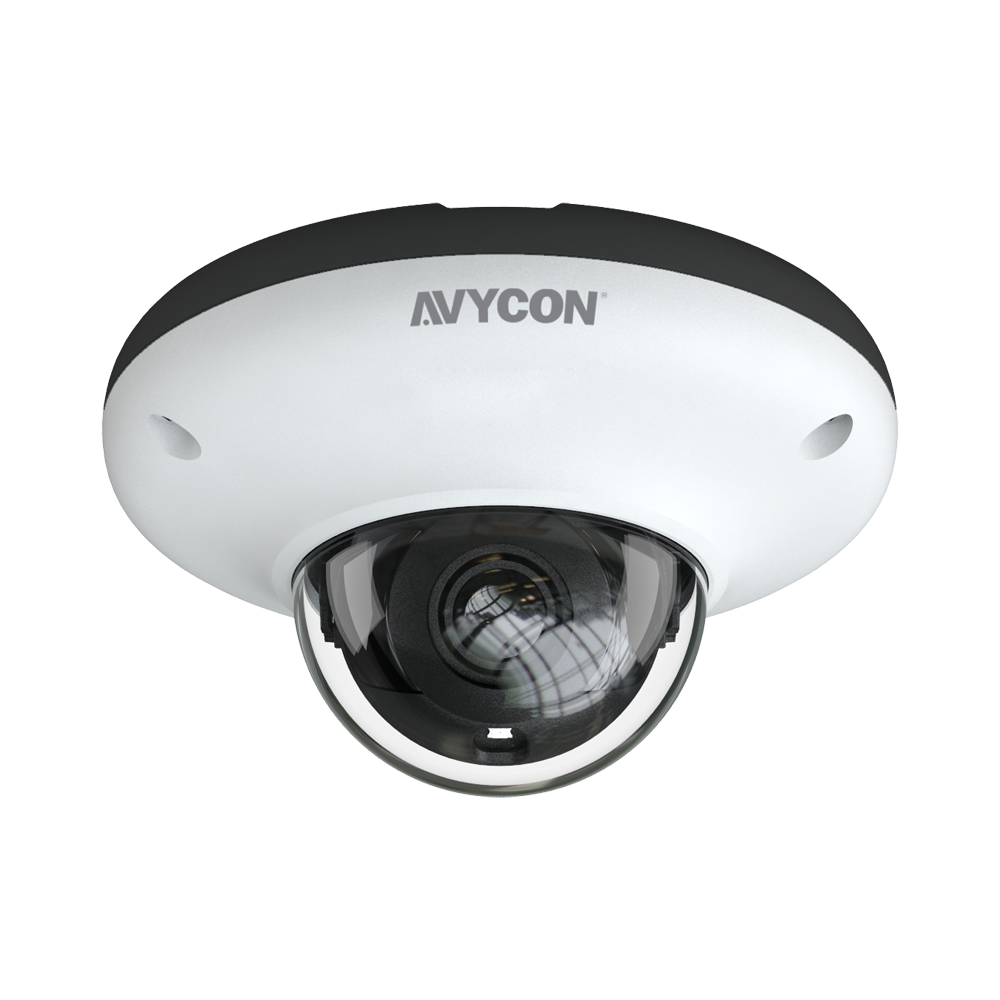

AVYCON - AVC-KNN41FT/2.8 - 4MP H.265 Network IR Dome Camera
Part number:
AVC-KNN41FT/2.8
Price:
The AVC-KNN41FT/2.8 is a 4MP H.265 Network IR Dome Camera with a maximum resolution of 4MP and a fixed 2.8mm Iris lens. With Smart IR Illumination, this camera can view a distance of up to 33ft. at night time and provide true day/night mode with ICR. Some additional features include Defogging Capabilities, ROI Encoding, PoE support, and a microSD memory card slot of up to 256GB for standalone recording applications. The AVC-KNN41FT/2.8 is equipped with a smart alarm that includes motion features and an multi-application remote monitoring system that supports browser, mobile, and CVMS monitoring
Features:
- H.265 Main Profile Video Compression
- Maximum Resolution: 2592 x 1520
- 4MP (2592 x 1520) Full Real Time Coding
- Smart IR Illumination Up to 33ft.
- True Day/Night ICR Auto Switch
- 3D DNR, True WDR, HLC & BLC
- Supports Defog
- Supports ROI Encoding
- Smart Alarm with Motion Features
- Supports Local CVBS Video Output / Analog Video Output
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- Supports Triple Streams
- P2P Remote Connection Function
- Supports Monitoring by Smart Phones, iPad, and Remote Monitoring
- DC12V (±10%) / PoE (802.3af) <3.5W (IR ON)
- NDAA Compliant
- UL-listed
| CAMERA | |
| Image Sensor | 1/3" Progressive Scan CMOS CMOS |
| Image Size | 2592 x 1520 |
| Shutter Speed | 1/2s to 1/100,000s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color: 0.005 lux @ F1.6(AGC ON); BW: 0 lux with IR |
| IR Distance | Up to 65ft |
| Lens | Fixed 2.8mm @ F1.6 Horizontal FoV: 95.3° Vertical FoV: 53.2° Diagonal FoV: 100.7°° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| Digital NR | 3D DNR |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Defog | Yes |
| S/N Ratio | ≥50dB |
| Angle Adjustment | Pan: 0°~360° ; Tilt: 0°~70° ; Rotation:0°~350° |
| VIDEO IMAGE | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240, VGA(640×480) |
| Main Stream | 60Hz: 4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps); HFT mode: 1080P/720P (60Hz : 1~30fps; 50Hz: 1~25fps) |
| Sub Stream | 60Hz: 720P/D1/CIF/VGA (1~30fps); 50Hz: 720P/D1/CIF/VGA (1~25fps) |
| Third Stream | 60Hz: D1/480x240/CIF (1~30fps); 50Hz: D1/480x240/CIF (1~25fps) |
| Video Bit Rate | 64 Kbps ~ 8 Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| NETWORK / INTERFACE | |
| Network | 1 x RJ45 10M / 100M Self-Adaptive Ethernet port |
| Network Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Interface Protocol | ONVIF (Profile S, G, T, M) |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Video Output | No |
| Audio | 1CH audio input; 1CH build-in MIC |
| Audio Compression | G711A / U |
| Alarm | No |
| Hardware Reset | Yes |
| DORI DISTANCE | |
| Lens | 2.8mm |
| Detect | 199.11ft (60.69m) |
| Observe | 97.65ft (24.28m) |
| Recognize | 39.82ft (12.14m) |
| Identify | 19.91ft (6.07m) |
| FUNCTIONS | |
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Smart Analytics | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, Target counting human/motor vehicle/non-motor vehicle by Line crossing, Exception detection, Face detection and Face capture |
| Video Metadata | Simultaneously captures human body, motor vehicle, and non-motor vehicle and extracts 13 human features, 5 motor vehicle features, and 1 non-motor vehicle feature. |
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern |
| GENERAL | |
| Power Supply | D12V/POE(IEEE802.3af) |
| Power Consumption | <6W |
| Operating Environment | (-22°F ~ 140°F) -30°C ~ 60°C Humidity: less than 95% (non-condensing) |
| Storage Environment | (-22°F ~ 149°F)-30°C ~ 65°C Humidity: less than 95% (non-condensing) |
| Dimensions (in) | Ø 4.33 × 2.35 |
| Weight (lb) | Approx. 0.83 lbs |
| Ingress Protection | IP66 |
