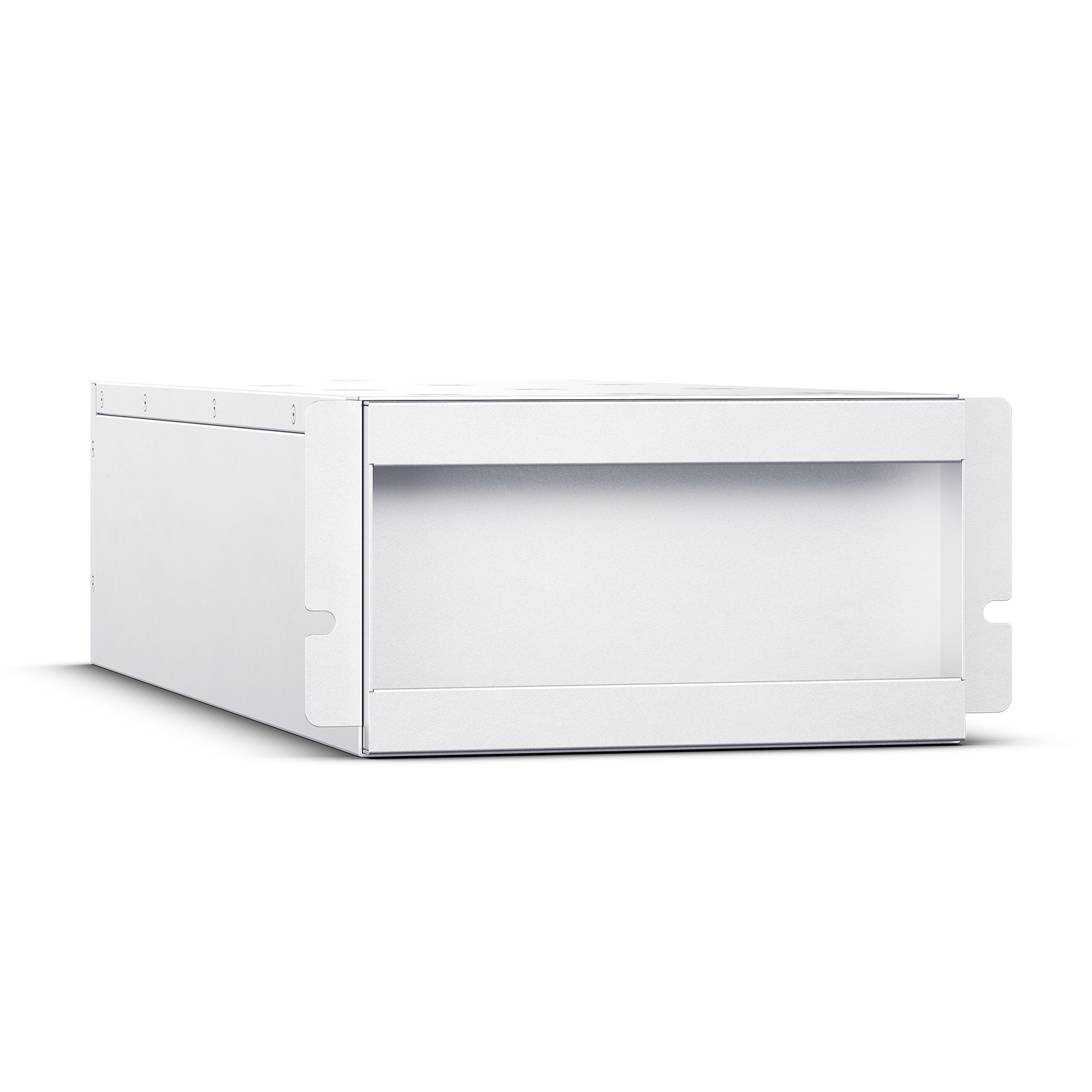

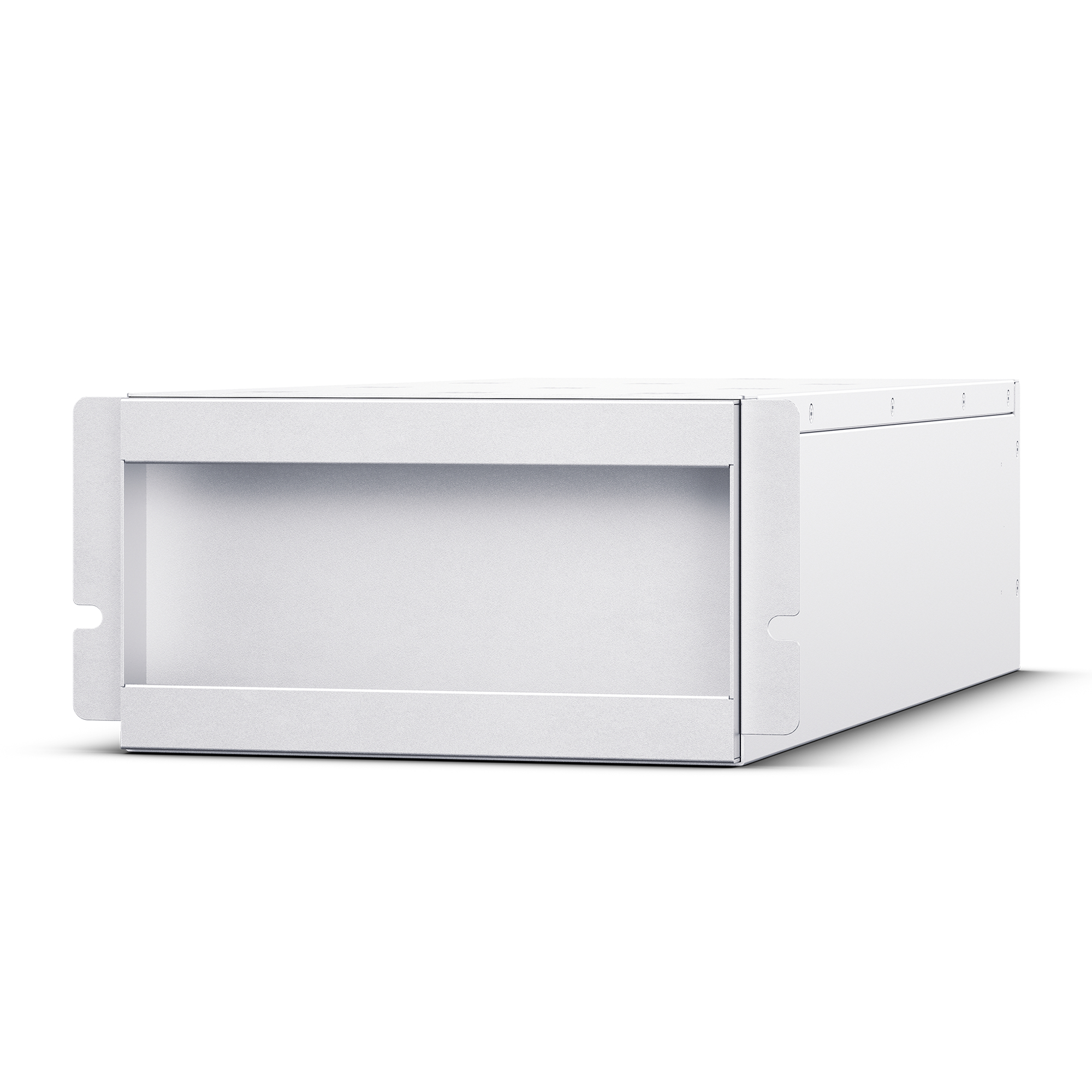

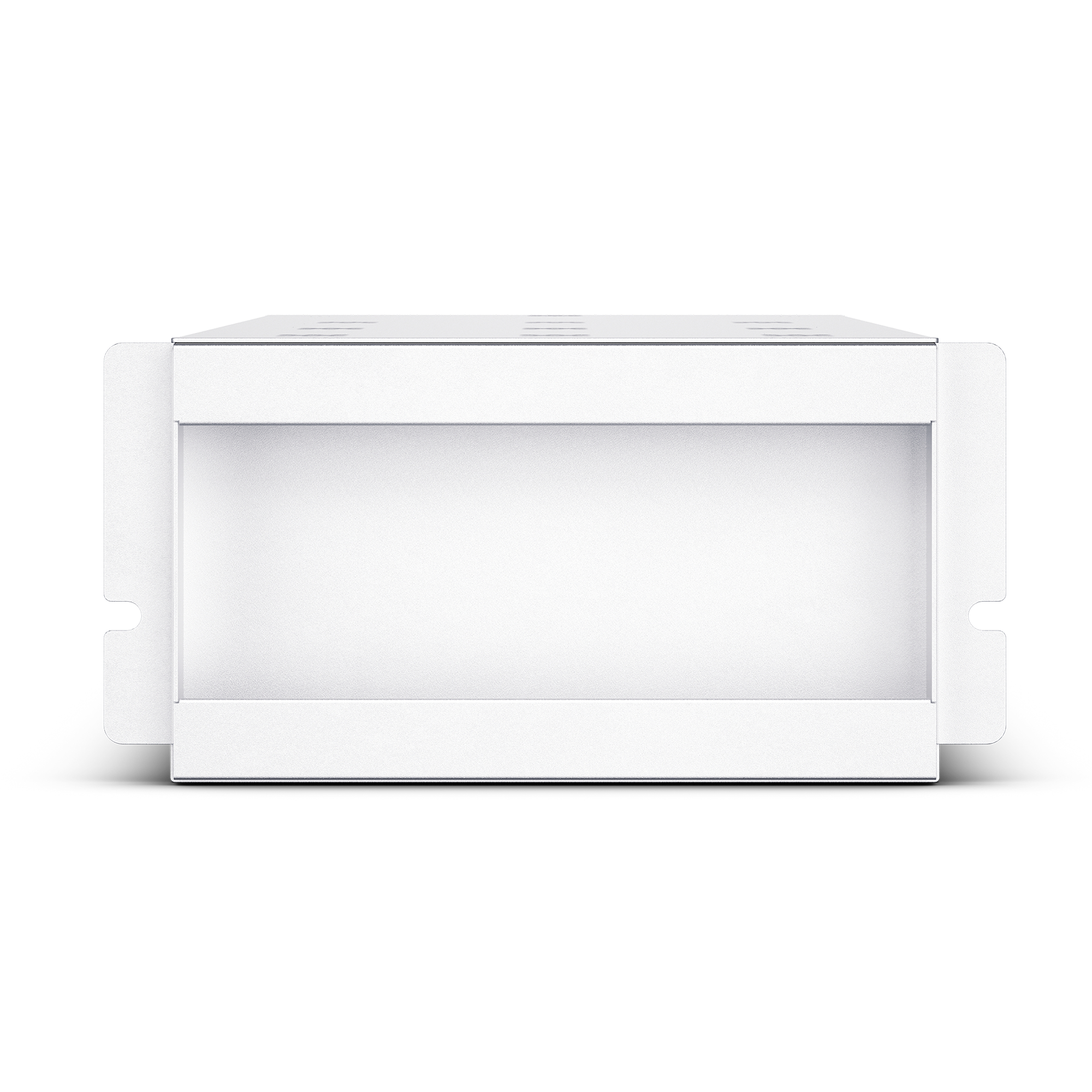

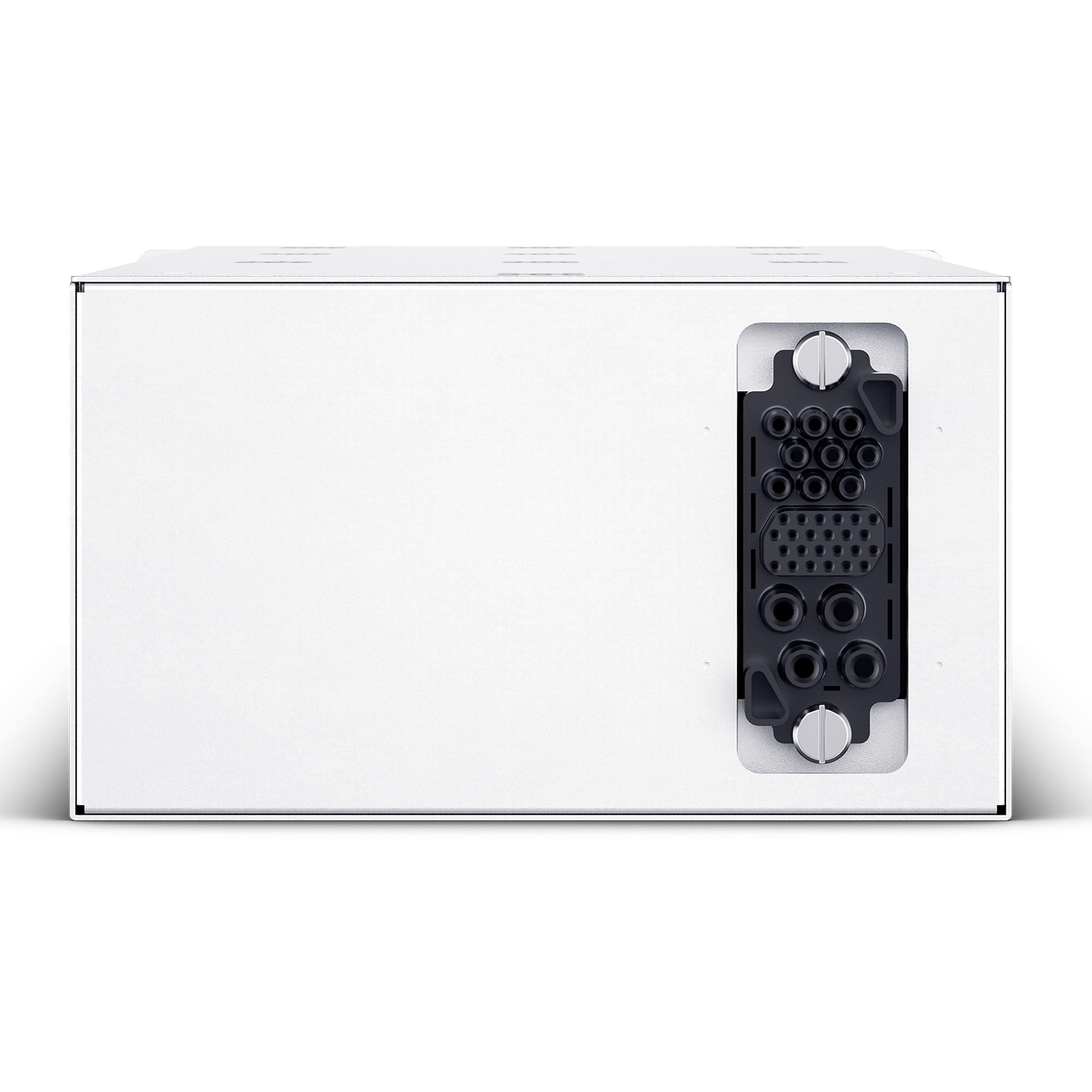

Cyber Power - BM120V30ATY - Battery Module 120VDC for 3-Phase UPS
Part number:
BM120V30ATY
Price:
CyberPower BM120V30ATY 3-Phase Modular UPS Battery Modules contain ten (10) 12VDC 8Ah batteries. Two of these 120VDC modules fill one shelf of a battery cabinet equaling one full 240VDC battery string. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Battery Cabinets, 3-Layer BCT3L9N125, 6-Layer BCT6L9N225.
Features:
- Expandable Runtime: Additional battery modules in BM120V30ATY cabinets will increase runtimes.
- Hot-Swappable Batteries: Keeps equipment running by eliminating downtime during UPS power maintenance.
- One-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase Modular UPS installation. See warranty for details.
| Battery | |
| Battery Size | 12 V / 9 Ah |
| Battery Type | VRLA |
| Hot Swappable | Yes |
| Output | |
| Nominal Output Voltage | 120 VAC |
| Physical | |
| Color | Silver |
| Form Factor | Modular |
| Material of Construction | Metal |
| Mounting Hardware | No |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 23.62 x 11.68 x 60.96 (cm) |
| Physical Dimensions – (WxHxD) (in) | 9.3 x 4.60 x 24 (in) |
| Physical Dimensions – (WxHxD) (mm) | 236 x 117 x 610 (mm) |
| Physical Weight (kg) | 33.61 |
| Physical Weight (lb) | 74.1 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 34.52 |
| Shipping – Weight (lb) | 76.1 |
| Shipping Dimensions – (WxHxD) (cm) | 33.66 x 23.19 x 78.74 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 13.25 x 9.13 x 31 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 336.55 x 231.9 x 787.4 (mm) |
| Dimensions – Power Module | |
| Power Module – Rack Units | 3U |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 104 °F (-15 – 40 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cTUVus UL1778, CSA C22.2 No. 107.3-14 CFR 47 FCC Part 15, Subpart B, Class A |
| Warranty | |
| Product Warranty | 1 Year Limited Warranty |
