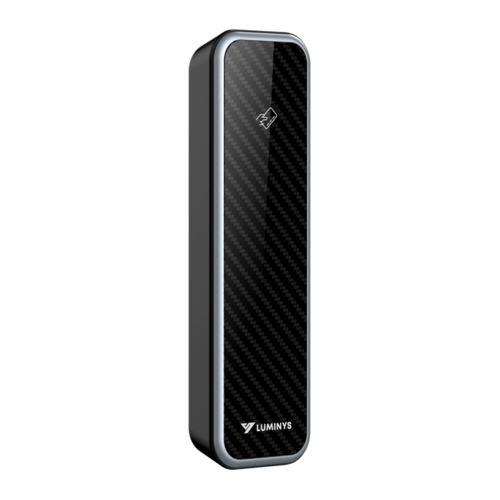

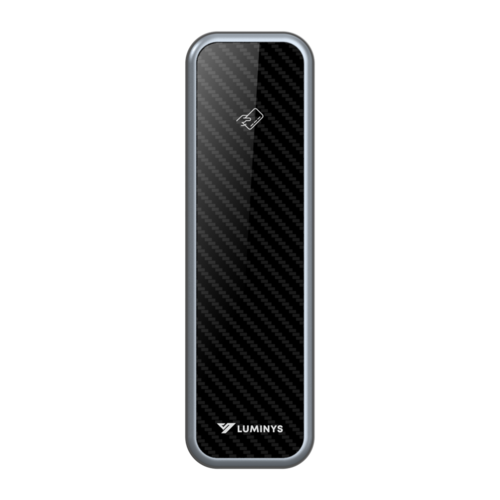

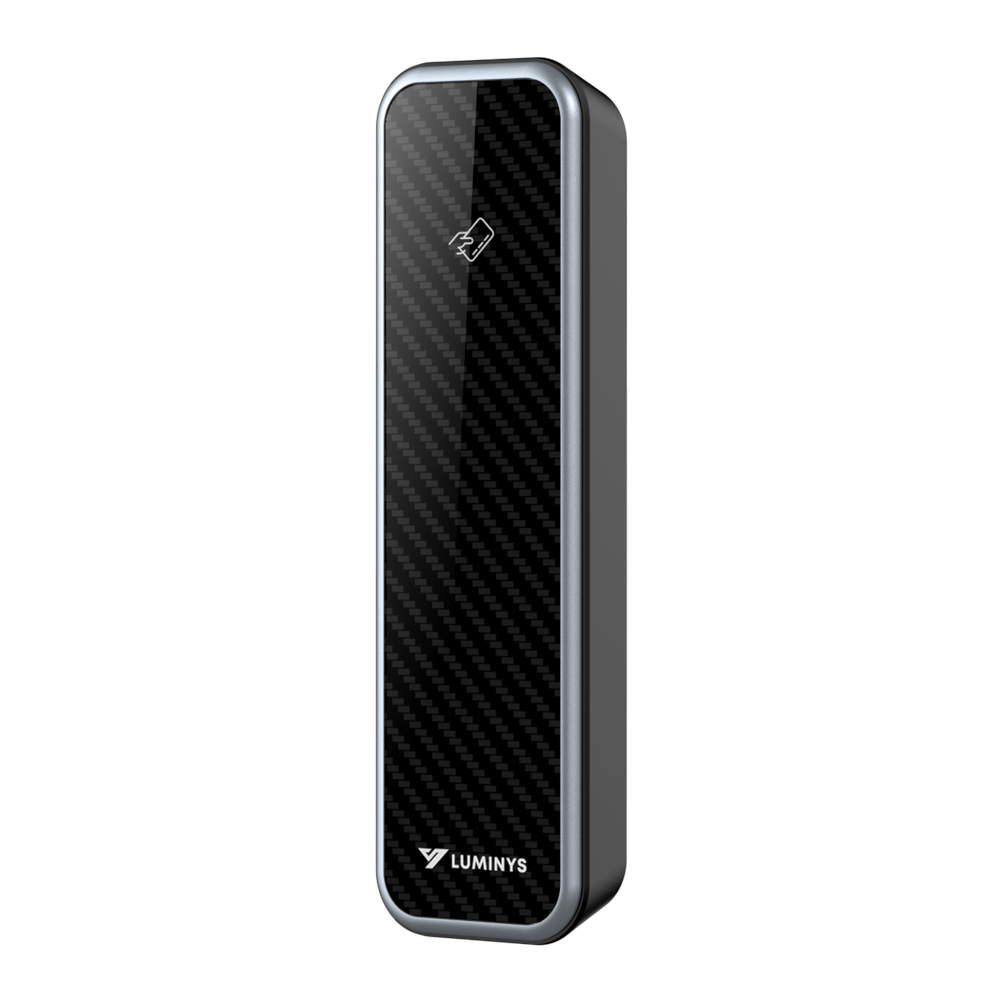

Luminys - RD1BN - Bluetooth Access Reader
The RD1BN is part of Luminys’s access control product range. Luminys access control solutions are built for flexibility and scalability and provide reliable, secure access for applications of all sizes.
Key Technologies
Bluetooth credentialing technology offers secure, contactless access via mobile credentials, ideal for modern workplaces. Compatible with supported readers and the web controller.
Multi-credential capability allows for different authentication methods, such as card, PIN, or Bluetooth credentials (varies by model) to provide flexible and secure access control options. (Only available for Bluetooth and IC card swiping)
IP66 ingress protection ensures protection against dust and heavy rain, making it ideal for outdoor installations and rugged conditions.
Feedback indicators such as integrated LEDs and buzzers provide real-time audio and visual feedback during user interactions.
Mullion mount housing allows for sleek, unobtrusive security while still providing full functionality and security.
Features:
- Mullion Mount Housing With Indicator Light and Buzzer
- IP66 Protection For Indoor and Outdoor Use
- Supports Bluetooth and Card (IC Card) Verification Methods
- Supports RS-485, Wiegand, and Bluetooth Communication Protocols
- Equipped with Anti-Tampering Alarm
- Surface Mount Design
Certifications and Compliance
- NDAA Compliant
- FCC/FCC ID
- IC/IC ID
| Specification | |
| Card Reading Functions | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Bluetooth, Card |
| Response Time | 0.1 s |
| Card Reading Distance | 0 in. to 2.0 in. (0.0 cm to 5.0 cm) |
| Bluetooth Functions | |
| Bluetooth Standard | Mode: BR/EDR/BLE |
| Version | BT5.0/BT5.2/BLE4.0 |
| Frequency Range | 2400–2483.5 MHz |
| Maximum Transmission Power | CE EIRP: ≤ 20 dBm at 2400–2483.5 MHz FCC Output Power: ≤ 30 dBm at 2400–2483.5 MHz |
| Bluetooth Reading Distance | (The reading range may differ depending on the phone model and the environment.) |
| Short Range | 0.7 ft (≤ 0.2 m) |
| Mid Range | 6.6 ft (≤ 2 m) |
| Long Range | 32.8 ft (≤ 10 m) |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | Event Tamper |
| Electrical | |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption | • Standby: ≤ 0.9 W • Working: ≤ 1.7 W |
| Construction | |
| Net Weight | 0.1 kg (0.2 lb) |
| Gross Weight | 0.2 kg (0.4 lb) |
| Product Dimensions (H × W × D) | 5.3 in. × 1.6 in. × 0.6 in. (135.0 mm × 40.0 mm × 15.0 mm) |
| Package Dimensions (H × W × D) | Inner Carton: 7.7 in. × 3.0 in. × 2.1 in. (195.0 mm × 75.0 mm × 52.0 mm) Outer Carton: 16.3 in. × 15.8 in. × 9.1 in. (415.0 mm × 400.0 mm × 230.0 mm) |
| Operating Temperature | 22 °F to 158 °F (-30 °C to 70 °C) |
| Humidity | 5% to 95% (RH), Non-Condensing |
| Protection Ratings | IP66 |
| Material | Tempered Glass and PC |
| Installation Method | Surface Mount |
| Certifications and Compliance | |
| Certifications | FCC/FCC ID, IC/IC ID |
| Compliance | NDAA |
