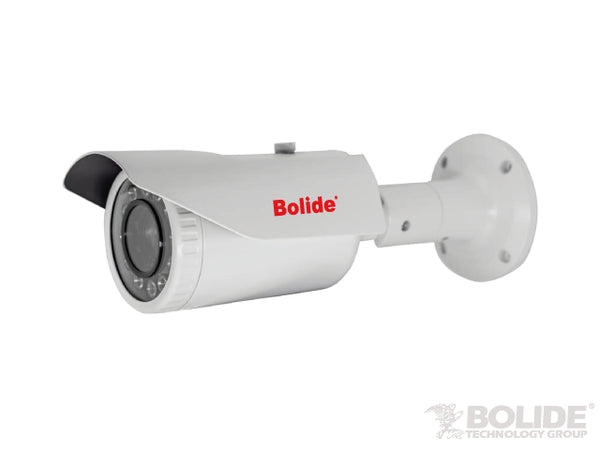

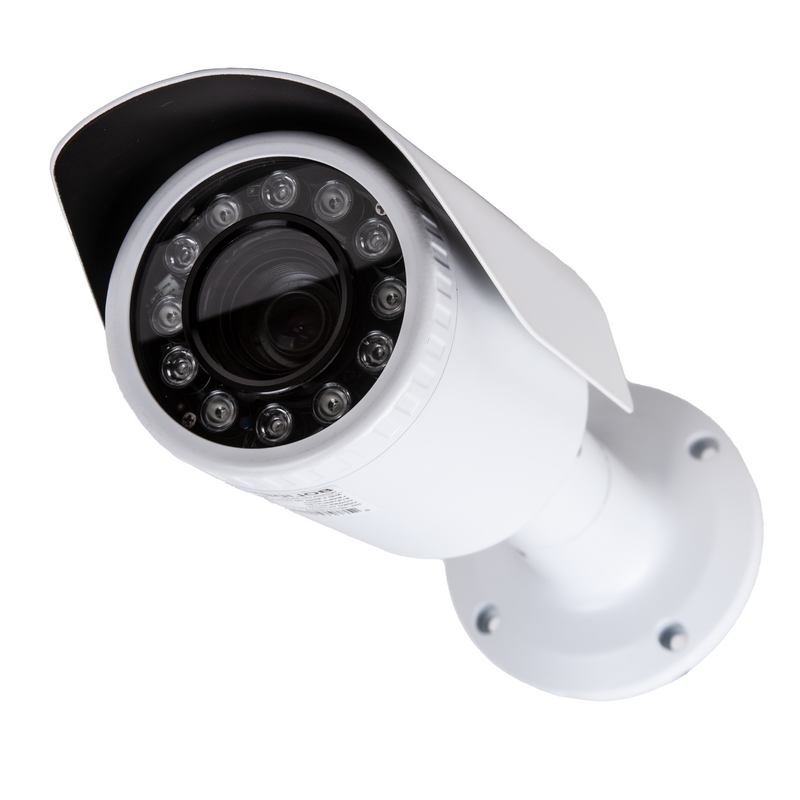

BOLIDE - BC1536M/90AHQ - Angelo HD Coaxial HD bullet camera 5-90mm With Ultra Long Range Zoom
Part number:
BC1536M/90AHQ
Price:
5.0MP AHD / TVI / CVI / Analog Bullet Camera, 1/3" CMOS, 5 - 90mm Motorized Varifocal Lens, IR Up to 200 ft., Control Over Coax, OSC, Quickswitch, 12VDC, White
Features:
18x ultra long range zoom
• Super aperture make more bright at night
• Menu in 11 languages
• AHD/TVI 5 million. CVI 4 million. CVBS four in one ouput
• 40 meters infrared lamp range output
• Double filter switching, clear day and night effect
• Metal explosion proof enclosure, IP66 waterproof grade
• Million HD image sensor with effective resolution of 2592*1944
• UTC features
| Image | |
| Imaging device | Sony 1/2.8' IMX335 |
| Imagin resolution | 2592*1944 |
| Effective pixel | AHD/TVI 5mp CVI 4mp |
| Lens | |
| Focal Length | 5mm-90mm auto focus lens |
| Multiple | 18x |
| Aperture | F2.0-F3.9 |
| Zoom mode | UTC electric control zoom |
| System function | |
| TV system | PAL/NTSC |
| Day and night mode | External control (default) auto / color black and white |
| Signal to noise ratio | ≥50DB |
| Wide dynamic | ≥120DB |
| Minimum illumination | 0.1LUX |
| Infrared radiation distance | 80m |
| Backlight compensation (BLC) | Auto |
| Automatic white balance (AWD) | Auto |
| Language | English, Simplified Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Japanese, Korean |
| Video output | AHD / TVI / CVI / CVBS |
| Electrical | |
| Working voltage | DC12V Max10W |
| Working enviroment | -20°C to 50°C |
| Housing | Metal |
| Waterproof grade | IP66 |
| Color | White |
| Weight | ~450g |
