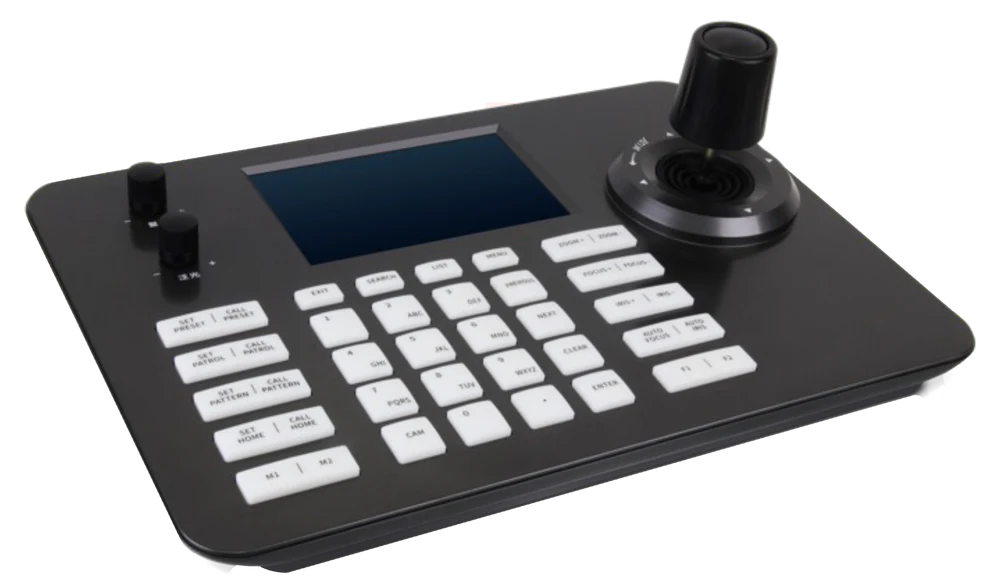

BOLIDE - BN-KBJ - Network Keyboard Joystick for PTZs
Part number:
Price:
• 5" Industrial LCD Screen (800x480) with image decoding and real-time monitoring
• 4D Joystick for smooth PTZ navigation
• ONIF protocol support for maximum compatibility
• Networkable with an independent IP address
• Customizable function buttons & shortcuts
• Zoom/speed control knob for precision adjustments
• PoE support for simplified installation
• Supports up to 999 devices for large-scale deployments
| System | |
|---|---|
| Max equipment | 999 |
| Decoding | H.265, H.264 |
| Resolution | MAX 1080P for 1 channel: 1920*1080@30fps |
| Protocol | Onvif |
| Joystick | 4D |

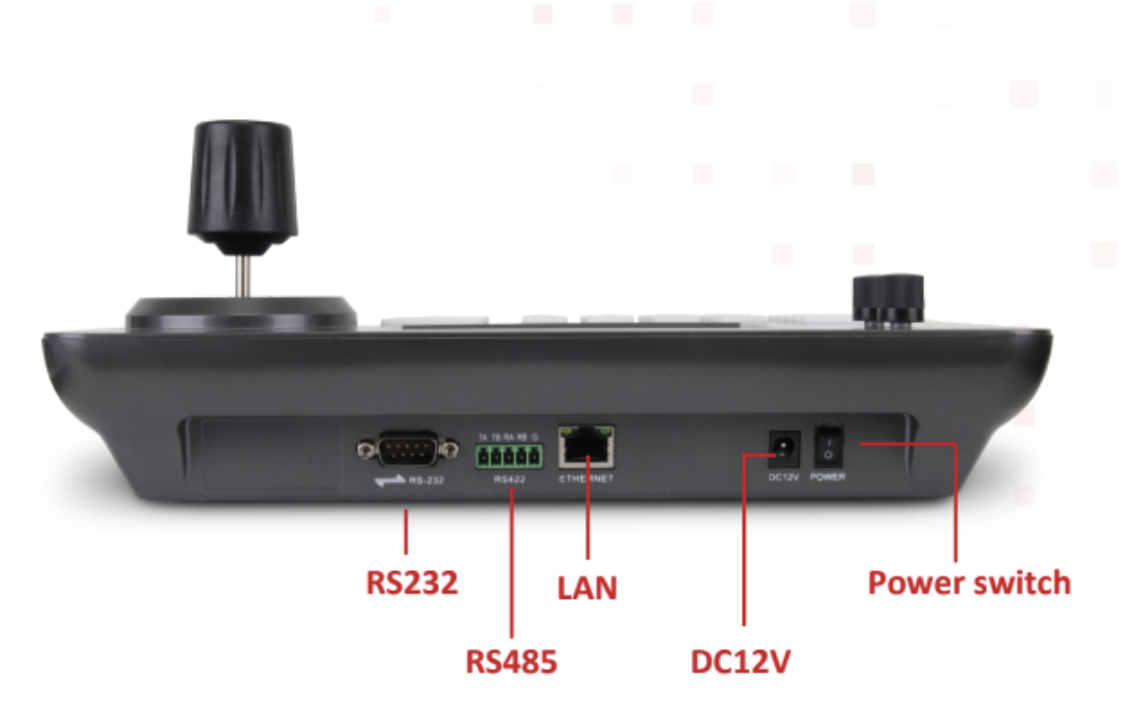

| Output | RS422(Reserved), RS232(Development port), RJ45 |
| Accessories | Knob, Silicone button |
| Beep | On/off |
| Screen | TFT LCD 800*480 |
| Power consumption | ≤5W |
| Power | DC12V-2A |
| Work temperature | -10°~55° / 14°F~131°F |
| Work humidity | 20%~80% frostless |
| Storage temperature | -10°~60° / 14°F~140°F |
| Storage humidity | 0~90% frostless |
| Packing size | 340*268*140mm |
| Outer box size and specifications | 553*460*350mm / 6 sets |
| Weight | 900 G /set |
