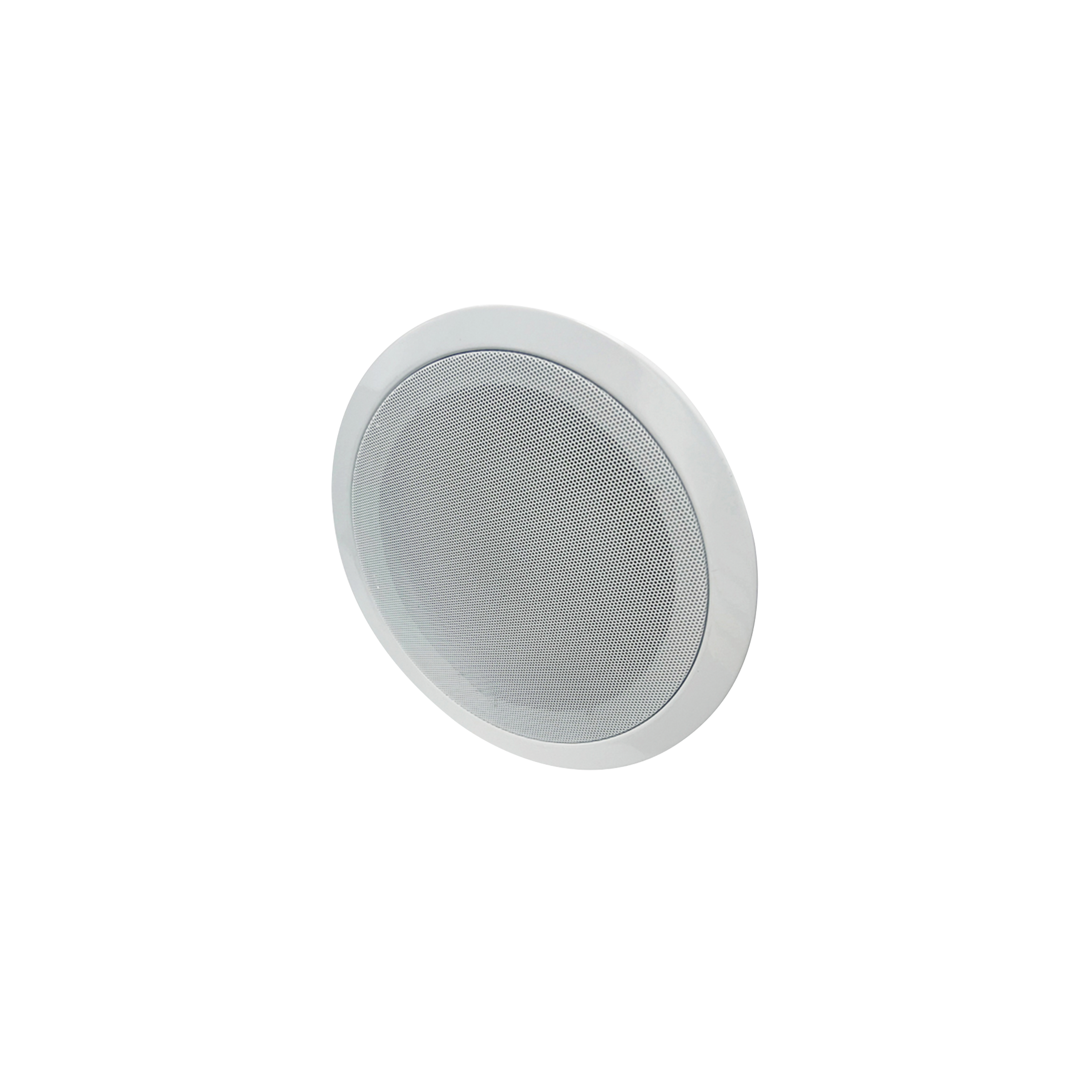

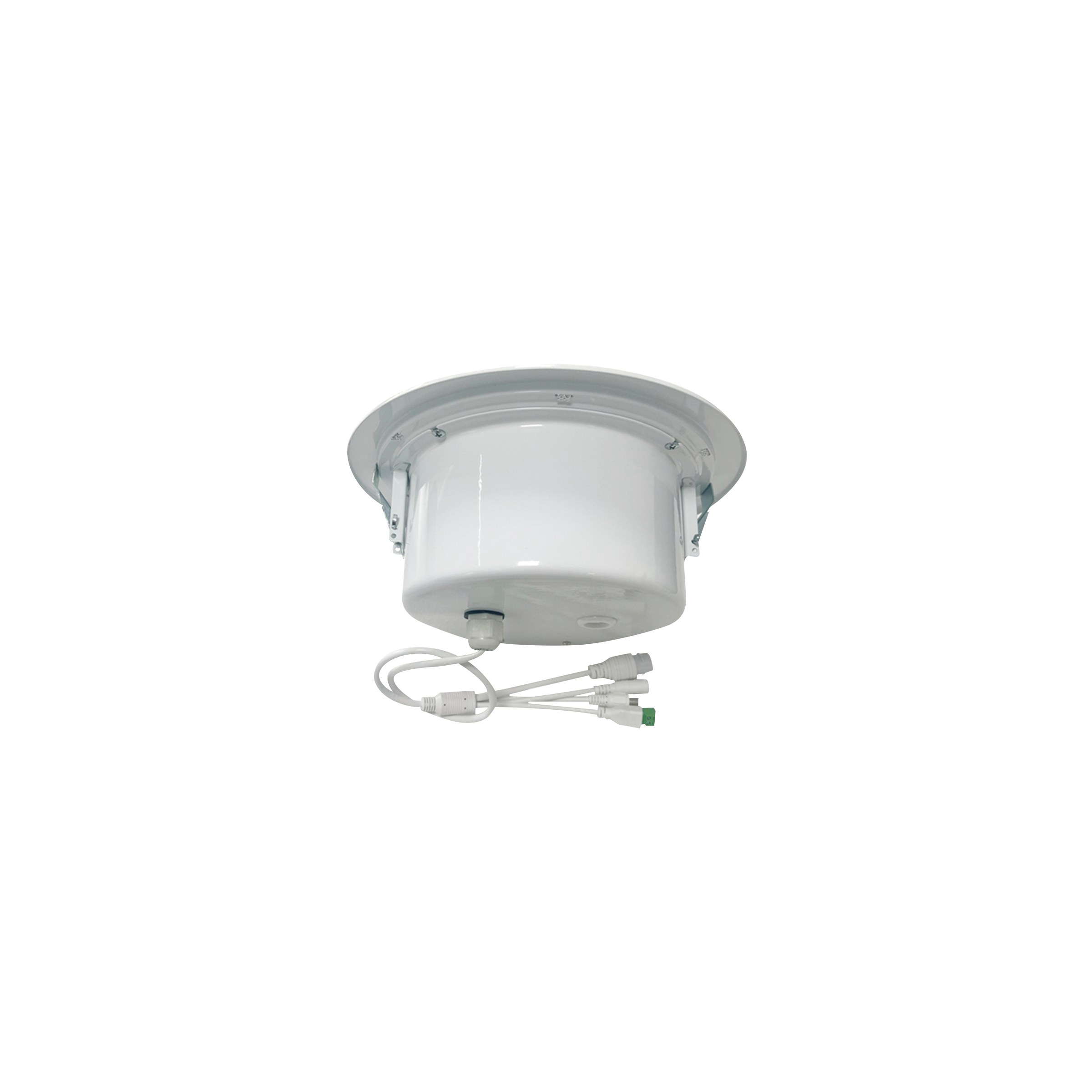

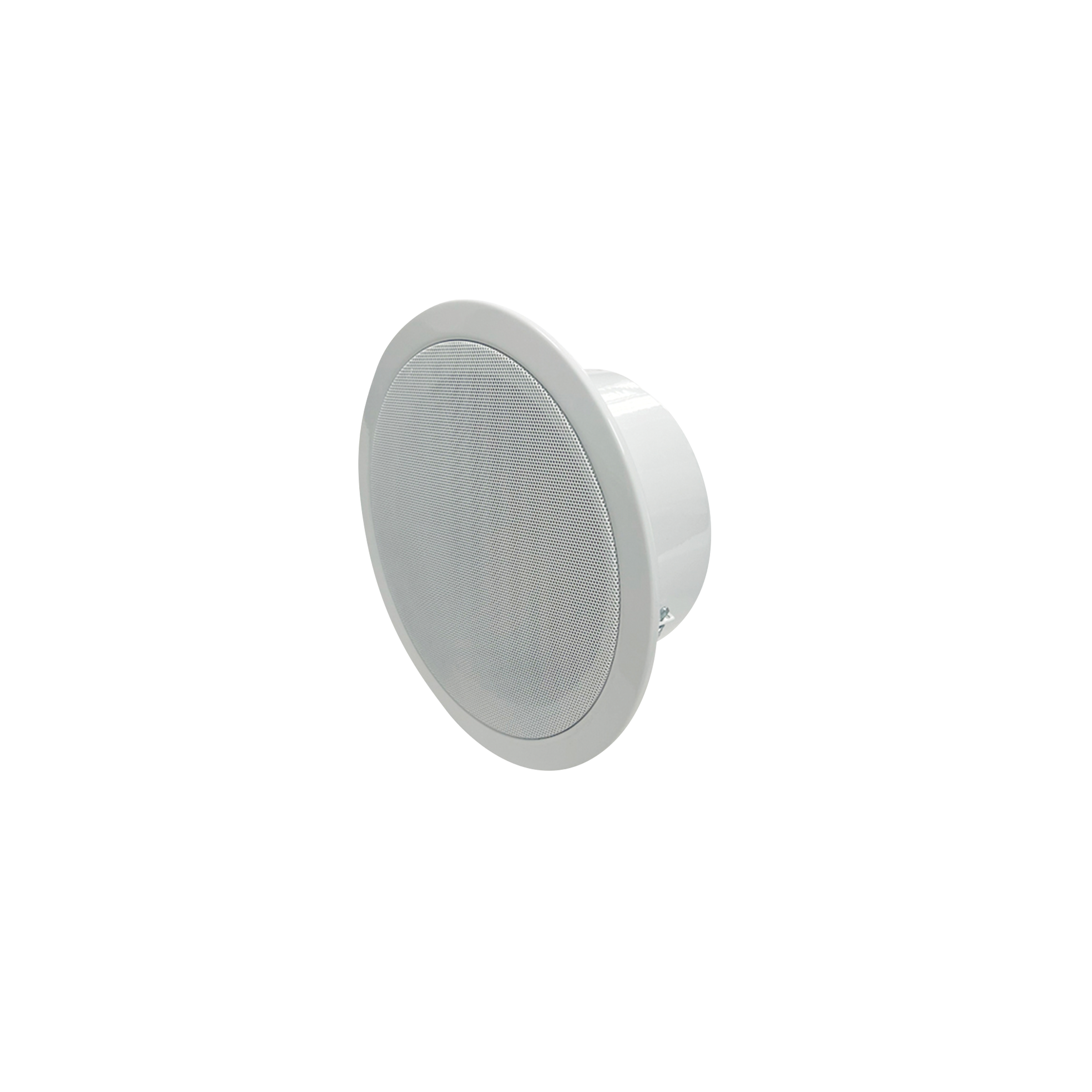

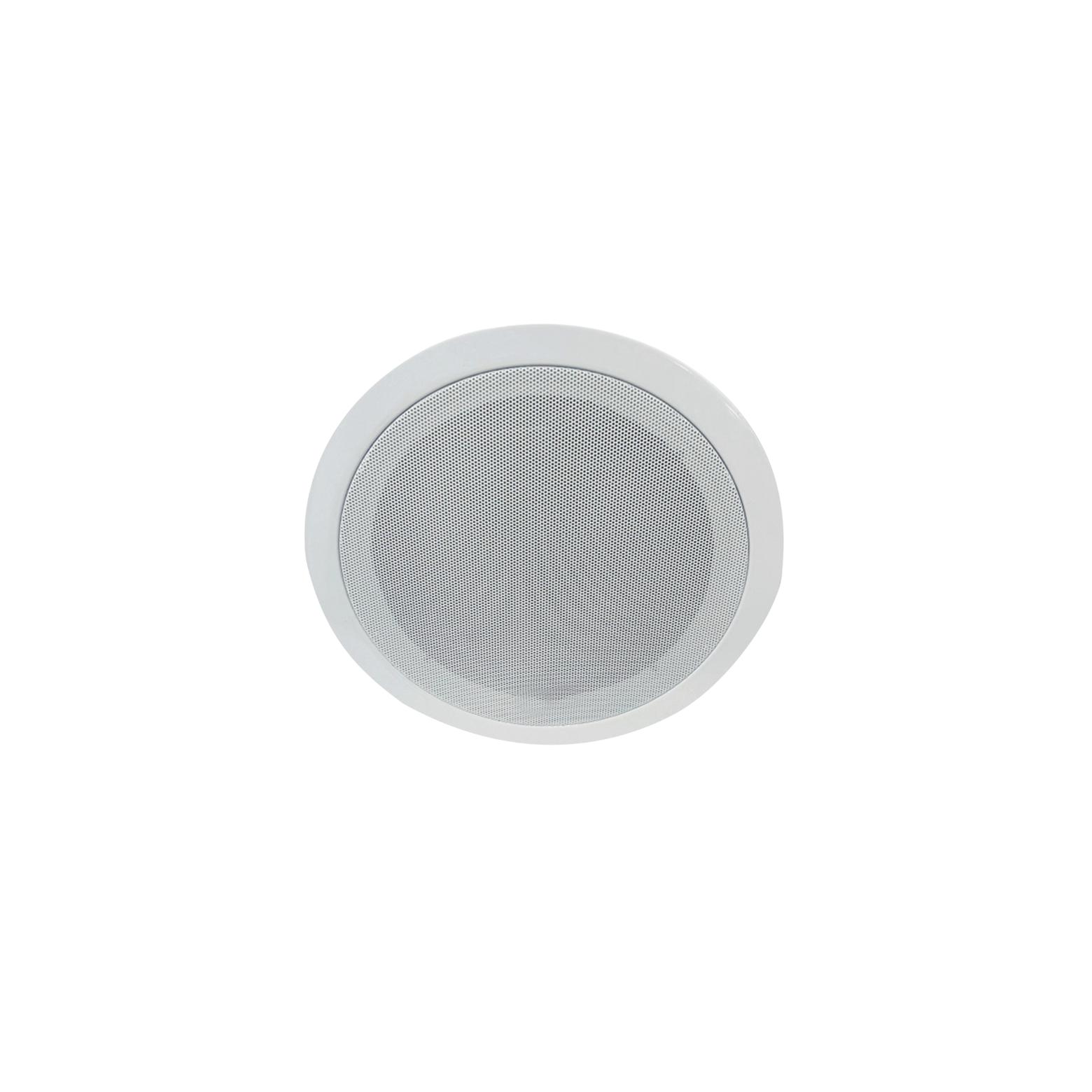

Digital Watchdog - DW-SWSPC30iAM - Built in 30W Amplifier, In-ceiling Ip-enabled Indoor Speaker, Compatible with VoIP Devices (IP PBX, IP Phone) Via SIP
Part number:
DW-SWSPC30iAM
Price:

IP In Ceiling Speaker, 30W, 96dB, Built in 30W Amplifier, Built in Microphone, Alarm Input, Compatible with VoIP Devices (IP PBX, IP Phone) Via SIP, Supports Pre-Recorded Messages, Live Responses, Alarms and Background Music, G.711, 8 kHz, G.711 PCMU 8 kHz, G.722 ADPCM 16 kHz, MP3 44.1 kHz, OPUS 48 kHz, Onvif, PoE or 12V/24V, 2 Year Warranty.



All-in-One Speaker
DW's all-in-one speakers are designed with powerful amplifiers to ensure every voice message is clear and understandable. The speaker has an onboard memory that can store prerecorded voice messages, music, and alerts. The built-in microphone enables operators to respond to notifications or audio from the field with live communications.


No Noise or Audio Distortion
DW's speakers provide clear and audible speech and audio and come with a preconfigured, built-in digital signal processor (DSP) that ensures live speech and prerecorded audio can be heard clearly, even from a distance.


Flexible and Scalable Solution
DW's speakers are designed to support Power over Ethernet (PoE) for a simplified installation process. The speakers transmit data and receive power through a single cable, making it easy to integrate with your existing surveillance, Voice over IP (VoIP) telephony (via SIP), and event management via DW Spectrum. As a standalone product, the speaker can be placed anywhere you need it.


Audio for safety
Use pre-recorded and live messages as part of your warning and crucial safety system in emergencies. The horn speaker can deliver up-to-the-minute information and guide the public and your workforce in emergencies.


Audio for deterrence
Combine DW’s horn speaker with video and alarm systems to create deterrence and prevent crime or damage to your property. Audio adds value to your security system with real-time responses to suspicious behavior at the scene.


Audio for operations
The horn speaker is a cost-effective solution for delivering non-emergency messages to public areas, supporting and helping streamline your operations and offering public addresses, guidelines and announcements.


Features:

  • All-in-one IP speaker system
  • Built-in microphone
  • Compatible with IP cameras via DW Spectrum IPVMS
  • Compatible with VoIP devices (IPPBX, IP Phone) via SIP
  • Built-in 30W amplifier
  • Support pre-recorded messages, live responses, alarms and background music
  • Alarm sensor input for access control integration
  • Schedule audio alerts
  • Support HTTP API for alarm-in transmit
  • Web server built-in for easy device management from any browser
  • ONVIF conformant
  • PoE and DC12V for single cable simplified installation
  • In-ceiling installation with minimalistic design for a discreet final look.
  • 2 year warranty
Specification
Audio
Built-in microphoneYes
CodecG.711 PCMA 8 kHz
G.711 PCMU 8 kHz
G.722 ADPCM 16 kHz
MP3 44.1 kHz
OPUS 48 kHz
Mounting Accessories
ComplianceCE
FCC
OperatingDC 12V
PoE
MaterialMetal
ColorWhite
Working Temperatures-22°F ~ 140°F (-30°C ~ 60°C)
Working humidity5%~85%
Mounting optionsCeiling
Indoor
Warranty2 year warranty
Included accessoriesQSG
Speaker
AmplifierBuilt-in 30W amplifier
Frequency range400-12KHZ +-20dB
500-2KHZ +-10dB
Frequency response80Hz ~ 20KHz
Harminoc distortion0.1@1kHz
Max SPL96dB
Signal to noise ratio91dB
Network
Network interface10/100 Base-TX
RJ54
Network ProtocolsARP
DHCP
FTP
HTTP
IPv4
NFS
NTP
ONVIF
RTCP
RTP
RTSP
SIP
TCP
TFTP
UDP
SecurityDigest authentication
IP address filtering
Password protection
VoIPSupport for SIP protocol for integration with VoIP systems, integrated with SIP/PBX
Support SIP features: secondary/backend SIP server, IPv4
Supported codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
General
General Dimensions7.87” x 3.54” (200 x 90mm)
InterfaceAlarm input
Audio in
DC power
PoE
Weight4.29 lbs (1.95kg)
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Manual
0.9mb
File
Brochure
0.5mb
File
Quick Start Guide
0.5mb
