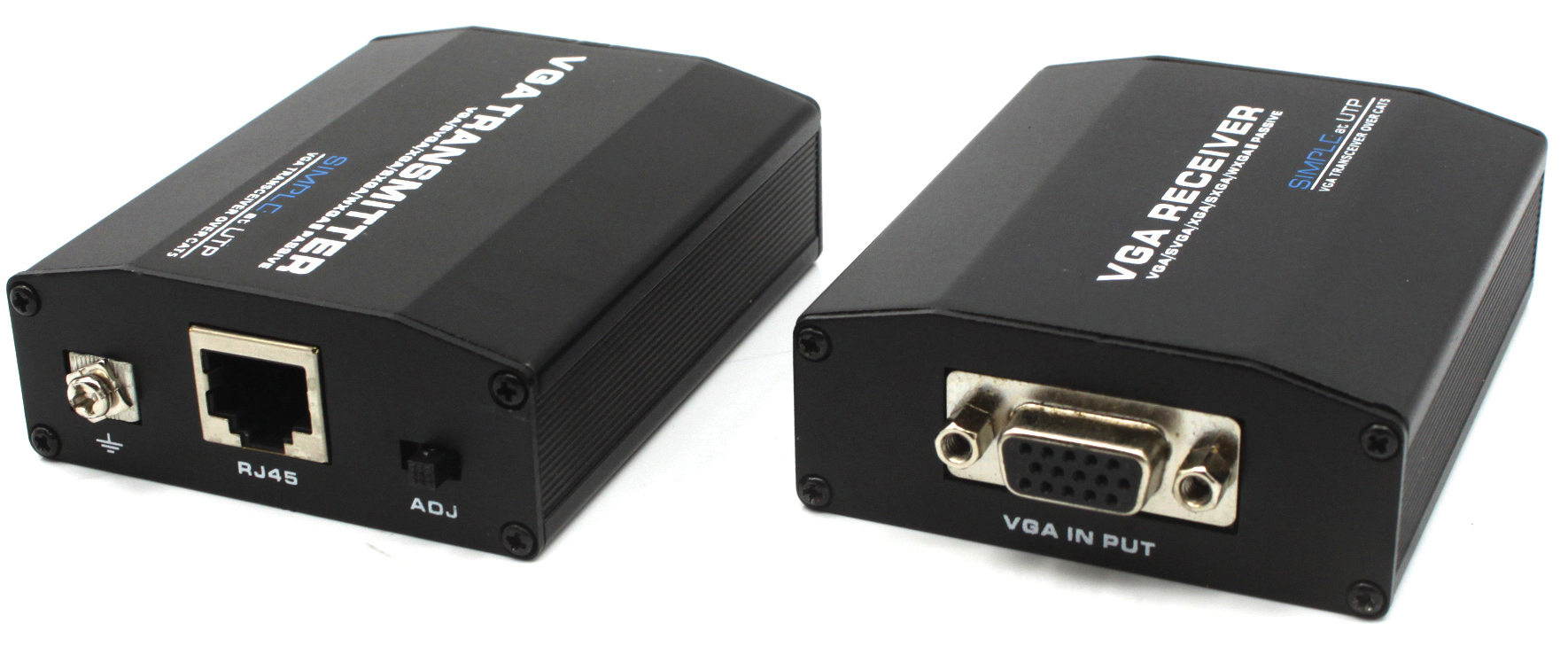

PFM710 - EOL
This product has been discontinued.
Part number:
PFM710
Price:
VGA Extender
Features:
- No External Power Supply Required
- Real-time Video Transmission without Compression or Delay
- High-definition VGA Video Signal Transmission up to 35 m (115 ft)
- Uses a Single UTP Cable (CAT5E or CAT6) to Transmit One-channel Video
- Strong Protection from Static, Interference, and Lightning
- Easy and Convenient Installation, Automatic Driver and Network Configuration
Properties
| Transmission Signal | One (1) Channel |
| Category Type | UTP CAT5E/6 |
| Transmission Distance, maximum | 35.0 m (114.83 ft) at 1080p |
Video Transmission Properties and Ports
| Video Signal Input Interface | Female 15, VGA Port |
| Video Input Interface | Female 15, VGA Port |
| Resolution | 640 x 480, 800 x 600, 1600 x 1050, 1600 x 1200, 1920 x 1080 |
| Twisted-pair Video Transmission Port | RJ45 |
| Video Signal Processing Bandwidth | < 120 MHz (–3 db) |
| Synchronous Signal Bandwidth | 1 k to 200 KHz |
Adjustment
| Transmitter | Two (2) Modes |
| Receiver | Three (3) Modes |
