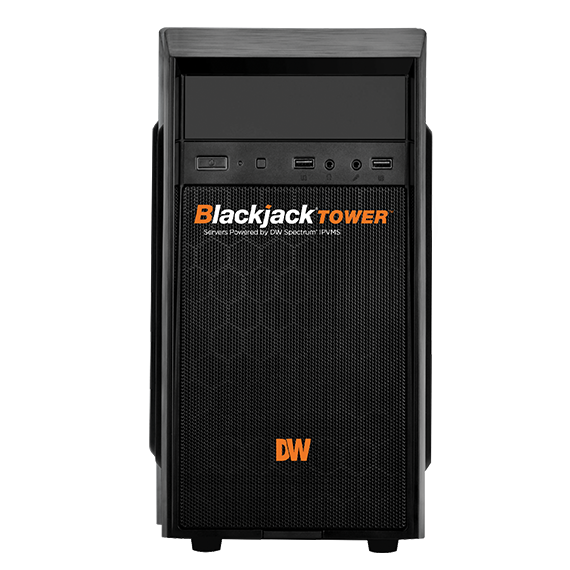

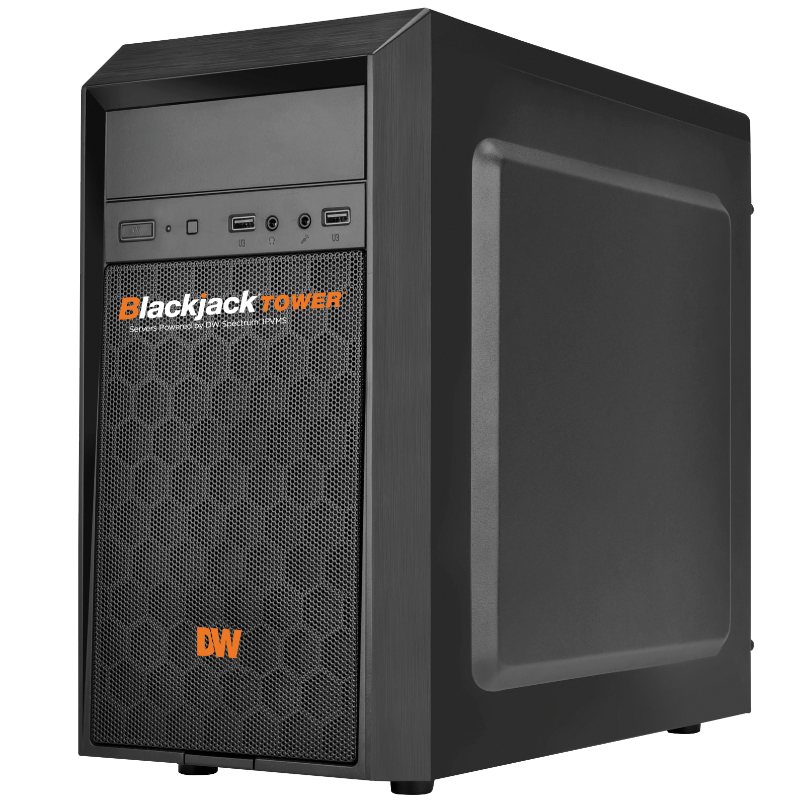

Digital Watchdog - DW-BJMTC7404T - Blackjack Mid-size Tower Client Workstations, 4 Simultaneous Monitors, Windows OS, 32GB RAM
Part number:
DW-BJMTC7404T
Price:

Blackjack tower monitoring station, Windows OS, 32GB RAM, 4 simultaneous displays


DW Spectrum IPVMS
DW Spectrum IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.


Multi-Monitors Support
Blackjack monitoring workstations allow users to connect multiple monitors, up to four (4) separate outputs in a single station, increasing the monitoring capabilities and expanding the DW Spectrum client to the next level.


Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.


ONVIF Conformant
DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.


Features:

  • Supports all ONVIF conformant IP cameras
  • OS on SSD
  • Support for up to three (3) MEGApix PANO™ multi-sensor cameras up to 48MP (DWC-PZV2M72T)
  • Client Workstation Includes 4TB HDD to export footage from your server
  • 1 x true HD, 3 x Display Port, up to 4 displays simultaneously
  • 1x 1G network port
  • Windows 10 on separate SSD
  • Hosting DW Spectrum for monitoring
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 year limited warranty
Specifications
Hardware
CPUIntel i7® processor
Display Modes

Unlimited

Customizable

Sequence

Display SpeedUp to 30fps per channel
Local Video Output Resolution7680x4320 (8K)

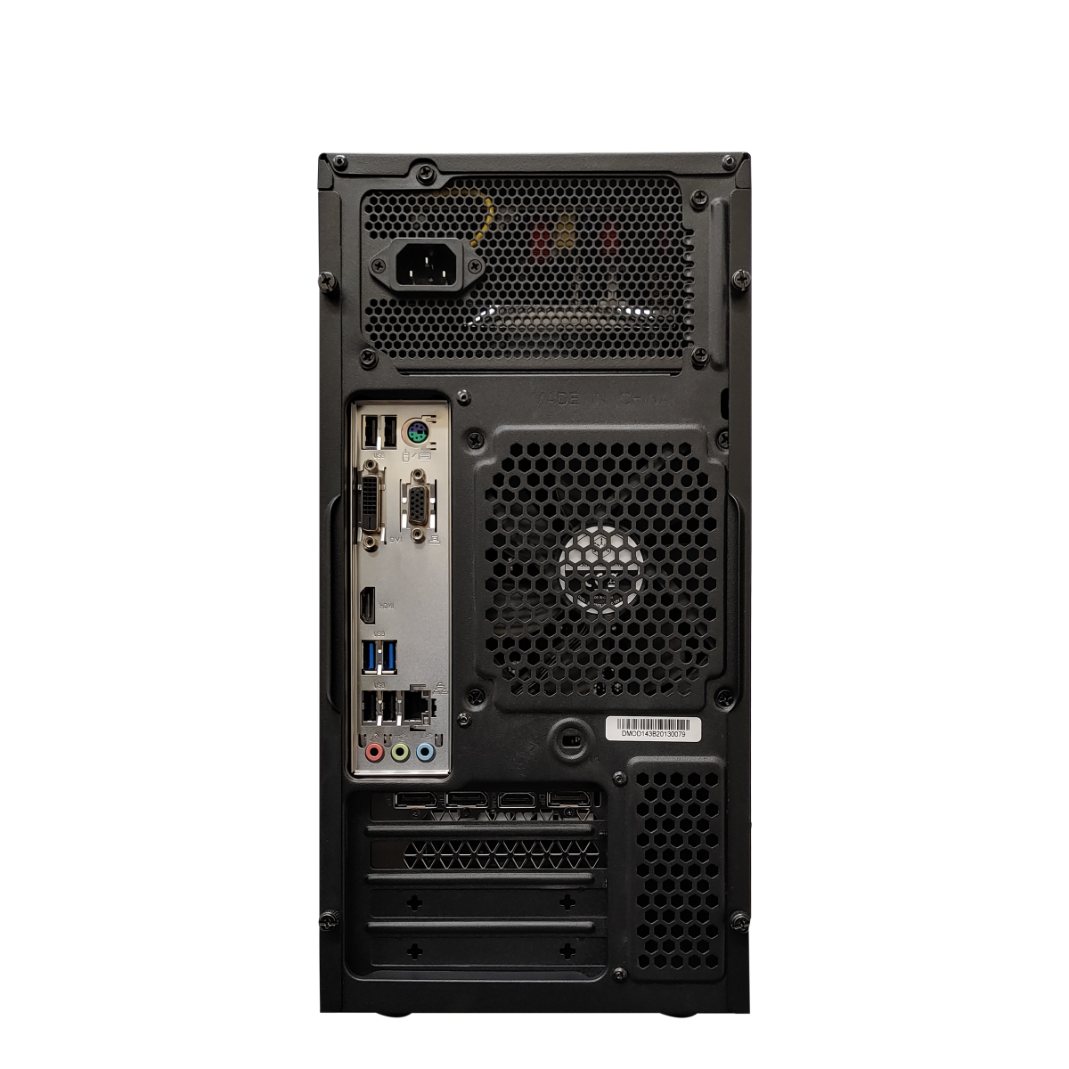

Local Video Outputs

1x True HD output

3x DisplayPort outputs

Up to 4 displays simultaneously

For initial configuration and server management

Memory32GB
Video CardNvidia RTX3060 or comparable
Video Card Resolution7680x4320
OS on SSD240GB SSD
Storage
Maximum StorageNo storage
 4TB HDD to export footage from your server
VMS features
Playback Functions

Calendar

Event search

Smart motion search

Thumbnail search

Timeline

PTZ controlONVIF
Recording Modes

Continuous

Motion + low res always

Motion + Object

Motion + Object + Low res

Motion detection

Object + Low res

Object only

System Operation

Graphical user interface (GUI)

Remote via DW Spectrum

USB mouse (included)

Network
Ethernet Ports1x 1G Ethernet (RJ45)
Pre-loaded VMS softwareDW Spectrum® Client
Remote Client

Cross-platform - Windows, Linux Ubuntu and Mac

DW Mobile Plus

DW Spectrum Mobile App

Electrical
Power Consumption

500W

A UPS is recommended

General
Accessories

Keyboard

Mouse

Operating Temperature and Humidity

20 ~ 90% RH

41 ~ 104 °F (5~40 °C)

Recorder Dimensions (H X W X D)7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm)
USB interfaceYes
Weight (barebone, HDD not included)11.8 lbs (5.35 kg)
CertificationCE  FCC  NDAA  ONVIF Conformant  TAA Compliance
Form FactorMid-size Tower
