Digital Watchdog - DW-BJRR2Y320T6 - Blackjack Rack 2U 26-bay server with 32GB dual processor, RAID5/6 options, Windows 10 Pro - 280TB
Part number:
DW-BJRR2Y320T6
Price:

Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Windows 10 Pro on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 280TB usable Raid storage, Raid 6, Dual Intel Xeon Silver Processor, 32GB of memory, 3x Mini DisplayPort outputs, Mini Display Port to true HD adapter (included), 1 display output at a time, 2x 10GB SFP+ Fiber, 2x 1G Ethernet (RJ45), iDRAC9 Enterprise, Graphic System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, Keyboard, Mouse and Rail kit are included, NDAA, TAA, UL, 5 Year Onsite Next Business Day Keep Your Hard Drive Warranty.



Max throughput and IP camera support

This Blackjackserver can record and manage single-sensor and multi-sensor. IP cameras of any resolution up to of 600Mbps throughput.



Next business day onsite hardware repair after remote diagnosis

If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.



Keep your drive after replacement to ensure data security

Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.



DW SpectrumIPVMS

DW SpectrumIPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.



Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.



Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.



Dual power supply

Redundancy for reliability.

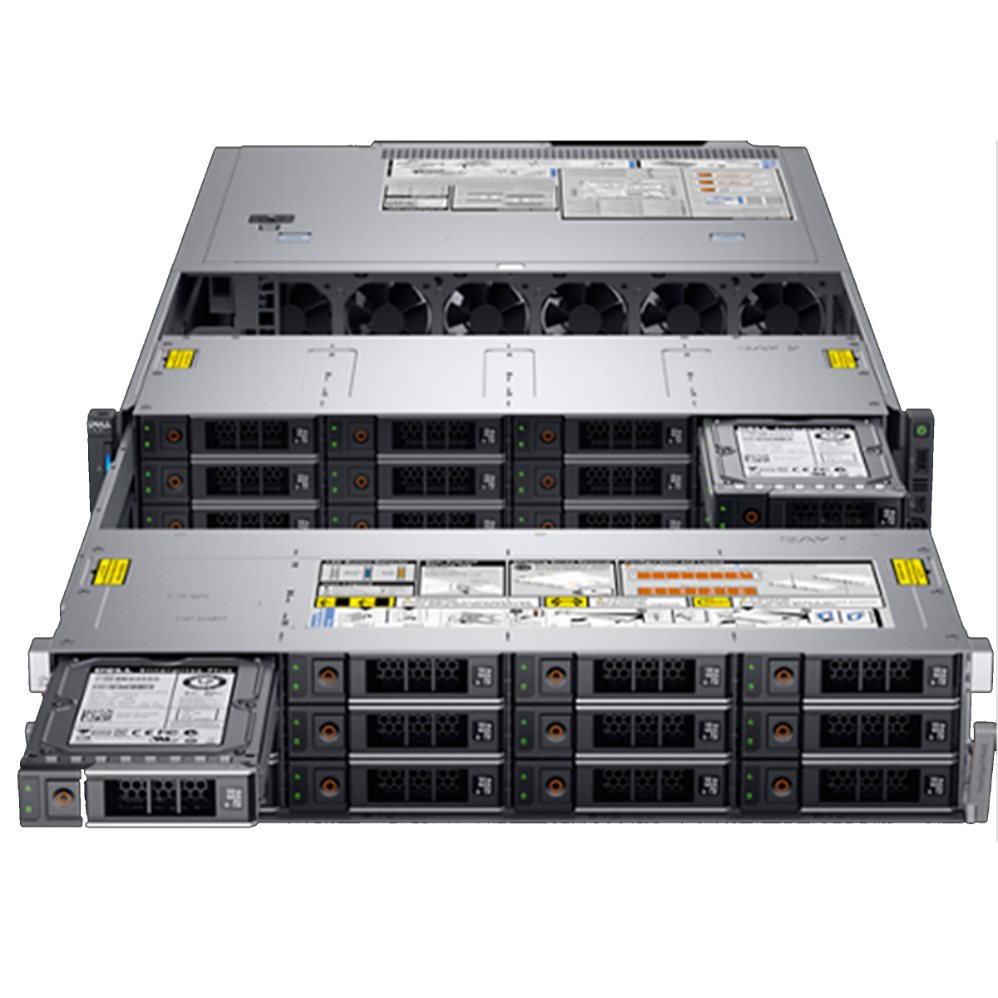

Hot-swappable HDDs

When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.



Features :

  • 5 year warranty, next business day on-site hardware service*, keep your hard drive  - *after remote diagnosis
  • Supports all ONVIF conformant IP cameras
  • Storage options 380-520TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Hot Swappable HDDs
  • OS RAID 1, Data RAID5, 6 options
  • Redundant power supply
  • 2x 1GB Base-T Ethernet Ports, 2x 10GB SFP+ Fiber
  • Windows 10® IoT, Ubuntu® Linux®, Windows Server 2019® OS options on separate SSD
  • Dedicated RAID controller
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
Specification:
Hardware
CPUDual Intel Xeon Silver processor
Display SpeedUp to 30fps per channel
Local Video Output ResolutionHD 1080p
Local Video Outputs3x Mini DisplayPort outputs, Mini Display Port to true HD adapter (included), 1 display output at a time
Memory32GB
Server's Operating SystemWindows Server 2022 Standard (DW-BJRR2Y380TS, DW-BJRR2Y380TS6, DW-BJRR2Y400TS6, DW-BJRR2Y420TS, DW-BJRR2Y420TS6, DW-BJRR2Y440TS, DW-BJRR2Y440TS6, DW-BJRR2Y460TS, DW-BJRR2Y460TS6, DW-BJRR2Y480TS, DW-BJRR2Y480TS6, DW-BJRR2Y500TS, DW-BJRR2Y500TS6, DW-BJRR2Y520TS, DW-BJRR2Y520TS6, DW-BJRR2Y260TS, DW-BJRR2Y260TS6, DW-BJRR2Y280TS6, DW-BJRR2Y300TS6, DW-BJRR2Y320TS6, DW-BJRR2Y340TS6, DW-BJRR2Y360TS6), Linux Ubuntu Desktop 20.04 OS (DW-BJRR2Y380TLX, DW-BJRR2Y380TLX6, DW-BJRR2Y400TLX6, DW-BJRR2Y420TLX, DW-BJRR2Y420TLX6, DW-BJRR2Y440TLX, DW-BJRR2Y440TLX6, DW-BJRR2Y460TLX, DW-BJRR2Y460TLX6, DW-BJRR2Y480TLX, DW-BJRR2Y480TLX6, DW-BJRR2Y500TLX, DW-BJRR2Y500TLX6, DW-BJRR2Y520TLX, DW-BJRR2Y520TLX6, DW-BJRR2Y260TLX, DW-BJRR2Y280TLX, DW-BJRR2Y300TLX, DW-BJRR2Y320TLX, DW-BJRR2Y340TLX, DW-BJRR2Y360TLX, DW-BJRR2Y260TLX6, DW-BJRR2Y280TLX6, DW-BJRR2Y300TLX6, DW-BJRR2Y320TLX6, DW-BJRR2Y340TLX6, DW-BJRR2Y360TLX6), Windows 10 IoT Enterprise LTSC (DW-BJRR2Y380T, DW-BJRR2Y380T6, DW-BJRR2Y400T6, DW-BJRR2Y420T, DW-BJRR2Y420T6, DW-BJRR2Y440T, DW-BJRR2Y440T6, DW-BJRR2Y460T, DW-BJRR2Y460T6, DW-BJRR2Y480T, DW-BJRR2Y480T6, DW-BJRR2Y500T, DW-BJRR2Y500T6, DW-BJRR2Y520T, DW-BJRR2Y520T6, DW-BJRR2Y260T, DW-BJRR2Y280T, DW-BJRR2Y300T, DW-BJRR2Y320T, DW-BJRR2Y340T, DW-BJRR2Y360T, DW-BJRR2Y260T6, DW-BJRR2Y280T6, DW-BJRR2Y300T6, DW-BJRR2Y320T6, DW-BJRR2Y340T6, DW-BJRR2Y360T6), Windows Server 2019 Standard
Video CardNVIDIA T400 2GB
Video CompressionH.264, H.265
OS on SSD2x 240GB SSD (RAID1 mirrored)
Max throughput (Mbps)600Mbps
Storage
Raw internal storage options260TB  280TB  300TB  320TB  340TB  360TB  380TB  400TB  420TB  440TB  460TB  480TB  500TB  520TB
RAID OptionsOS RAID1: RAID5 (DW-BJRR2Y380T, DW-BJRR2Y380TLX, DW-BJRR2Y380TS, DW-BJRR2Y420T, DW-BJRR2Y420TLX, DW-BJRR2Y420TS, DW-BJRR2Y440T, DW-BJRR2Y440TLX, DW-BJRR2Y440TS, DW-BJRR2Y460T, DW-BJRR2Y460TLX, DW-BJRR2Y460TS, DW-BJRR2Y480T, DW-BJRR2Y480TLX, DW-BJRR2Y480TS, DW-BJRR2Y500T, DW-BJRR2Y500TLX, DW-BJRR2Y500TS, DW-BJRR2Y520T, DW-BJRR2Y520TLX, DW-BJRR2Y520TS, DW-BJRR2Y260TS, DW-BJRR2Y260T, DW-BJRR2Y280T, DW-BJRR2Y300T, DW-BJRR2Y320T, DW-BJRR2Y340T, DW-BJRR2Y360T, DW-BJRR2Y260TLX, DW-BJRR2Y280TLX, DW-BJRR2Y300TLX, DW-BJRR2Y320TLX, DW-BJRR2Y340TLX, DW-BJRR2Y360TLX), RAID6 (DW-BJRR2Y380T6, DW-BJRR2Y380TLX6, DW-BJRR2Y380TS6, DW-BJRR2Y400T6, DW-BJRR2Y400TLX6, DW-BJRR2Y400TS6, DW-BJRR2Y420T6, DW-BJRR2Y420TLX6, DW-BJRR2Y420TS6, DW-BJRR2Y440T6, DW-BJRR2Y440TLX6, DW-BJRR2Y440TS6, DW-BJRR2Y460T6, DW-BJRR2Y460TLX6, DW-BJRR2Y460TS6, DW-BJRR2Y480T6, DW-BJRR2Y480TLX6, DW-BJRR2Y480TS6, DW-BJRR2Y500T6, DW-BJRR2Y500TLX6, DW-BJRR2Y500TS6, DW-BJRR2Y520T6, DW-BJRR2Y520TLX6, DW-BJRR2Y520TS6, DW-BJRR2Y260TS6, DW-BJRR2Y280TS6, DW-BJRR2Y300TS6, DW-BJRR2Y320TS6, DW-BJRR2Y340TS6, DW-BJRR2Y360TS6, DW-BJRR2Y260T6, DW-BJRR2Y280T6, DW-BJRR2Y300T6, DW-BJRR2Y320T6, DW-BJRR2Y340T6, DW-BJRR2Y360T6, DW-BJRR2Y260TLX6, DW-BJRR2Y280TLX6, DW-BJRR2Y300TLX6, DW-BJRR2Y320TLX6, DW-BJRR2Y340TLX6, DW-BJRR2Y360TLX6)
Max HDD Bay26x SAS HDDs
Maximum Storage260TB (240TB, RAID5) (DW-BJRR2Y260TS, DW-BJRR2Y260T, DW-BJRR2Y260TLX, DW-BJRR2Y260TS6), 260TB (220TB, RAID6) (DW-BJRR2Y260TS6, DW-BJRR2Y280TS6, DW-BJRR2Y260T6, DW-BJRR2Y260TLX6), 280TB (260TB, RAID5) (DW-BJRR2Y280T, DW-BJRR2Y280TLX, DW-BJRR2Y280TS6), 280TB (240TB, RAID6) (DW-BJRR2Y280TS6, DW-BJRR2Y280T6, DW-BJRR2Y280TLX6), 300TB (260TB, RAID6) (DW-BJRR2Y300T, DW-BJRR2Y300TLX, DW-BJRR2Y300TS6, DW-BJRR2Y300T6, DW-BJRR2Y300TLX6), 320TB (300TB, RAID5) (DW-BJRR2Y320T, DW-BJRR2Y320TLX, DW-BJRR2Y320TS6), 320TB (280TB, RAID6) (DW-BJRR2Y320TS6, DW-BJRR2Y320T6, DW-BJRR2Y320TLX6), 340TB (320TB, RAID5) (DW-BJRR2Y340T, DW-BJRR2Y340TLX, DW-BJRR2Y340TS6), 340TB (300TB, RAID6) (DW-BJRR2Y340TS6, DW-BJRR2Y340T6, DW-BJRR2Y340TLX6), 360TB (340TB, RAID5) (DW-BJRR2Y360T, DW-BJRR2Y360TLX, DW-BJRR2Y360TS6), 360TB (320TB, RAID6) (DW-BJRR2Y360TS6, DW-BJRR2Y360T6, DW-BJRR2Y360TLX6), 380TB (360TB, RAID5) (DW-BJRR2Y380T, DW-BJRR2Y380TLX, DW-BJRR2Y380TS), 380TB (340TB, RAID6) (DW-BJRR2Y380T6, DW-BJRR2Y380TLX6, DW-BJRR2Y380TS6), 400TB (360TB, RAID6) (DW-BJRR2Y400T6, DW-BJRR2Y400TLX6, DW-BJRR2Y400TS6), 420TB (380TB, RAID6) (DW-BJRR2Y420T6, DW-BJRR2Y420TLX6, DW-BJRR2Y420TS6), 420TB (400TB, RAID5) (DW-BJRR2Y420T, DW-BJRR2Y420TLX, DW-BJRR2Y420TS), 440TB (420TB, RAID5) (DW-BJRR2Y440T, DW-BJRR2Y440TLX, DW-BJRR2Y440TS), 440TB (400TB, RAID6) (DW-BJRR2Y440T6, DW-BJRR2Y440TLX6, DW-BJRR2Y440TS6), 460TB (440TB, RAID5) (DW-BJRR2Y460T, DW-BJRR2Y460TLX, DW-BJRR2Y460TS), 460TB (420TB, RAID6) (DW-BJRR2Y460T6, DW-BJRR2Y460TLX6, DW-BJRR2Y460TS6), 480TB (460TB, RAID5) (DW-BJRR2Y480T, DW-BJRR2Y480TLX, DW-BJRR2Y480TS), 480TB (440TB, RAID6) (DW-BJRR2Y480T6, DW-BJRR2Y480TLX6, DW-BJRR2Y480TS6), 500TB (480TB, RAID5) (DW-BJRR2Y500T, DW-BJRR2Y500TLX, DW-BJRR2Y500TS), 500TB (460TB, RAID6) (DW-BJRR2Y500T6, DW-BJRR2Y500TLX6, DW-BJRR2Y500TS6), 520TB (480TB, RAID6) (DW-BJRR2Y520T6, DW-BJRR2Y520TLX6, DW-BJRR2Y520TS6), 520TB, 520TB (500TB, RAID5) (DW-BJRR2Y520T, DW-BJRR2Y520TLX, DW-BJRR2Y520TS)
VMS features
Playback FunctionsCalendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ controlONVIF
Recording ModesContinuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System OperationGraphical user interface (GUI), Remote via DW Spectrum & USB mouse (included)
Network
Ethernet Ports2x 10GB SFP+ Fiber, 2x 1G Ethernet (RJ45), iDRAC9 Enterprise
Pre-loaded VMS softwareDW Spectrum®
Remote ClientCross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App
Electrical
Power Consumption1000W dual power, A UPS is recommended, Redundant power supply
General
AccessoriesKeyboard, Mouse
Included IP licenses8 (2xDW-SPECTRUMLSC004)
Operating Temperature and Humidity20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Rail kitIncluded
Recorder Dimensions (H X W X D)3.41" x 17.6" x 31.9" (86.61 x 447.04 x 810.26mm)
Recording Licenses (Optional. Sold Separately)Custom-ordered licenses are available by request, DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses, DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses, DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License, DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses, DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses, DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses, DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses, DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses, DW-SPIOLSC001 - Single DW Spectrum® I/O Module License, DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License, Lifetime upgrades are included with no annual renewal fees.
USB interfaceYes
Warrantykeep your hard drive, Next business day on-site hardware service (after remote diagnosis)
Weight (barebone, HDD not included)88.2 lbs (40 kg)
CertificationCE  FCC  NDAA  ONVIF Conformant  TAA Compliance  UL Listed
Form FactorRack mount
