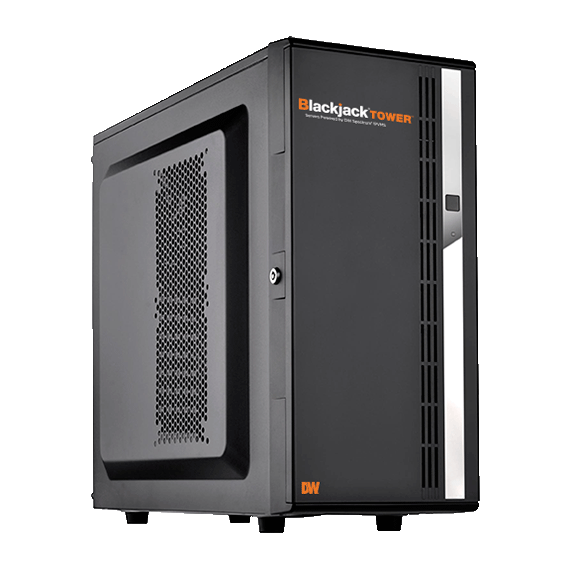

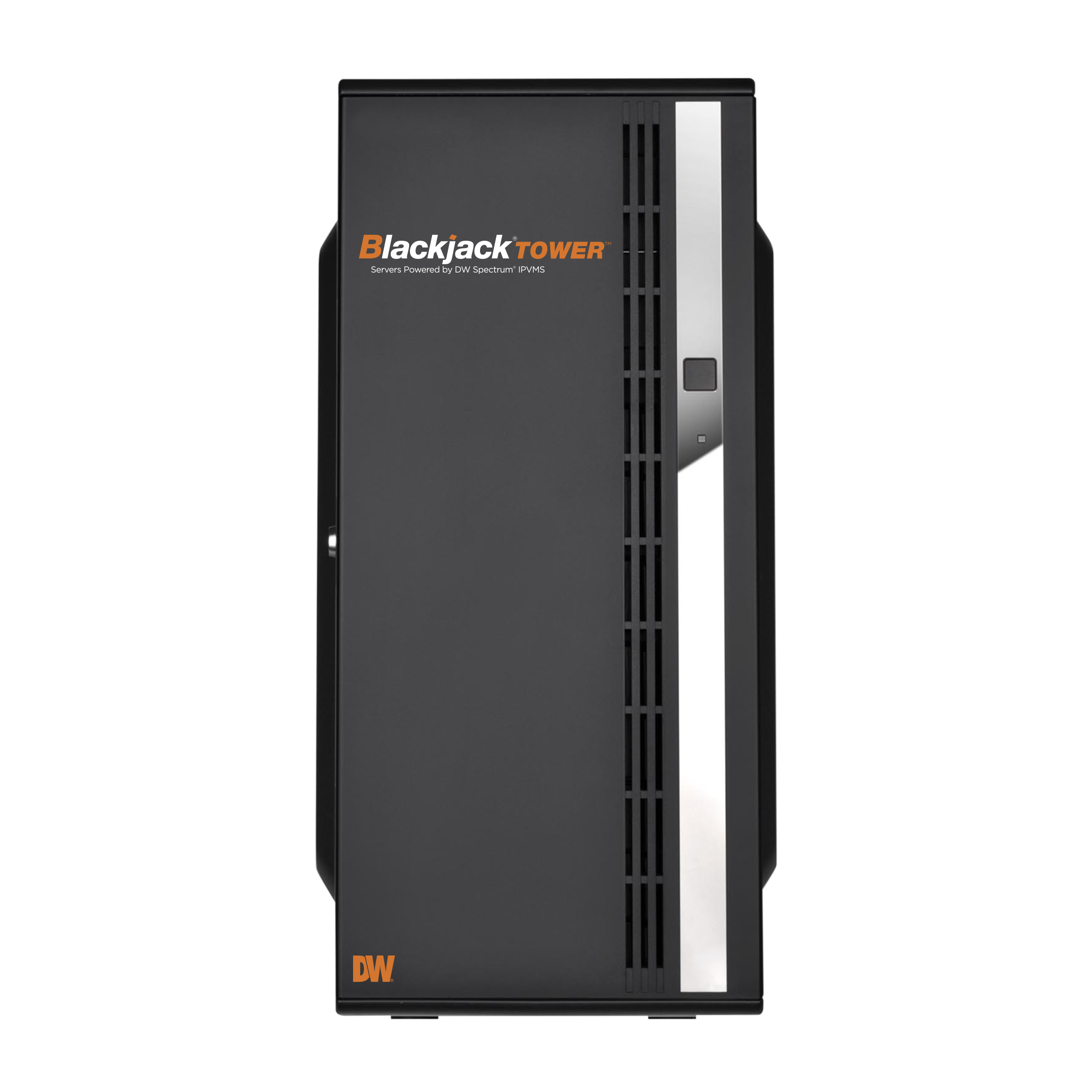

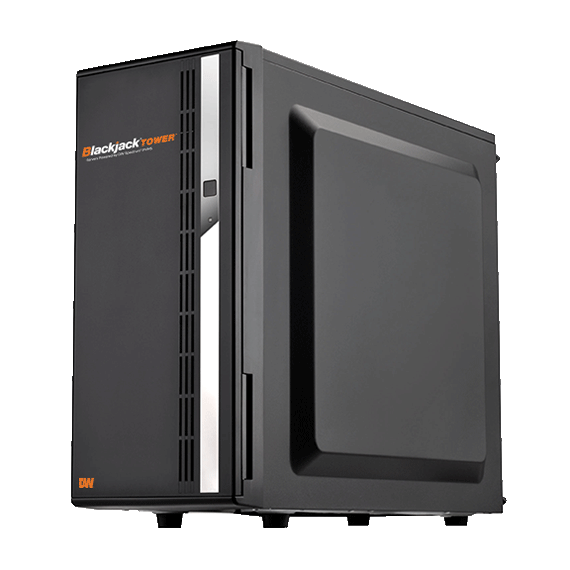

Digital Watchdog - DW-BJTR716120T - Blackjack tower, Windows OS on SSD, 600Mbps throughput, Intel i7, 16GB RAM, hot-swappable,RAID6 80TB usable storage, UL
Part number:
DW-BJTR716120T
Price:
Blackjack Tower servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 600Mbps throughput. The servers are NDAA/TAA compliant and include Windows 10, Windows Server or Linux Ubuntu OS on a separate SSD. Hardware features include an Intel i7 processor, dual network cards and local true HD, DVI and DisplayPort output up to 4K resolution. The servers come pre-loaded with DW Spectrum IPVMS and four complimentary recording licenses, provide up to 112B internal storage with RAID5 and RAID6 options, hot-swappable drives, are ONVIF conformant and come with a 5-year limited warranty. All Blackjack Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.
Max throughput and IP camera support
This Blackjack server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput

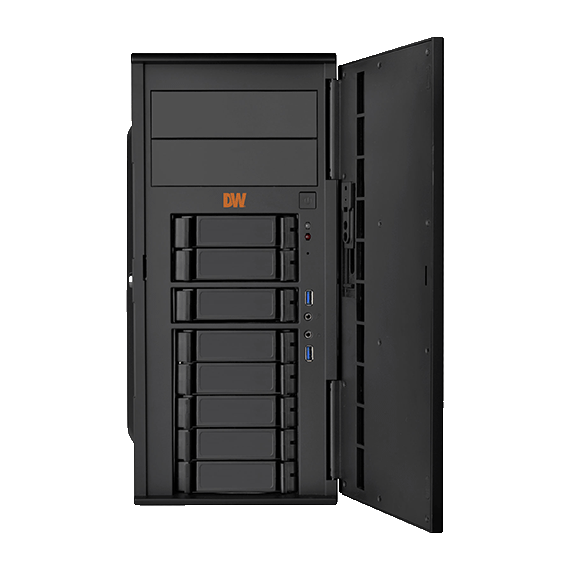

Hot-swappable HDDs
When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.
Storage mirroring RAID 5
Add extra security to your video surveillance system by protecting recorded data and overcoming data loss in the case of a hard drive failure.
OS on dedicated SSD
DW’s servers provide a dedicated SSD for the OS. This results in faster boot time, faster application loading times and improved system responsiveness.
DW Spectrum IPVMS
DW Spectrum IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
ONVIF Conformant
DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
Features:
- Supports all ONVIF conformant IP cameras
- Up to 140TB raw internal storage
- Hot-swappable HDDs
- OS on SSD
- RAID5, RAID6 options
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput (max 420Mbps with RAID6)
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual-stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
- 5 year limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | HD 1080p |

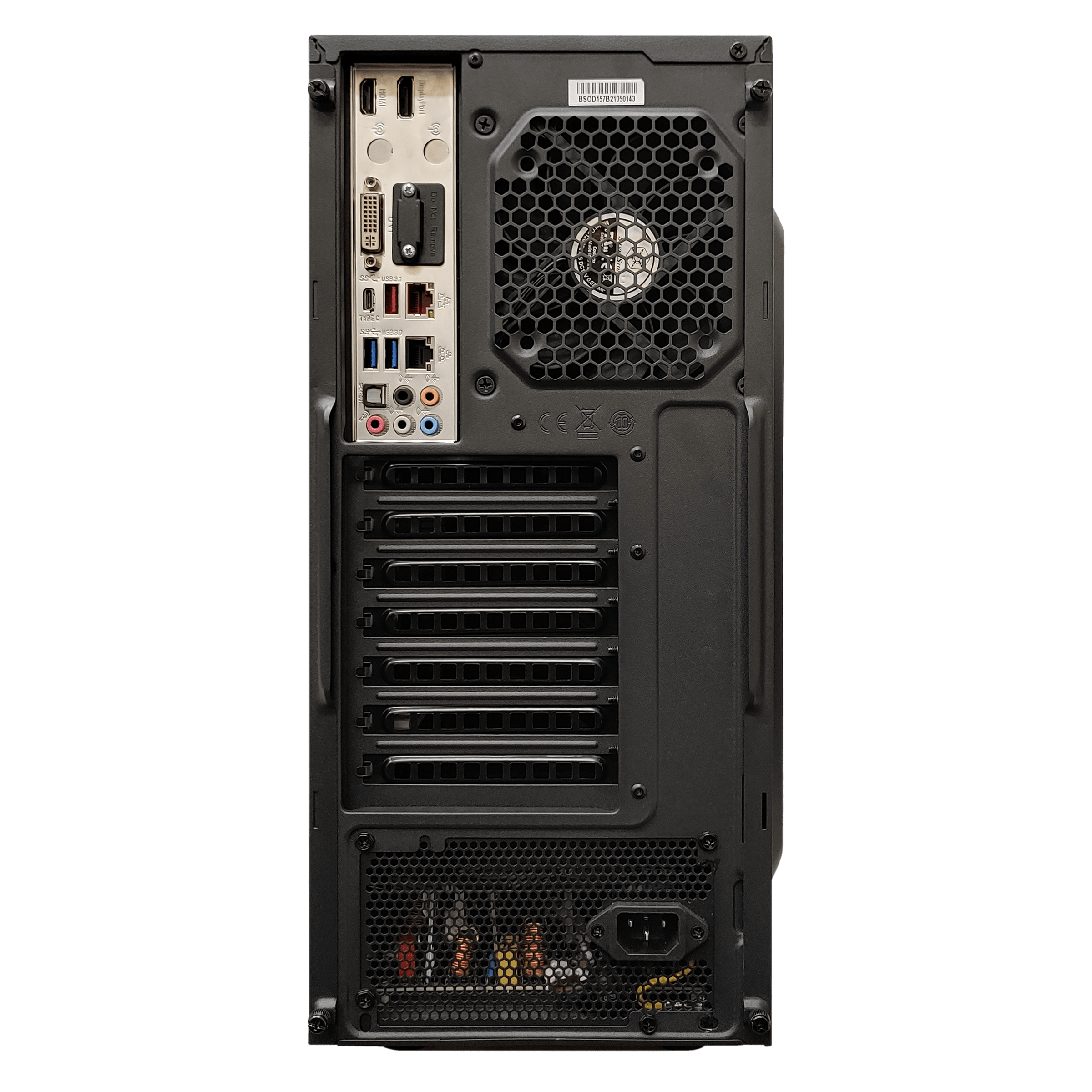

| Local Video Outputs | For initial configuration and server management, 1 DisplayPort, DVI, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | On-board Intel Graphics |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJTR715100TLX, DW-BJTR715120TLX, DW-BJTR715140TLX, DW-BJTR716100TLX, DW-BJTR716120TLX, DW-BJTR716140TLX), Windows Server 2019 Standard (DW-BJTR715100TS, DW-BJTR715120TS, DW-BJTR715140TS, DW-BJTR716100TS, DW-BJTR716120TS, DW-BJTR716140TS), Windows 10 IoT Enterprise LTSC (DW-BJTR715100T, DW-BJTR715120T, DW-BJTR715140T, DW-BJTR716100T, DW-BJTR716120T, DW-BJTR716140T) |
| OS on SSD | 240GB SSD |
| Max throughput (Mbps) | RAID5: 600Mbps, RAID6: 420Mbps |
| STORAGE | |
| Raw internal storage options |     |
| RAID Options | RAID5 (DW-BJTR715100T, DW-BJTR715120T, DW-BJTR715140T, DW-BJTR715100TLX, DW-BJTR715120TLX, DW-BJTR715140TLX, DW-BJTR715100TS, DW-BJTR715120TS, DW-BJTR715140TS), RAID6 (DW-BJTR716100T, DW-BJTR716120T, DW-BJTR716140T, DW-BJTR716100TLX, DW-BJTR716120TLX, DW-BJTR716140TLX, DW-BJTR716100TS, DW-BJTR716120TS, DW-BJTR716140TS) |
| Max HDD Bay | 7 x SATA HDD |
| Maximum Storage | 100TB (60TB, RAID6) (DW-BJTR716100T, DW-BJTR716100TLX, DW-BJTR716100TS), 100TB (80TB, RAID5) (DW-BJTR715100T, DW-BJTR715100TLX, DW-BJTR715100TS), 120TB (100TB, RAID5) (DW-BJTR715120T, DW-BJTR715120TLX, DW-BJTR715120TS), 120TB (80TB, RAID6) (DW-BJTR716120T, DW-BJTR716120TLX, DW-BJTR716120TS), 140TB (100TB, RAID6) (DW-BJTR716140T, DW-BJTR716140TLX, DW-BJTR716140TS), 140TB (120TB, RAID5) (DW-BJTR715140T, DW-BJTR715140TLX, DW-BJTR715140TS), 140TB |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 500W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Recorder Dimensions (H X W X D) | 8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Weight (barebone, HDD not included) | 19.7 lbs (8.93 kg) |
| Certification |       |
| Form Factor | Full-size Tower |
