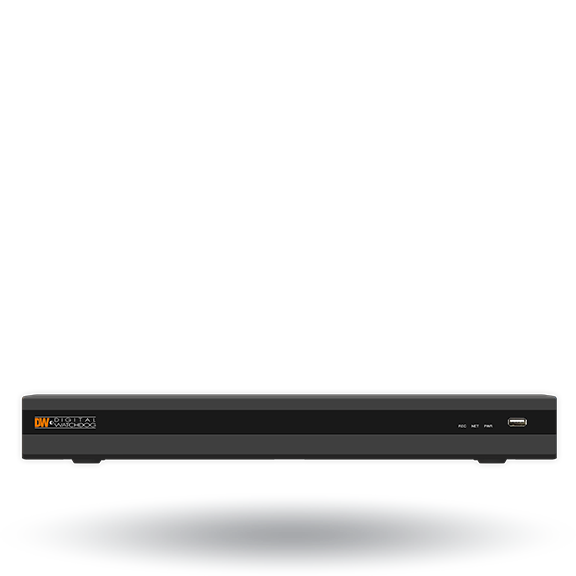

VMAX A1 G4 Universal HD over Coax 16-channel DVR with 10TB HDD
VMAX A1 G4 is an embedded DVR that records standard analog, HD-Analog and HD-TVI formats at up to 4K resolution and 4K local video output. The DVR is a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. Up the Coax (UTC) remote configuration is available with all compatible cameras. The 16-channel VMAX A1 G4 model is NDAA and TAA compliant, and is available with up to 32TB of storage.
PathFinder
Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
Status Monitoring
A real-time graphical representation of all system connections. Receive connection alerts via email or text.
Group Recording
Designate a group of cameras to respond to an alert from one camera.
Channel Swap
Swap a camera’s channel assignment without changing the cable connections.
C3 CMS
C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Real-Time Streaming Protocol (RTSP)
RTSP provides a live video stream for live streaming applications between DW VMAX G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.
Features
- Universal HD over Coax DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
- Advanced H.265, H.264 Linux embedded DVR
- 16-channels, 480fps real-time 30fps recording
- Up to 4K recording resolution at 112fps (7fps per channel)
- PathFinder easy remote connection
- Remote management with C3 CMS
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iOS and Android devices
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects the camera signal automatically
- Instant channel swap, no need to disconnect or reboot the DVR
- Snapshot Notify: programmable interval snapshot email notifications
- 4K (3840 x 2160) True HD, VGA and CVBS video outputs
- Up to 32TB internal storage
- Transfer real-time data using Real Time Streaming Protocol (RTSP)
- HDD calculation and auto-recording configuration
- Thumbnail search with hour and 5-minute previews
- 10-second jump buttons for playback and fast forward
- Event notifications via email, C3 CMS and push notifications
- Compatible with DW Spot Monitoring module for Public View Monitors
- 8 audio inputs, 1 audio output
- 16 sensor inputs, 4 relay outputs
- Simple and free DDNS service
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- NDAA/TAA compliant
- 5 year limited warranty
| Hardware | |
| Display Modes | 1 10 16 4 6 9 Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768 1280x1024 1280x720 1920x1080 (1080p) 800x600 3840×2160 (4K) 2560x1440 (1440p) |

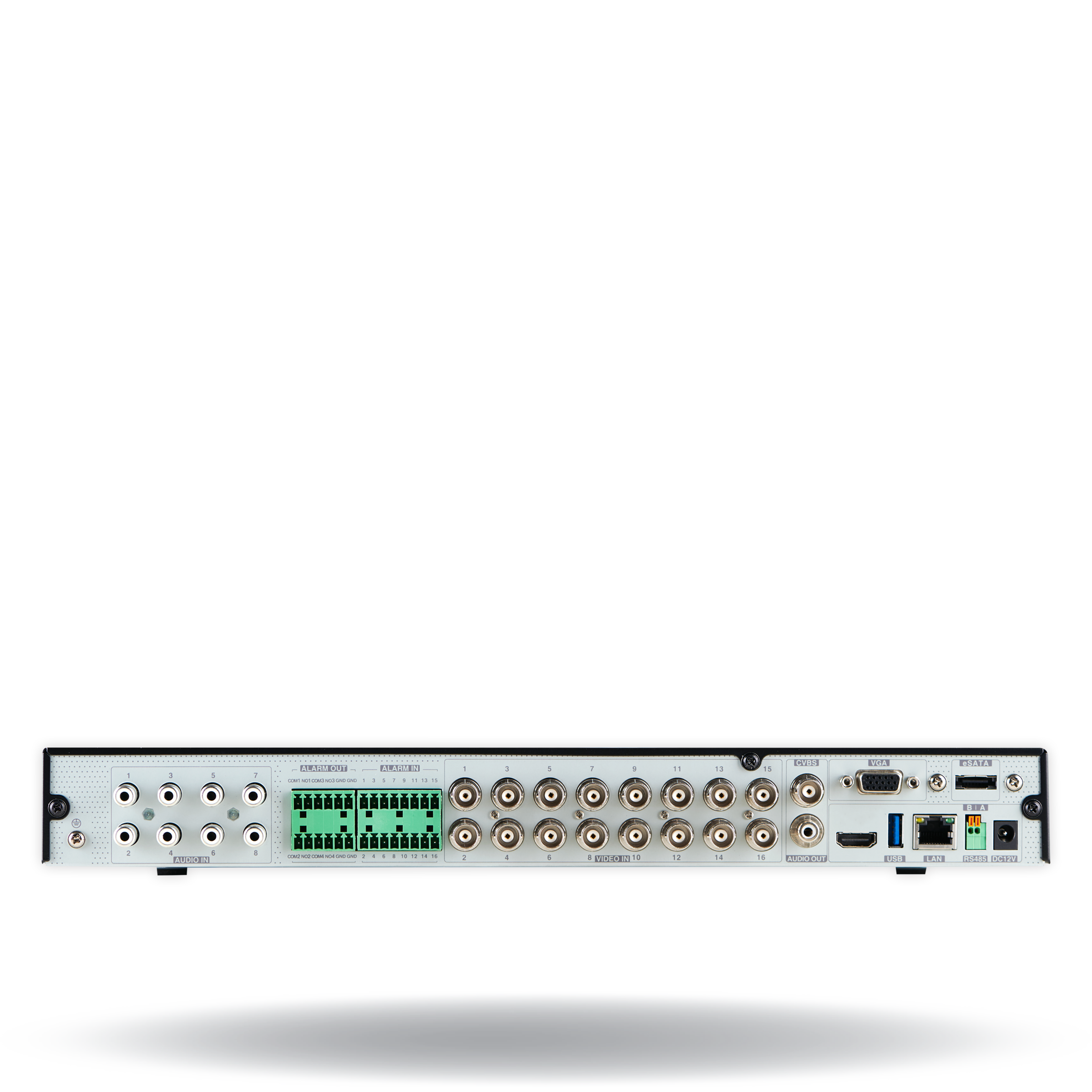

| Local Video Outputs | 1x CVBS output 1x True HD output 1x VGA output |
| Max Supported Recording Resolution | 4K (3840×2160) |
| Server's Operating System | Embedded Linux® |
| Supported Signals | Analog up to 960H HD-Analog HD-TVI |
| Video Compression | H.264 H.265 |
| Input channels | 16 Channels |
| Storage | |
| Raw internal storage options | 2TB, 4TB, 6TB, 8TB, 10TB, 12TB, 16TB, 20TB, 32TB |
| HDD healthcheck | Temperature, S.M.A.R.T. with email notifications |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | No storage (DW-VA1G416) 2TB (DW-VA1G4162T) 4TB (DW-VA1G4164T) 6TB (DW-VA1G4166T) 8TB (DW-VA1G4168T) 10TB (DW-VA1G41610T) 12TB (DW-VA1G41612T) 16TB (DW-VA1G41616T) 20TB (DW-VA1G41620T) 32TB (DW-VA1G41632T) |
| VMS features | |
| Alarm in/out | 16 alarm outputs 4 alarm outputs |
| Audio in/out | 1 output 8 inputs |
| Performance features | Camera Color Control Covert Channel Digital Zoom in live and playback Import and export settings Real-time temp alert |
| Playback Functions | Calendar Event search Smart motion search Thumbnail search Timeline |
| Playback speed | x1 x16 x2 x32 x4 x64 x8 x99 |
| Post-recording | 0~5 minutes |
| Pre- recording | 0~5 seconds |
| PTZ control | RS485 UTC |
| Recording Modes | Continuous Emergency Motion detection Pre- and post-alarm Quick backup Scheduled Sensor |
| Recording Resolution and Recording Rate | 1280x720 (HD): 480fps 1920x1080 (HD): 480fps 2560x1600 (4MP): 240fps 2560x1944 (5MP): 192fps 3MP (1920x1536): 288fps 4K (3840x2160): 112fps 720x480 (SD): 480fps 960x480 (960H): 480fps |
| System Operation | Graphical user interface (GUI) Joystick Controller (optional) USB mouse (included) |
| Network | |
| Backup | Local backup via USB Network backup via CMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network FTP USB |
| Protocol | DHCP RTSP Static fixed IP uPNP |
| System recovery after power failure | Auto-reboot and journaling file system |
| Transation verification | 4K (3840x2160): 112fps |
| Transmission speed live | 1280x720 (HD): 480fps 1920x1080 (HD): 480fps 2560x1600 (4MP): 240fps 2560x1944 (5MP): 192fps 3MP (1920x1536): 288fps 960x480/576 (960H): 480fps |
| Remote Client | C3 CMS DW Mobile Plus |
| Electrical | |
| Power Consumption | 48W 60W A UPS is recommended |
| General | |
| Accessories | Mouse |
| Audio codec | ADPCM |
| Operating Temperature and Humidity | 0 ~ 80% RH 10~90% RH 32~113 °F (0~45 °C) 41 ~ 104 °F (5~40 °C) |
| Rail kit | DW-G419RE (optional. Sold separately) DW-VAP19RE - 19" rackmount ears |
| Recorder Dimensions (H X W X D) | 1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm) 15.15" x 12.4" x 1.88" (385 × 315 × 48 mm) |
| Serial ports | RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Certification |     |
| Form Factor | Embedded |
