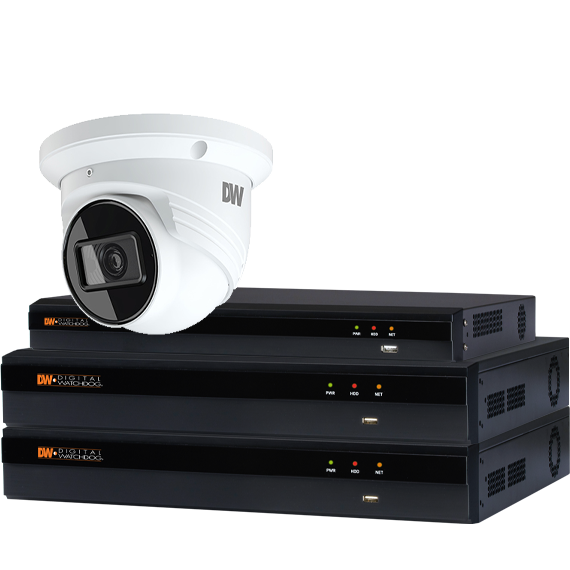

Digital Watchdog - DW-VP9T9KIT24 - BUNDLE AND SAVE 20% - (4) 5MP Fixed Vandal Turret cameras with 2TB HDD NVR Consist of 1 - DW-VG492T4P & 4 - DWC-MT95Wi28TW
Part number:
DW-VP9T9KIT24
Price:
The VMAX IP Plus is an easy to use to use PoE NVR that allows youto go from power up to monitoring in less than three minutes! Combinewith the DW Witness app to turn the camera on a smartphone or tabletinto a surveillance camera that can be viewed and recorded on the NVR.Available with 16 PoE ports, the NVRs can record and manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
These MEGApix IP cameras are NDAA compliant and delivercrystal-clear images at 5MP resolution and real-time 30fps. TheIP67-rated turret camera features 2.8mm and 3.6mm fixed lensoptions and a 360° camera gimbal for absolute view adjustment.Added intelligence includes line crossing, perimeter intrusion, videotampering detection and object classification. All MEGApix camerasare ONVIF conformant, assuring their successful integration with anyopen platform solution on the market.
Features :
- Kits w/ 2TB, 3TB and 4TB of storage capacity.
- Supports all ONVIF conformant IP cameras.
- Record/manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
- Local power for 4, 8, or 16 IP cameras via resident PoE switch.
- Kits w/ 4, 8, or 12 turret IP cameras with 2.8mm fixed lens.
- Smart IR™, True WDR, H.265, H.264, MJPG.
| Specification (5MP turret IP camera) | ||
| IMAGE | DWC-MT95Wi28T | DWC-MT95Wi36T |
| Image sensor | 5MP 1/2.7” CMOS | |
| Total pixels | 2592 (H) x 1944 (V) | |
| Minimum scene illumination | 0.02 lux (color) | |
| 0.0 lux (B/W) | ||
| S/N ratio | 50dB | |
| LENS | ||
| Focal length | 2.8mm, F1.6 | 3.6mm, F1.6 |
| Lens type | Fixed lens | |
| Field of view (FoV) | 98.5° | 81.4° |
| IR distance | 100ft range | |
| I/O | ||
| Audio in / out | 1 audio input and 1 microphone built-in | |
| Audio compression | G.711A / U | |
| OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/30s ~ 1/100000s | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W), schedule | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR low, middle, high | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zone | 4 programmable privacy masks | |
| Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects) | |
| Backlight compensation (BLC) | Yes | |
| De-Fog | Yes | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via email or FTP server | |
| Memory slot | Micro SD / SDHC / SDXC card up to 256GB (card not Included) | |
| NETWORK | ||
| LAN | 802.3 compliance 10/100 LAN | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P (60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 64 Kbps ~ 8 Mbps | |
| Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS | |
| Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows® | |
| Browser: Internet Explorer | ||
| Video management software | DW Spectrum® IPVMS | |
| ENVIRONMENTAL | ||
| Operating temperature | -22°F ~ 140°F (-30°C ~ 60°C) | |
| Operating humidity | 95% RH (non–condensing) | |
| IP rating | IP67-rated | |
| IK rating | IK10 impact-resistant | |
| Other certifications | FCC, CE, ROHS, POE, ONVIF | |
| ELECTRICAL | ||
| Power requirement | DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included) | |
| Power consumption | 7W | |
| MECHANICAL | ||
| Material | Metal turret housing | |
| Dimensions | 4.66” x 3.58” (118.6 x 91 mm) | |
| Weight | 1.01 lb (0.46 kg) | |
| Warranty | 5 year warranty | |
| Specification (4-channel PoE NVR with 5 bonus channels) | ||
| VIDEO | ||
| Operating system | Embedded Linux® | |
| System | Channel | 9 channel |
| No. of PoE | 4 Ch | |
| Max supported resolution | IP camera max. 4K (3840×2160) | |
| Communication protocol | ONVIF® profile S | |
| PoE type | 100Mbps, 802.3at | |
| Display | Speed | 270fps |
| Screen mode | 1, 4 and 9 | |
| Video out | Monitor | True HD and VGA |
| Resolution | 3840×2160 (4K), 1920x1080, 1280x1024, 1024x768 | |
| System operation | USB mouse, PTZ control by keyboard (optional) | |
| PERFORMANCE | ||
| Recording speed | Up to 270fps up to 4K (2160p) resolution | |
| Max. throughput | 40 Mbps | |
| Recording streaming | Dual-stream | |
| Recording modes | Continuous, scheduled, sensor and motion detection recording | |
| Pre- and post-alarm recording, emergency recording, quick backup | ||
| Playback and search | Speed | x1, x2, x4, x8, x16, x32, x64, x99 |
| Channel and resolution | 1 and 4 main-stream, 9 & 16: sub-stream | |
| Function | Timeline, calendar (date and time), event search, thumbnail search, smart motion search | |
| Audio input / output | 1Ch input/1Ch output | |
| Alarm input / relay output | 4Ch inputs / 1Ch output | |
| PTZ control | RS-485, ONVIF | |
| Storage | HDD interface | 1x SATA HDD |
| Max. internal storage | Up to 16BT | |
| HDD healthcheck | Temperature, S.M.A.R.T. with email notifications Real-time temp alert | |
| Transaction verification | Text-in Based (USB to Serial support, TCP/IP Network), Display POS Data on Live & Playback | |
| NETWORK | ||
| LAN | 1,000Mbps Ethernet (RJ45) | |
| Protocols | IPv4, TCP/IP, DHCP, HTTP, RTSP, STMP, FTP, Zero Configuration, NTP, DDNS | |
| Access | Web viewer | Live, playback and configuration, up to 10 connections |
| Video streaming functions | Dual recording for live and playback and dual stream for local recording and network transmission | |
| PathFinder™ easy end-to-end remote connection | ||
| Monitoring software | C3™ CMS, DW Mobile Plus™ | |
| Network functions | Live monitoring, remote playback and file backup | |
| Remote system control | Remote system reboot, system management, notifications and remote PTZ control | |
| Remote Time sync | Time synchronization to an NTP server (pool.ntp.org) | |
| Remote system notifications | Notifications for system health, events and alarms | |
| System recovery after power failure | Auto-reboot and journaling file system | |
| Other function | Firmware upgrade | FTP, USB and CMS over Network |
| Back-up | Local backup by USB, network backup by CMS Import and export settings, watermark and AVI file backup | |
| Special features | Snapshot Notify™: Interval camera image verification Event and push notifications via email, text and C3™ Digital Zoom in live and playback POS text-in based (USB to serial support, TCP/IP network) | |
| Mobile client | DW Mobile Plus app for Apple® and Android® devices DW Witness™ turns a smartphone or tablet into a surveillance camera | |
| Health check | Real-time system, network and PoE status monitoring | |
| GENERAL | ||
| Operating temperature and humidity | 32~113 °F (0~45 °C) / 10~90% RH | |
| Certification | CE , FCC, KCC, NDAA, TAA | |
| System | Power requirement | 48V DC, 1.25A |
| Power consumption | 60W (recorder + PoE ports) | |
| PoE | Max power per port | 802.3at POE+ (Class4), up to 30W per port |
| Total PoE power budget | 48W | |
| Dimension (W x D x H) | 11.81” x 9.8” x 1.77” (300 × 249 × 45 mm) | |
| Warranty | 5 year limited | |
Name
Description
Size
Downloads
File
Camera Datasheet
0.7mb
File
NVR Datasheet
0.8mb
