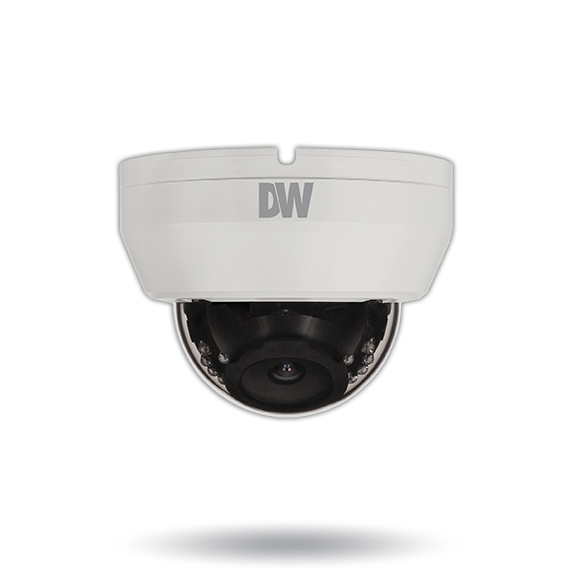

STAR-LIGHT 2.1MP Universal HD over COAX cameras deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. STAR-LIGHT Universal HD over COAX cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Universal HD over Coax Technology
Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.
Star-Light Super Low-Light Technology
Star-Light Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light cameras can provide unparalleled details in total darkness.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light super low light technology
- 2.1MP/1080p 1/3" image sensor at real-time 30fps
- 2.8~12mm varifocal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Highlight masking exposure (HME)
- Auto sensing 24VAC/12VDC with line lock
- Easy icon driven OSD menu with built-in joystick
- Programmable Privacy Zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/3" CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0.3 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
I/O | |
| Alarm output | 1 alarm output |
LENS | |
| Focal length | 2.8 ~ 12mm |
| Lens type | Varifocal p-iris lens |
| Field of view (FoV) | 91 - 28° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, FLC |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 100dB |
| Dynamic range compressor (DRC) | Off, low, middle, high |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / auto-ex / preset / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~10 |
| Motion detection | Yes |
| Privacy zones | 16 programmable privacy zones |
| Sharpness | 0 ~ 10 |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
| RS485 / UTP built-in | Pelco D / Pelco C |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V (LED OFF): 2.94W DC12V (LED ON): 5.22W |
| AC24V (LED OFF): 2.5W AC24V (LED ON): 4.35W | |
MECHANICAL | |
| Material | Plastic indoor housing, polycarbonate dome |
| Dimensions | 4.72" x 3.52" (120 x 89.4 mm) |
| Weight | 0.5lbs (0.226kg) |
