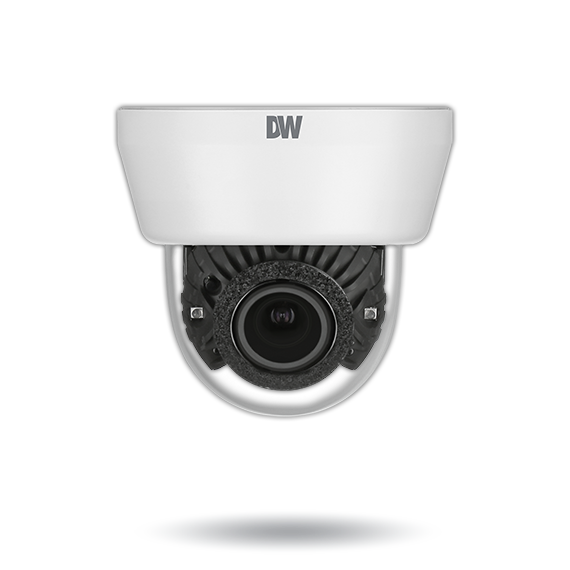

Featuring Star-Light Plus color in near-total darkness, the 4K Universal HD over Coax cameras are NDAA/TAA compliant, delivering crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal. The unique Snapit housing makes installation a snap! And can be controlled via the same coax cable using UTC. All Star-Light Plus 4K cameras are engineered to work with our VMAX A1 4K DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 4K over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Snapit Housing 3-step Installation
Our Snapit housing offers a simple to install three-step process.
1. Install the camera base.
2. Adjust the camera’s lens module as needed.
3. Take the cover dome and Snapit into place.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- Built-in microphone
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- Snapit easy installation housing
- 70' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- 5 year warranty
IMAGE | |
| Image sensor | 8MP 1/1.8" CMOS |
| Active pixels | 3864(H) x 2176(V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H |
| Synchronization | Internal |
| Resolution | Max 3840 x 2160 |
| Minimum scene illumination | 0.09 lux (color) |
| 0 lux (B/W) | |
| S/N ratio | 55dB |
| Video output | 4K @ 15fps 4MP/1440p @ 30fps 2.1MP/1080p @ 30fps |
| 2nd Video output | CVBS output for video testing |
I/O | |
| Alarm output | 1 alarm output |
| Audio input/output | 1 built-in microphone |
| Audio sensitivity | -38dB ±2dB (Sensitivity) |
| Audio frequency response | 50Hz ~ 10KHz (Frequency Response) |
LENS | |
| Focal length | 3.6 ~ 10mm |
| Lens type | Vari-focal p-iris lens with motorized zoom and auto-focus |
| Field of view (FoV) | 98.4 - 45.7° |
| IR distance | 70ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off-x32 (disabled at 4K) |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Highlight masking exposure (HME) | Yes |
| Dynamic range compression (DRC) | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 60dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/24VAC dual voltage |
| Power consumption | DC12V(LED off): 5.76W, 480mA DC12V(LED on): 7.92W, 660mA |
| AC24V(LED off): 6.49W, 429mA AC24V(LED on): 7.15W, 495mA | |
MECHANICAL | |
| Material | Snapit™ plastic housing, polycarbonate dome |
| Dimensions | 4.24" x 3.9" (107.8 x 99.1 mm) |
| Weight | 0.55lbs (0.25kg) |
| Warranty | 5 year warranty |
