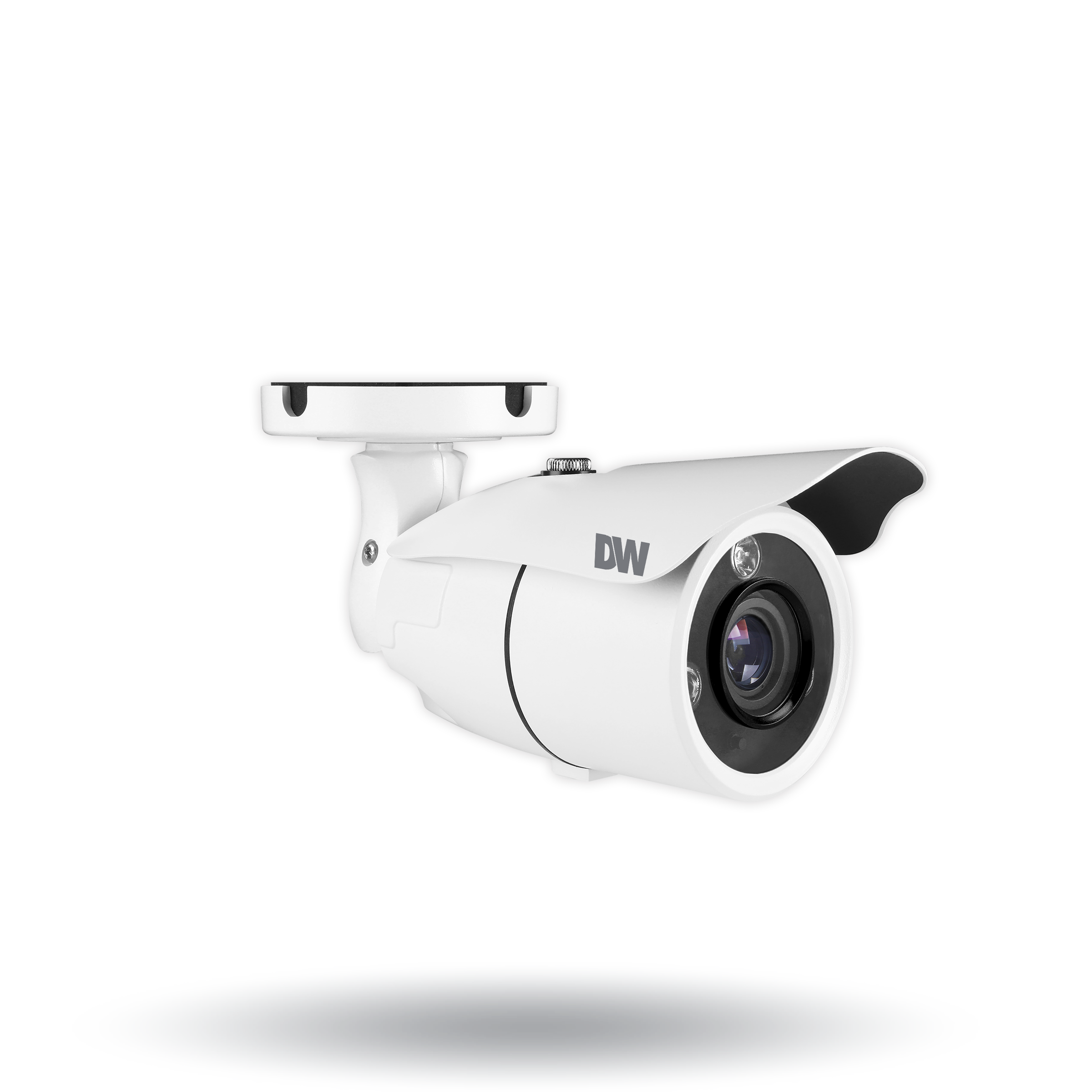

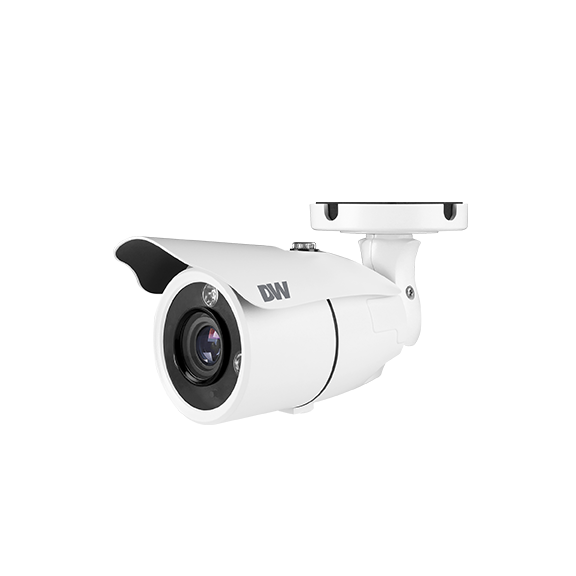

This MEGApix IP camera provides 2.1MP/1080p resolution at realtime 30fps. It includes a 2.7~13.5mm vari-focal lens and simultaneous H.265/H.264/MJPEG codec support, all in an IP66 weather-resistant bullet housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Smart 3D DNR (digital noise reduction)
Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Smart IR
Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
Features:
Image | |
Maximum resolution | 2.1MP/1080p |
Minimum Scene Illumination in color | 0.0 lux (B/W) 0.16 lux (color) |
Lens | |
Horizontal Field of View (HFOV) | 89.6° ~ 27° |
Illumination Distance | 90' range Smart IR™ |
Lens Type | Vari-focal Lens |
Vertical Field of View (VFOV) | 49.9° ~ 15.2° |
Operational | |
3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
Auto gain control | Auto |
Day and night | Auto day/night Day (color) Night (B/W) |
Mirror/flip | Yes |
Motion Detection | Yes |
Operational Notifications | Email FTP server SD card recording |
Sharpness | Yes |
White Balance | Yes |
Network | |
Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
Protocol | Zeroconf (AutoIP) |
Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
Video Compression Type | H.264 H.265 MJPEG |
Video Management Software | DW Spectrum® |
Environmental | |
Compliance | ![]() ![]() ![]() ![]() |
Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
Mounting Accessories (Required/Optional) | Optional. Sold separately |
Mechanical | |
Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover |
Housing | Bullet |
Housing Color | White |
IP rating | Weather Resistant (IP66) |
Materials | Aluminum die-casting |
Electrical | |
American wire gauge (AWG) | Cable type #18 |
Power Requirements | Adapter not included PoE |
General | |
Warranty | 5 Year Warranty |
