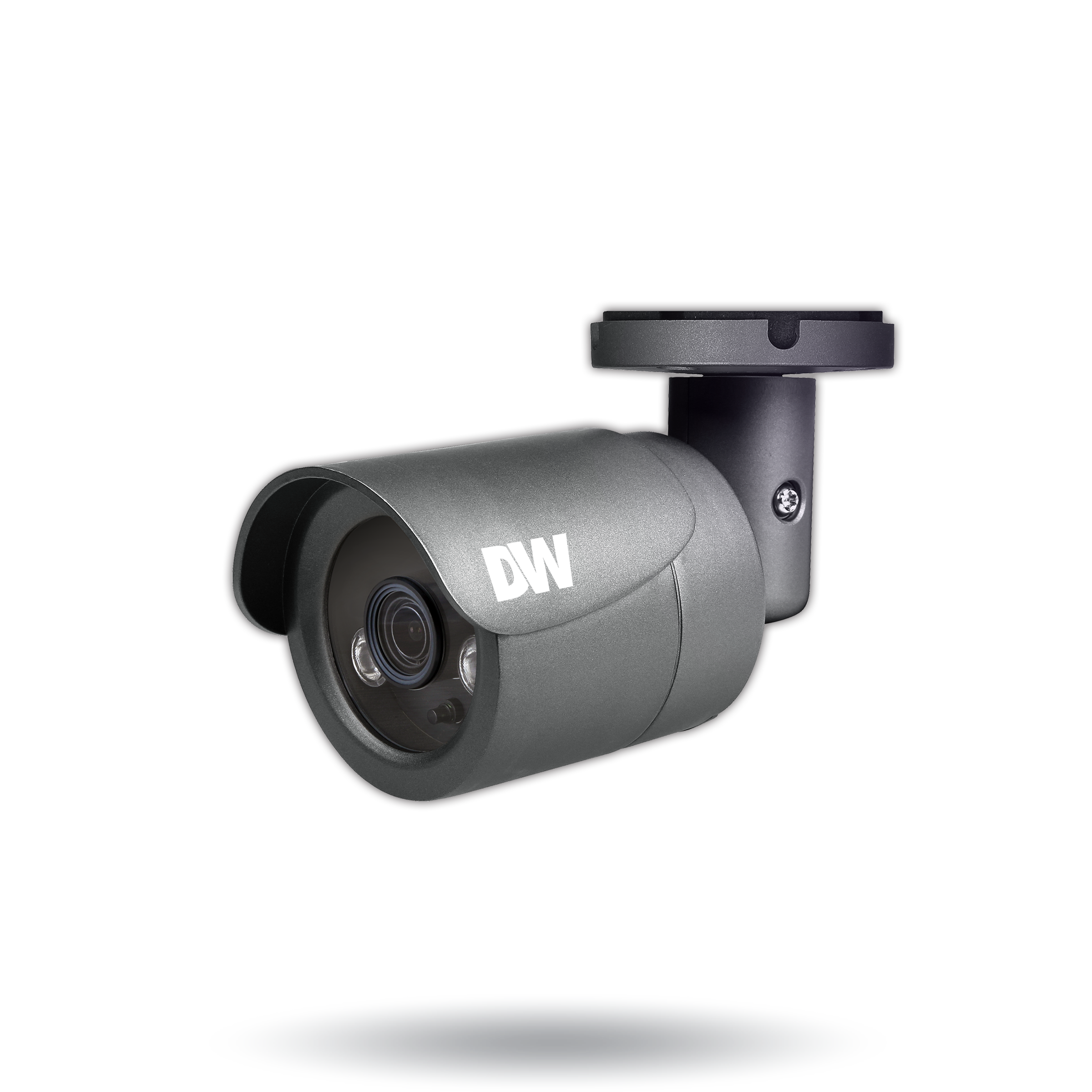

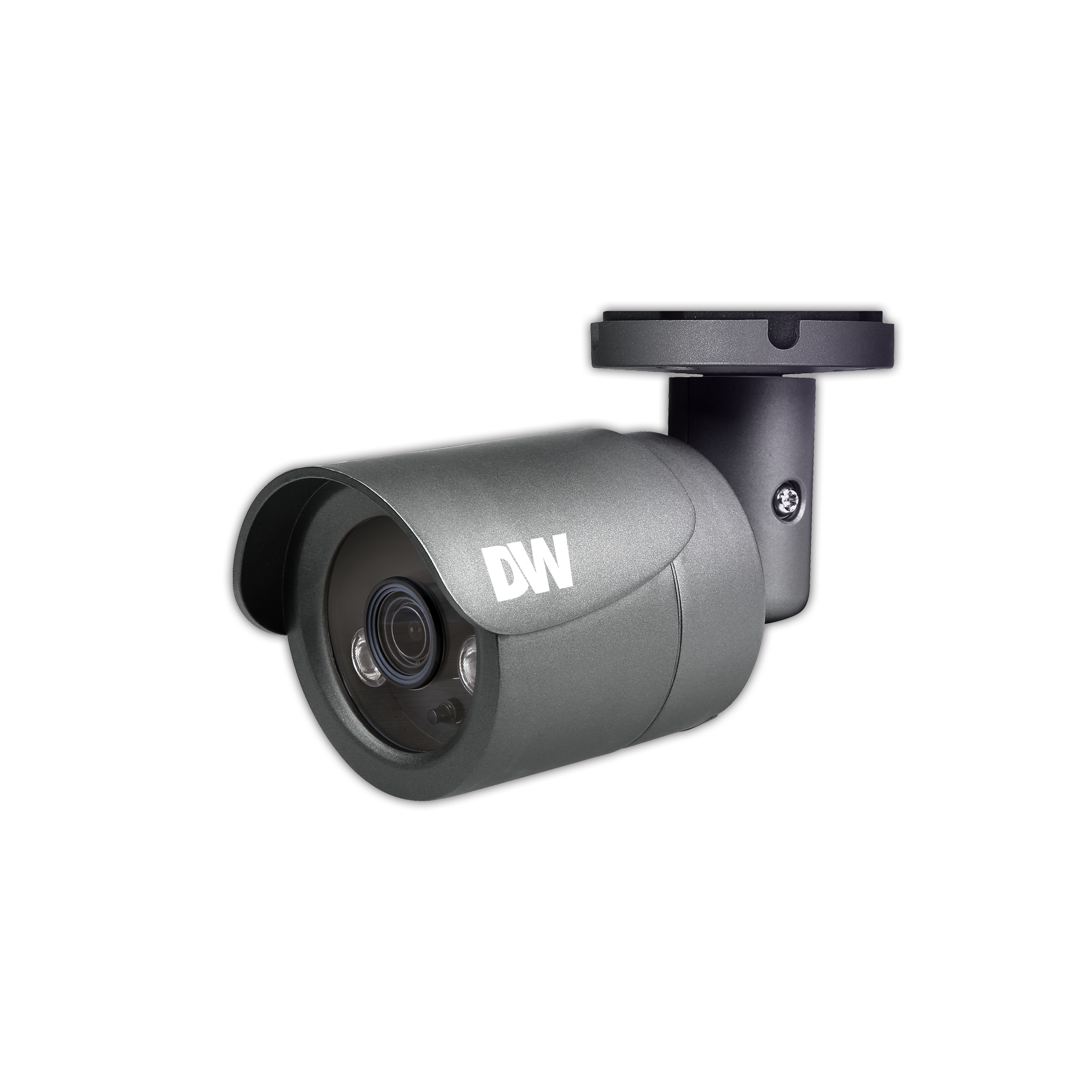

Digital Watchdog - DWC-MB72Wi4T - MEGApix 2.1MP/1080p Bullet IP Camera with 4.0mm Fixed Lens and Color in Near-total Darkness and IR
Part number:
DWC-MB72Wi4T
Price:

This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes a 4.0mm fixed lens, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP67 dust-tight and waterproof bullet housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.



Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.



Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.



IVA Intrusion Lines and Detection Zones

MEGApix IVA cameras include Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.



IVA Object Detection Zones

The MEGApix IVA offers advanced rules to the IVA Video Content Analysis detection capabilities.



Smart IR

Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.



True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.



H.265 codec support

High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.



Features:

  • 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus color in near-total darkness technology
  • 4.0mm fixed lens
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 100' Smart IR with intelligent camera sync
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Web server built-in
  • PoE class 2 and DC12V
  • ONVIF conformant, profile S
  • NDAA/TAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • 5 year warranty


Image sensor2.1MP/1080p 1/2.8” CMOS
Total pixels1945 (H) × 1109 (V)
Minimum scene illumination0.09 lux (color)
0.0 lux (B/W)
Video outputLocal video output CVBS 1.0V p-p (75?), 4:3 aspect ratio

LENS

Focal length4.0mm, F2.6
Lens typeFixed lens
Field of view (FoV)86°
IR distance100ft range

OPERATIONAL

Shutter modeAuto, manual, anti-flicker, slow shutter
Shutter speed1/15 ~ 1/32,000
Slow shutter1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain controlAuto
Day / nightAuto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR)True WDR (T-WDR)
Wide dynamic range (WDR) dB120dB
Privacy zones16 programmable privacy masks
Mirror and flipYes
Alarm notificationsNotifications via e-mail, FTP, alarm output and SD card recording
Memory slotMicro SD / SDHC / SDXC (card not included)

NETWORK

LANRJ45 (10/100Base-T)
Video compression typeH.265, H.264, MJPEG
Resolution

H.265: 2.1MP/1080p, 720p, VGA, D1, CIF

H.264: 2.1MP/1080p, 720p, VGA, D1, CIF

MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF

Frame rateUp to 30fps at all resolutions
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capabilityDual-stream at different rates and resolutions
IPIPv4, IPv6
ProtocolTCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security

HTTPS(TLS), IP filtering, 802.1x,

digest authentication (ID/PW)

ONVIF conformanceYes
Web viewerOS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management softwareDW Spectrum® IPVMS

ENVIRONMENTAL

Operating temperature-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
Other certificationsCE, FCC, RoHS

ELECTRICAL

Power requirementDC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumption

DC12V: max 4.5W

PoE: max 6.0W

MECHANICAL

MaterialAluminum bullet housing
Dimensions6.41" x 2.65" (163 x 67.5 mm)
Weight1.1 lbs (0.5 kg)
Warranty5 year warranty
