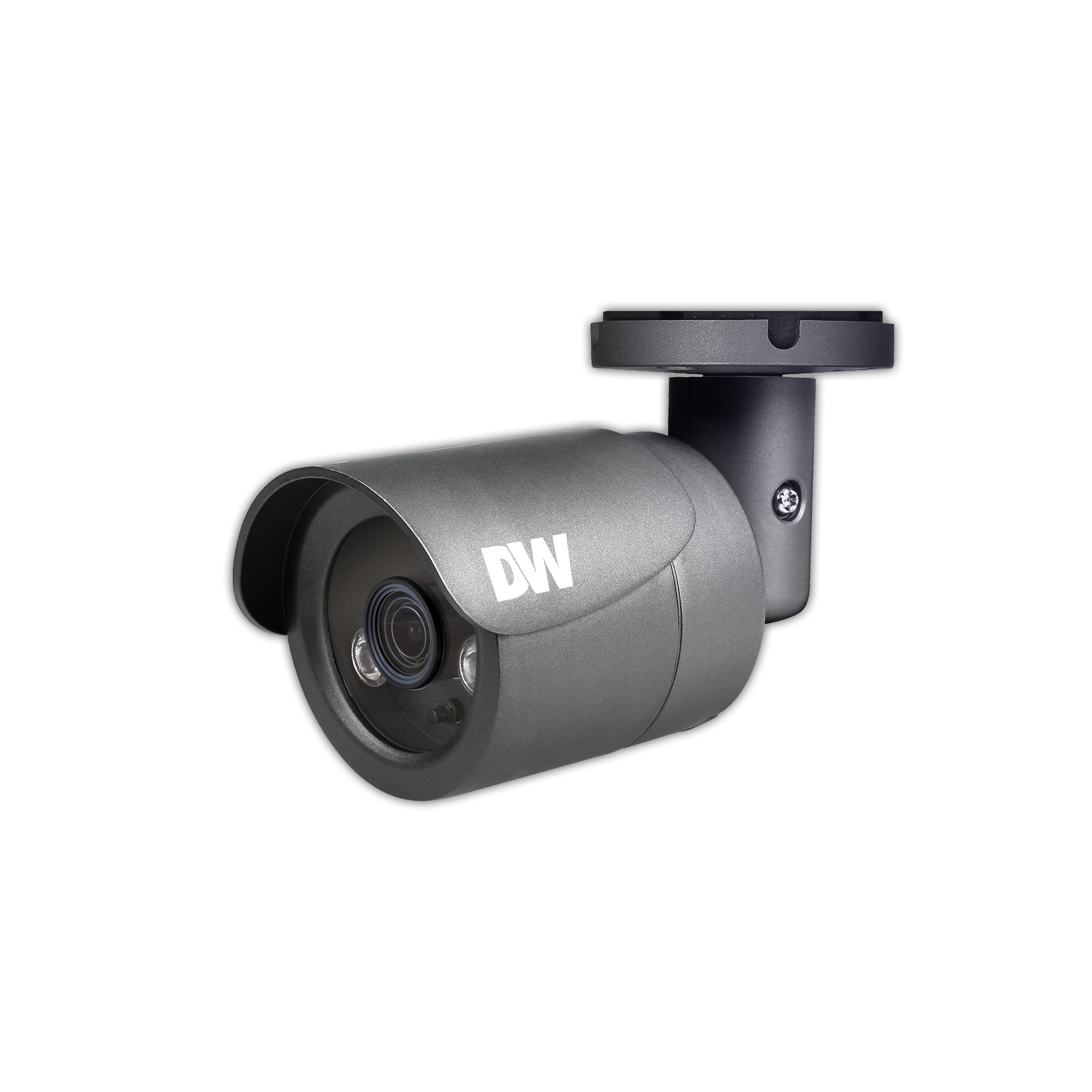

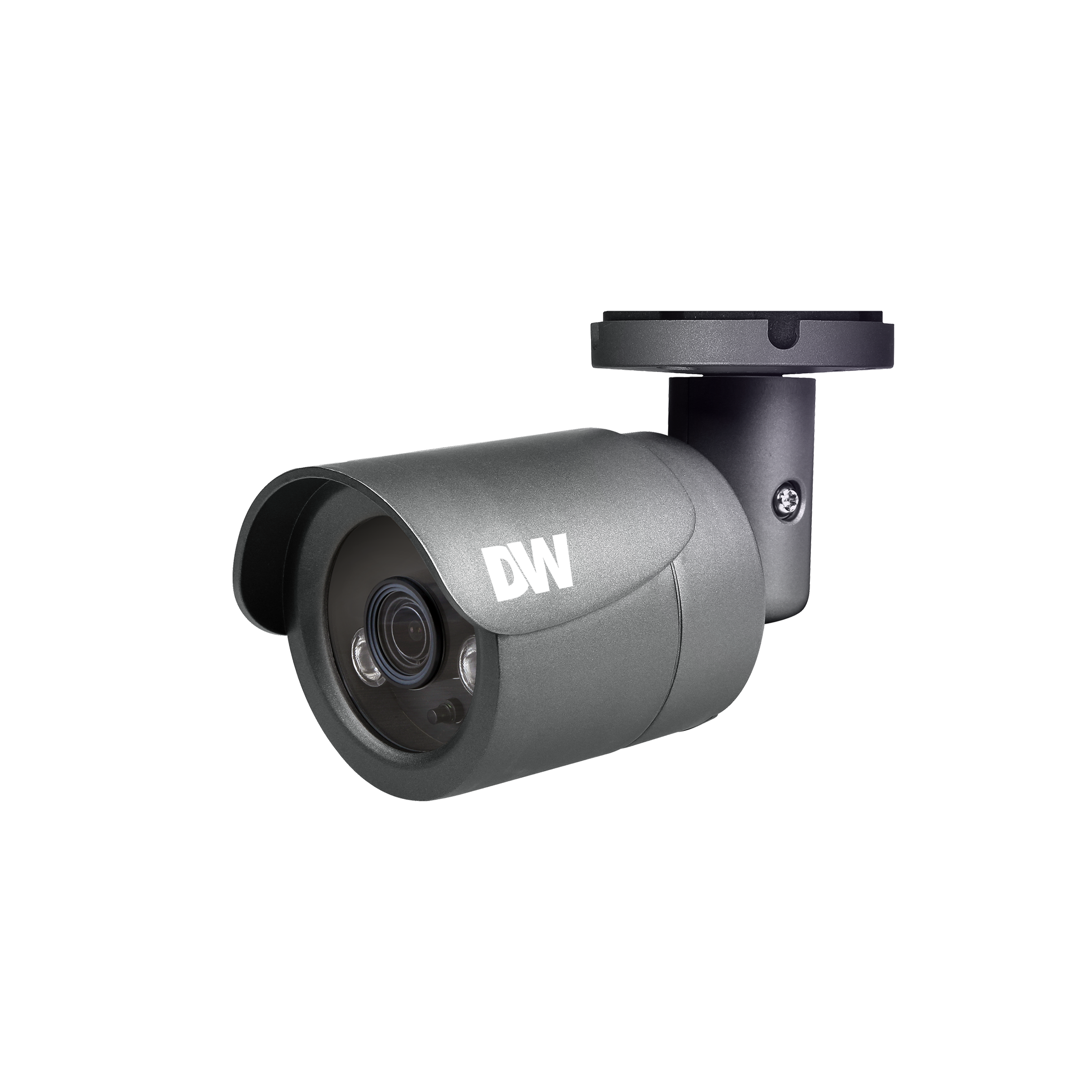

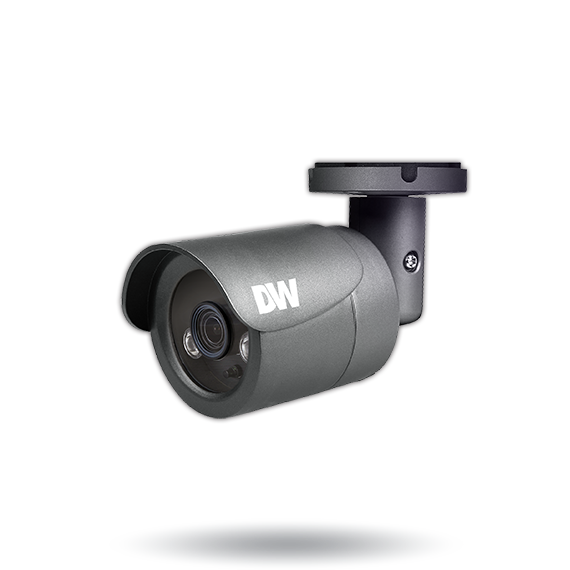

The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP67-rated weather and tamper-resistant bullet housing.
DMP integration
DW’s DMP series provides high-resolution video verification with every alarm notification, eliminating false alarms and unnecessary expenses.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Smart 3D DNR (digital noise reduction)
Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.
Features:
- 2.1MP/1080p 1/2.8" image sensor
- Star-Light Plus color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 100' Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- NDAA/TAA compliant
- IP67 dust-tight and waterproof to 3 feet
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.09 lux (color) |
| 0.0 lux (B/W) | |
LENS | |
| Focal length | 4.0mm, F2.6 |
| Lens type | Fixed lens |
| Field of view (FoV) | 86° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/15 ~ 1/32,000 |
| Slow shutter | 1/2 |
| Auto gain control | Auto |
| Day / night | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Flip | Yes |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.264 |
| Resolution | 2.1MP/1080p, 720p, D1 |
| Frame rate | 10fps |
| Video bitrate | 1Mbps |
| Bitrate control | Smart bitrate control – CVBR |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP |
| ONVIF conformance | Yes |
| Video management software | DMP® |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP67-rated |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
| Power consumption | DC12V: max 4.5W PoE: max 6.0W |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 6.41" x 2.65" (163 x 67.5 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Warranty | 5 year warranty |
