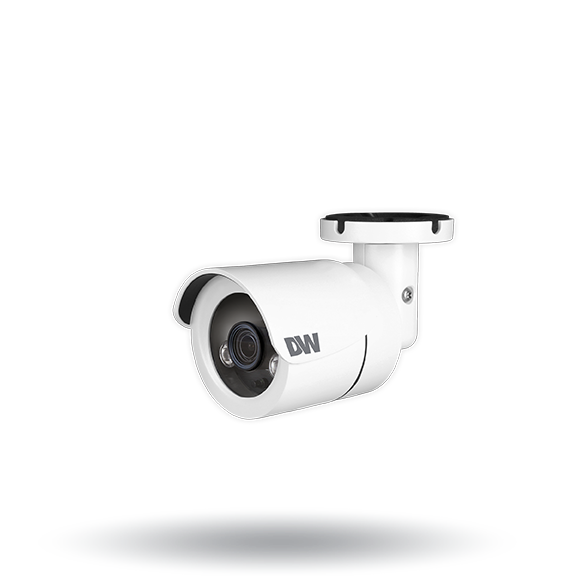

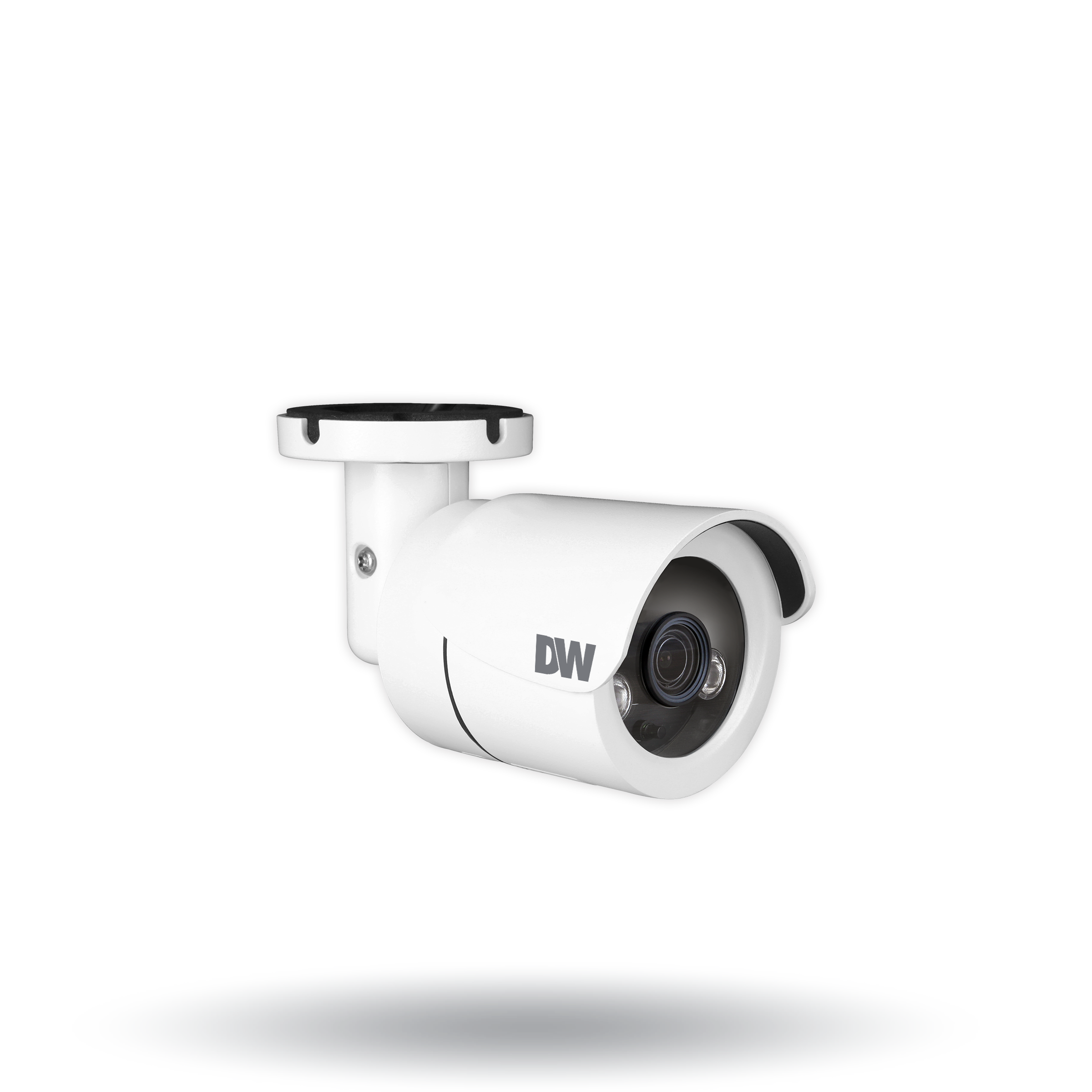

This NDAA-compliant MEGApix IP camera provides 5MP resolution at real-time 30fps, includes a 4.0mm fixed lens, simultaneous H.265/H.264/MJPEG codec support. The camera is powered by StarLight Plus color in near-total darkness technology for quality video in any lighting conditions, all in an IP67 dust-tight and waterproof bullet housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Intrusion Lines and Detection Zones
MEGApix IVA cameras include Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA Object Detection Zones
The MEGApix IVA offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features:
- 5MP sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP66- and IK10-rated camera housing built to last
- 5 year warranty
| IMAGE | |
| Image sensor | 5MP 1/2.8" CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.16 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2592 (H) × 1944 (V) |
| LENS | |
| Focal Length | 4.0mm |
| Horizontal Field of View (HFOV) | 82.3° |
| IR Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 58.8° |
| INTELLIGENT VIDEO ANALYTICS | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 8 ~ 1/50000 |
| Slow Shutter Speed | Off, x15, x2, x3, x4, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| Network resolution | H.264: 2.1MP/1080p, 720p (main), CIF (sub), H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, MJPEG: CIF |
| Network Web Viewer | Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 32Kbps~20Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum® IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | 6.06" x 5.9" (154 x 150 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 6.5W, 541.6mA, PoE: max 8.3W |
| Power Requirements | Adapter not included, PoE |
| GENERAL | |
| Warranty | 5 Year Warranty |
