The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP66-rated and IK10 impact-resistant ultra low-profile vandal dome housing.
DMP integration
DW’s DMP series provides high-resolution video verification with every alarm notification, eliminating false alarms and unnecessary expenses.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

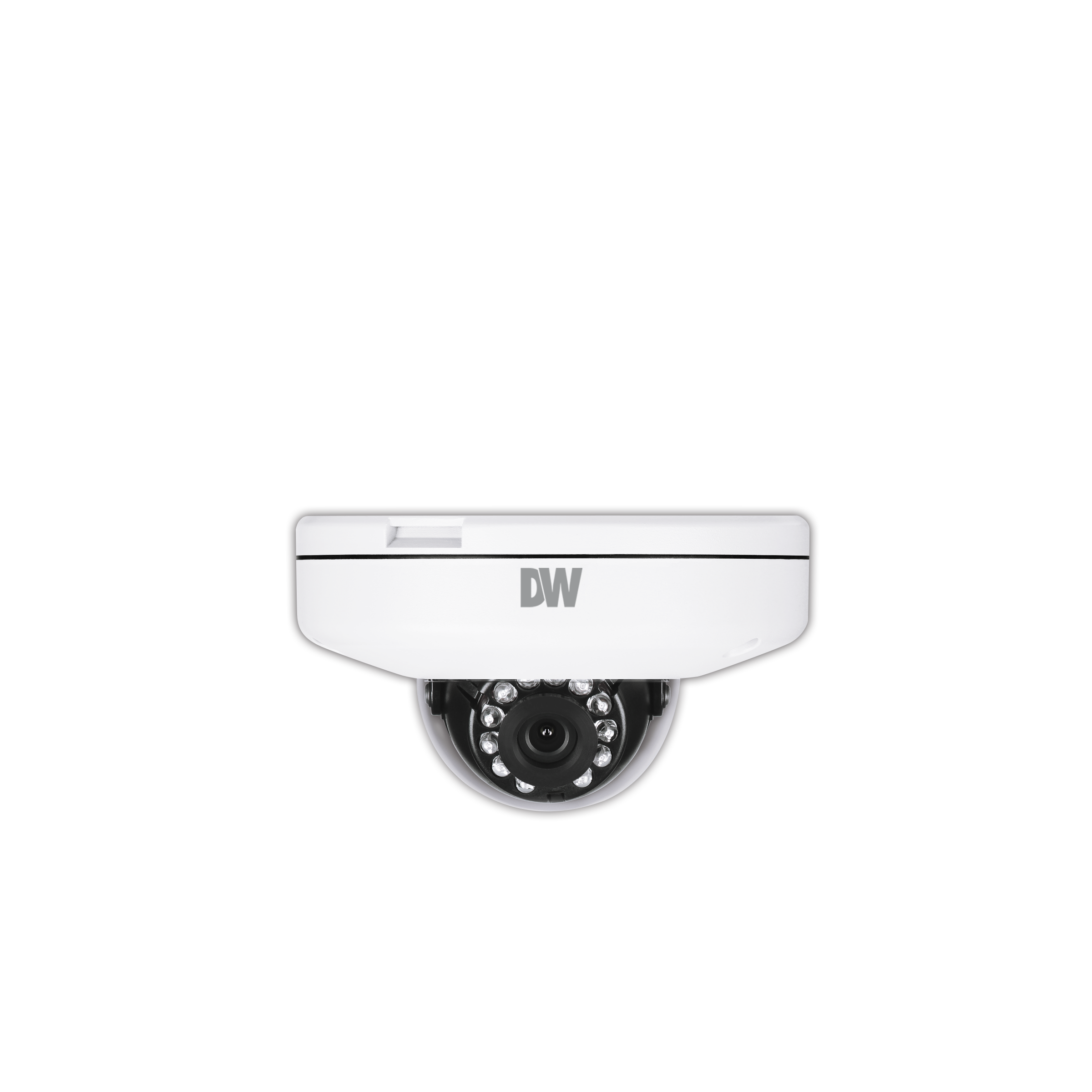

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- UL listed
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.09 lux (color) |
| 0.0 lux (B/W) | |
LENS | |
| Focal length | 4.0mm, F2.6 |
| Lens type | Fixed lens |
| Field of view (FoV) | 86° |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/15 ~ 1/32,000 |
| Slow shutter | 1/2 |
| Auto gain control | Auto |
| Day / night | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Flip | Yes |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.264 |
| Resolution | 2.1MP/1080p, 720p, D1 |
| Frame rate | 10fps |
| Video bitrate | 1Mbps |
| Bitrate control | Smart bitrate control – CVBR |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP |
| ONVIF conformance | Yes |
| Video management software | DMP® |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66-rated |
| IK rating | IK10 impact resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
| Power consumption | DC12V: max 4.0W PoE: max 5.5W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.9" x 2.9" (125 x 74.3 mm) |
| Weight | 0.92 lbs (0.42kg) |
| Warranty | 5 year warranty |
