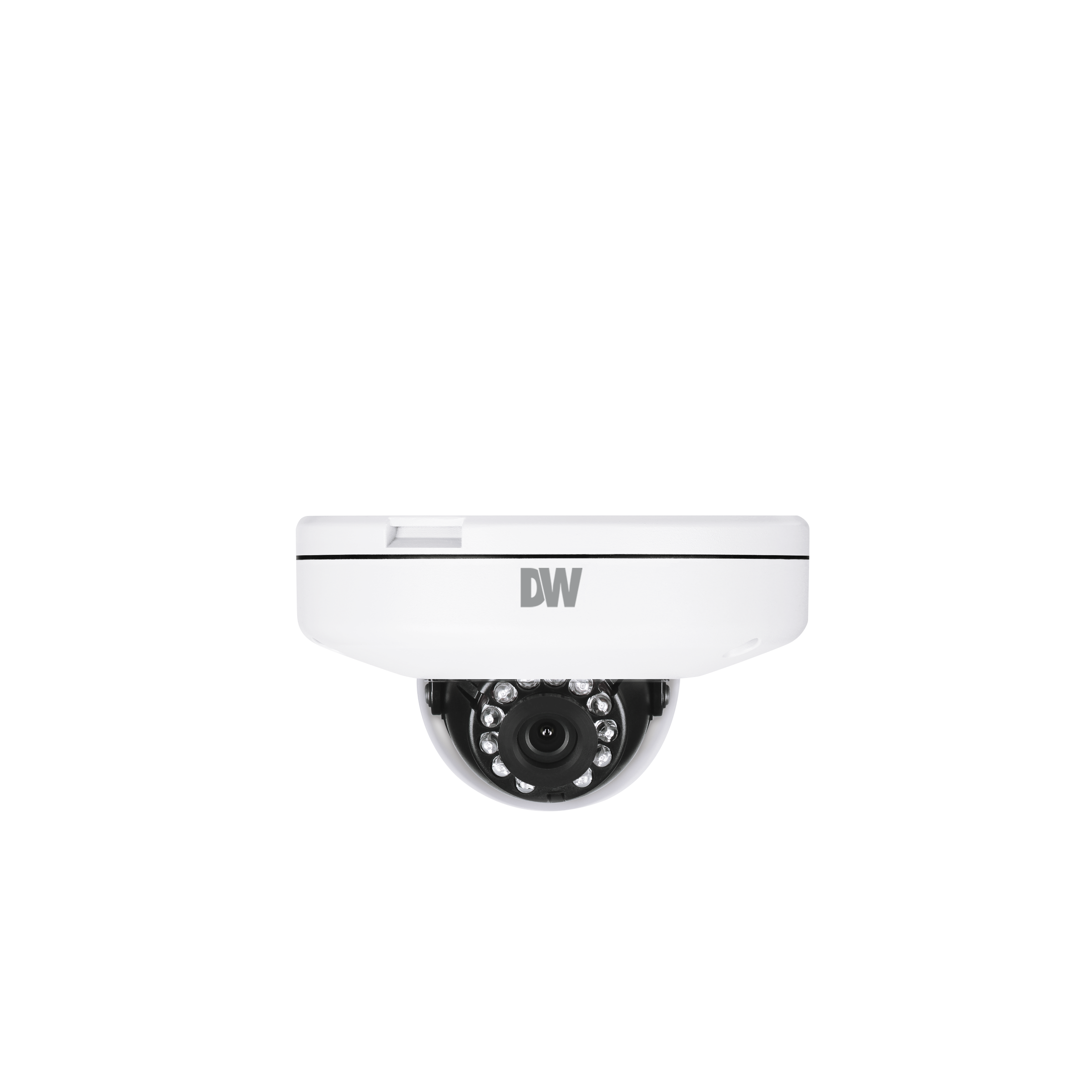

Digital Watchdog - DWC-MF5Wi4TWDMP - MEGApix 4MP Ultra low-profile Vandal Dome IP Camera with Fixed Lens and IR, for use with DMP Panels only
Part number:
DWC-MF5Wi4TWDMP
Price:

The DMP series of MEGApix IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP66-rated and IK10-impact-resistant ultra low-profile vandal dome housing.



DMP integration

DW’s DMP series provides high-resolution video verification with every alarm notification, eliminating false alarms and unnecessary expenses.



Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.



Ultra Low-Profile Vandal Dome Housing

The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.



Features:

  • 4MP 1/2.8" image sensor
  • Star-Light Plus color in near-total darkness technology
  • 4.0mm fixed lens
  • DMP integration
  • 50' Smart IR with intelligent camera sync
  • Ultra low-profile vandal dome camera housing
  • Smart DNR 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • PoE class 3 and DC12V
  • UL listed
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant
  • 5 year warranty


Image sensor4MP 1/2.8” CMOS
Total pixels2560 (H) x 1440 (V)
Minimum scene illumination0.16 lux (color)
0.0 lux (B/W)

LENS

Focal length4.0mm, F2.0
Lens typeFixed lens
Field of view (FoV)82.3°
IR distance50ft range

OPERATIONAL

Shutter modeAuto
Shutter speed1/15 ~ 1/32,000
Slow shutter1/2
Auto gain controlAuto
Day / nightAuto
Smart DNR 3D digital noise reduction3D DNR
FlipYes

NETWORK

LANRJ45 (10/100Base-T)
Video compression typeH.264
Resolution2560x1440, 2.1MP/1080p, VGA
Frame rate10fps
Video bitrate2Mbps
Bitrate controlSmart bitrate control – CVBR
IPIPv4, IPv6
ProtocolTCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP
ONVIF conformanceYes
Video management softwareDMP

ENVIRONMENTAL

Operating temperature-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
IK ratingIK10 impact resistant
Other certificationsCE, FCC, RoHS

ELECTRICAL

Power requirementDC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumption

DC12V: max 5.9W

PoE: max 7.2W

MECHANICAL

MaterialAluminum vandal housing, polycarbonate dome
Dimensions4.9" x 2.9" (125 x 74.3 mm)
Weight0.92 lbs (0.42kg)
Warranty5 year warranty
