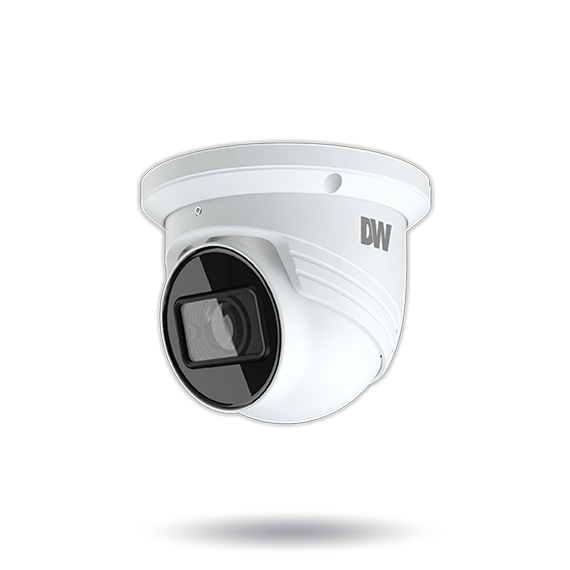

These MEGApix IP cameras are NDAA compliant and deliver crystalclear images at 5MP resolution and real-time 30fps. The IP67-rated turret camera features a 2.8~12mm vari-focal lens with motorized zoom and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Video tampering detection – abnormal color detection
When the camera’s color reproduction is changed, an event notification will be sent.
Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.
Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.
Video tampering detection – scene change
When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.
Video tampering detection – video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features
Image | |
Image sensor | 5MP 1/2.7 CMOS sensor |
Maximum resolution | 5MP |
Minimum Scene Illumination in color | 0.0 lux (B/W), 0.01 lux (color) |
Total Pixels | 2592 (H) × 1944 (V) |
Lens | |
Advanced Lens Features | Auto focus, Motorized zoom |
Focal Length | 2.8mm ~ 12mm |
Horizontal Field of View (HFOV) | 95.1° ~ 30° |
IR Distance | 164' range Smart IR |
Lens Type | Vari-focal Lens |
I/O | |
Audio compression | G.711A / U |
I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in |
Operational | |
3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
Auto gain control | Auto |
Camera Analytics | Object Classification (Differentiate Humans from Objects), Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
Day and night | Auto day/night, Day (color), Night (B/W) |
De-fog | Yes |
Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
Mirror/flip | Yes |
Motion Detection | Yes |
Operational Notifications | Email, FTP server |
Privacy Zones | 4 programmable privacy masks |
Sharpness | Yes |
Shutter Mode | Auto, Manual |
Shutter Speed | 1/30 ~ 1/100000 |
White Balance | Yes |
Wide Dynamic Range (WDR) | True WDR 120dB |
Network | |
Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
IP | IPv4, IPv6 |
LAN | 802.3 compliance 10/100 LAN |
Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
Network Web Viewer | Microsoft Edge browser, Windows OS |
Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
Security | Digest authemtication (ID/PW), IP filtering, MAC filtering |
Stream Speed | Up to 30fps at all resolutions |
Streaming Capability | Dual-stream at different rates and resolutions |
Video Bitrate | 64Kbps~8Mbps |
Video Compression Type | H.264, H.265, MJPEG |
Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Milestone Systems |
Environmental | |
Environmental Operating Humidity | 0-95% RH (non–condensing) |
Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
Mounting Accessories (Required/Optional) | Optional. Sold separately |
Mechanical | |
Camera Dimensions (H X W X D) | 5.16" x 4.13" (131.1 x 105 mm) |
Camera Weight | 1.45 lb (0.66 kg) |
Housing | Turret |
Housing Color | White |
IK rating | IK10 Rated |
IP rating | Weather Resistant (IP67) |
Materials | Aluminum die-casting |
Electrical | |
Power Consumption | DC12V: max 7.0W, 583.3mA, PoE: max 7.0W |
Power Requirements | Adapter not included, PoE |
General | |
Warranty | 5 Year Warranty |
