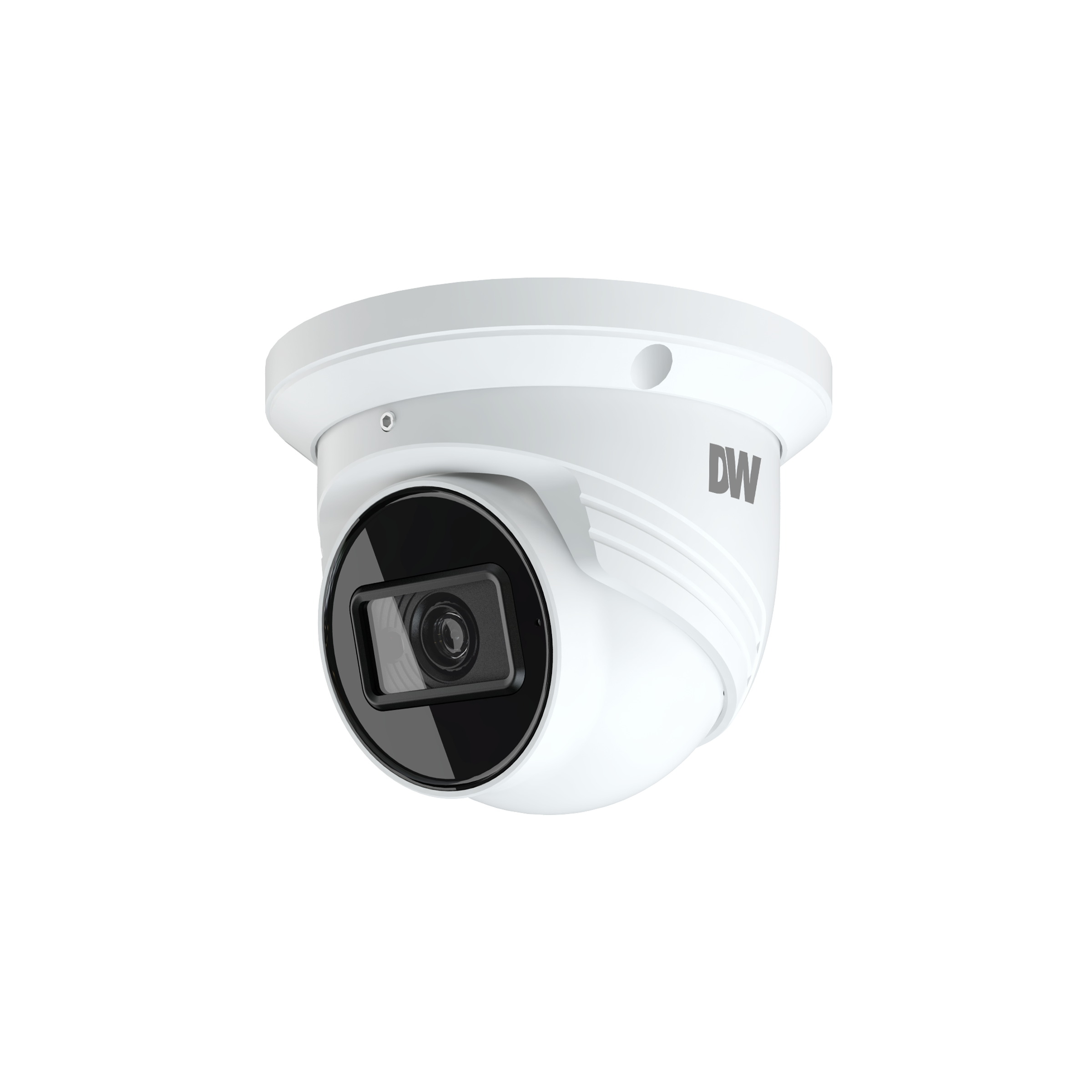

This NDAA compliant MEGApix IP camera delivers crystal-clear images at 5MP resolution at real-time 30fps with white light LEDs built-in. The IP67-rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. The white light LEDs offer up to 100ft range for quality video in any lighting condition. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

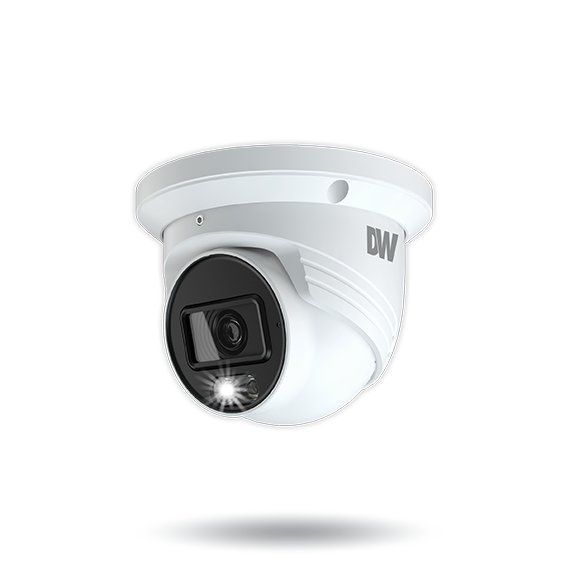

White light LEDs built-in
Create deterrence and provide crystal-clear images in color without the need for external illumination or the potential loss of color and detail from B/W images.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- 5MP 1/2.7 image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range White-Light LEDs
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
| Image | |
| Image sensor | 5MP 1/2.7 CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W) |
| Total Pixels | 2592 (H) × 1944 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 94.8° |
| Lens Type | Fixed Lens |
| White Light Distance | 98' range white light |
| I/O | |
| Audio compression | G.711 |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 microphone built-in |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) Sub-stream: 720P, D1, CIF, 480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) Third stream: D1, CIF, 480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) |
| Network Web Viewer | Microsoft Edge® browser Windows OS |
| Protocol | 802.1x DDNS DHCP FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP uPNP |
| Security | Digest authentication (ID/PW) IP filtering MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | Any ONVIF conformant CMS DW Spectrum® Milestone Systems |
| Environmental | |
| Compliance |     |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.66" x 3.58" (118.6 x 91 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| Power Consumption | DC12V: max 7.0W, 583.3mA PoE: max 7.0W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
