This MEGApix IP camera provides 5MP resolution at real-time 30fps. It includes 2.8, 4.0 and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support, and Star-Light Plus color in neartotal darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

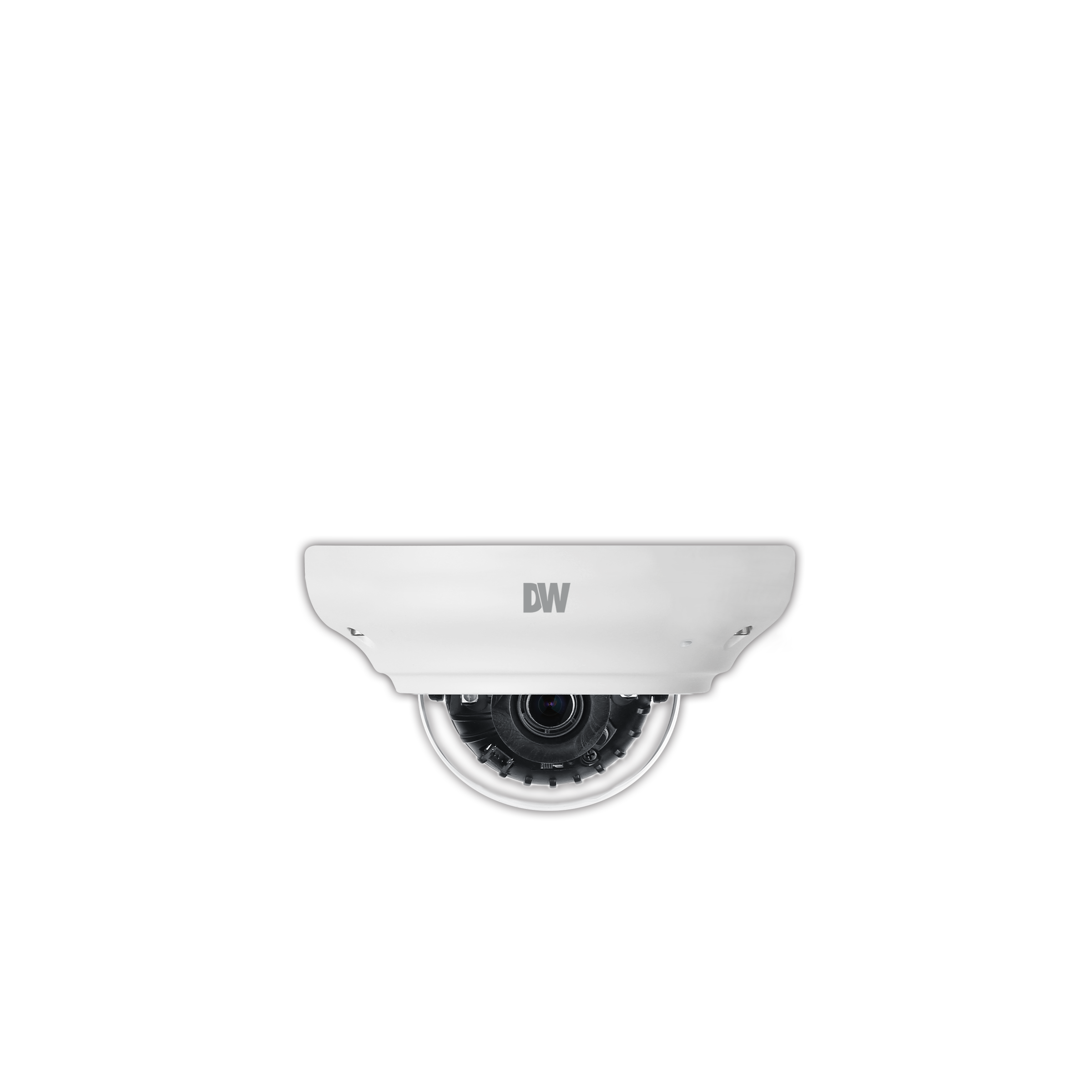

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Decorative rings
Customize your ultra low-profile vandal domes with decorative rings. The DWC-V7DECO set of five (5) white rings can be painted to match your décor.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
IVA Intrusion Lines and Detection Zones
MEGApix IVA cameras include Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA Object Detection Zones
The MEGApix IVA offers advanced rules to the IVA Video Content Analysis detection capabilities.
Features:
- 5MP sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)*
* NOTE: For existing cameras, contact your DW sales representative for a complimentary IVA+ plugin update. - Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens (DWC-MPV75Wi28TW)
4.0mm fixed lens (DWC-MPV75Wi4TW)
6.0mm fixed lens (DWC-MPV75Wi6TW) - Ultra low-profile vandal dome camera for discrete installation
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 80' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP66- and IK10-rated camera housing built to last
- 5 year warranty
IMAGE | ||
| Image sensor | 5MP 1/2.8” Star-Light Plus CMOS | |
| Total pixels | 2592 (H) × 1944 (V) | |
| Minimum scene illumination | 0.13 lux (color) (DW-MV75Wi28TW) 0.16 lux (color) (DW-MV75Wi4TW, DW-MV75Wi6TW) | |
| 0.0 lux (B/W) | ||
| Video output | Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS | ||
| Focal length | 2.8mm, F1.8 (DWC-MV75Wi28TW) 4.0mm, F2.0 (DWC-MV75Wi4TW) 6.0mm, F2.0 (DWC-MV75Wi6TW) | |
| Lens type | Fixed lens | |
| Field of view (FoV) | 102.4° (DWC-MV75Wi28TW) 82.3° (DWC-MV75Wi4TW) 51.9° (DWC-MV75Wi6TW) | |
| IR distance | 80ft range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30 ~ 1/32,000 | |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off | |
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording | |
| Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
| LAN | RJ45 (10/100Base-T) | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IK rating | IK10 impact-resistant | |
| IP rating | IP67-rated | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
| Power consumption | DC12V: max 6W PoE: max 7.2W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 4.13" x 2.4" (105 x 61mm) | |
| Weight | 0.79 lbs (0.36kg) | |
| Warranty | 5 year warranty | |
