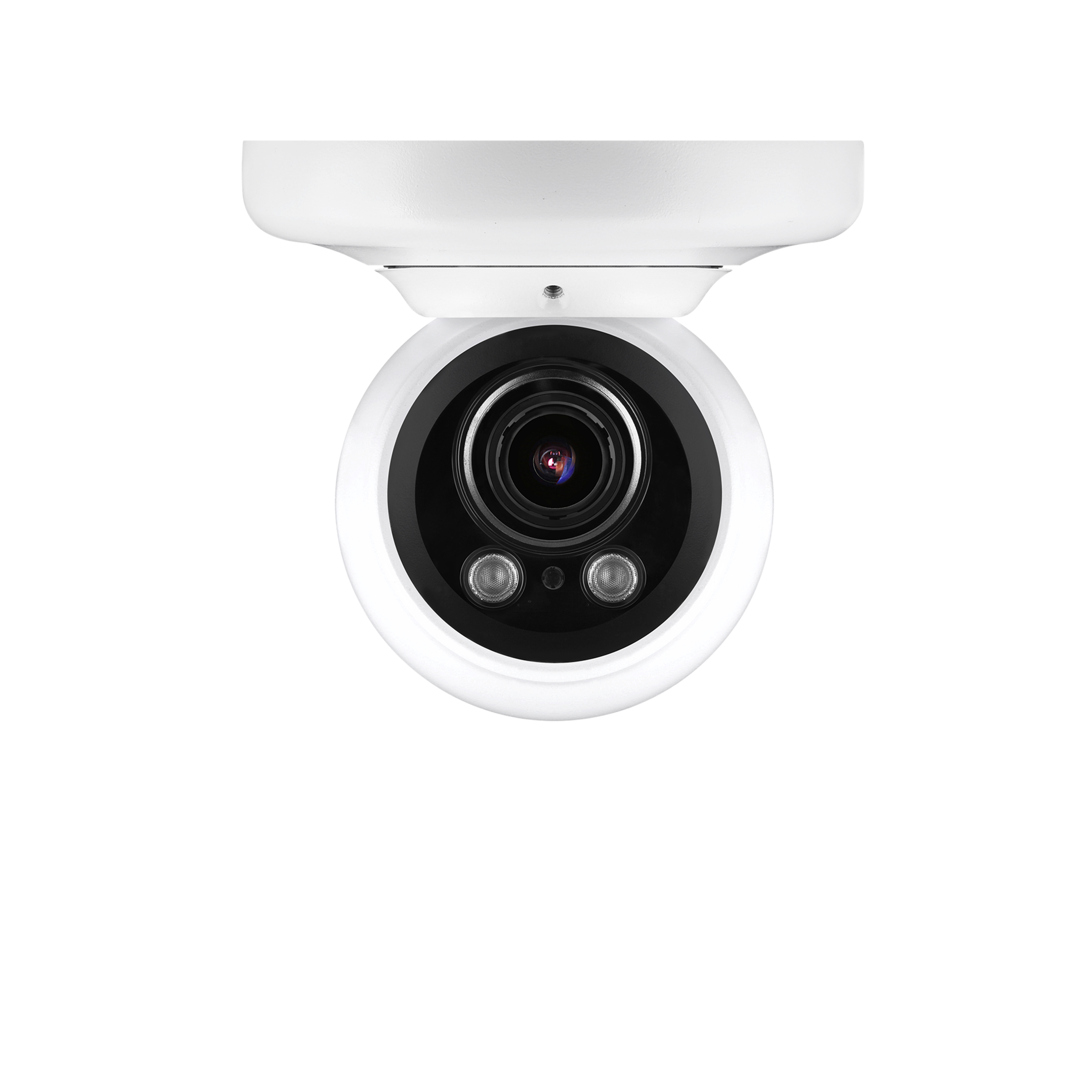

This MEGApix IP camera provides 2.1MP/1080p resolution at realtime 30fps. It includes a 2.8mm fixed lens, simultaneous H.265/H.264/ MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition. The weatherresistant vandal ball cameras are IP67 rated, eliminate IR reflections and offer easy angle adjustment for optimal image quality.
Vandal turret housing
The vandal turret cameras have a unique dome-free design that allows for a true 90° tilting angle with endless 360° panning and rotation.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Intrusion Lines and Detection Zones
MEGApix IVA cameras include Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA Object Detection Zones
The MEGApix IVA offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) * NOTE: For existing cameras, contact your DW sales representative for a complimentary IVA+ plugin update.
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.05 lux (color) |
| 0.0 lux (B/W) | |
LENS | |
| Focal length | 2.8mm, F2.0 |
| Lens type | Fixed lens |
| Field of view (FoV) | 110° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
| Shutter speed | 1/30 ~ 1/32,000 |
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Auto gain control | Auto |
| Day / night | Auto, day (color), night (B/W) |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Wide dynamic range (WDR) dB | 120dB |
| Privacy zones | 16 programmable privacy masks |
| Mirror and flip | Yes |
| Alarm notifications | Notifications via e-mail, FTP and alarm output |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.265, H.264, MJPEG |
| Resolution | H.265: 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Frame rate | Up to 30fps at all resolutions |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| Streaming capability | Dual-stream at different rates and resolutions |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
| ONVIF conformance | Yes |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video management software | DW Spectrum® IPVMS |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IK rating | IK10 impact resistant |
| IP rating | IP67-rated |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
| Power consumption | DC12V: max 5.7W PoE: max 7.2W |
MECHANICAL | |
| Material | Aluminum vandal ball housing |
| Dimensions | 4.92" x 4.8" (125 x 122 mm) |
| Weight | 1.87 lbs (0.85kg) |
| Warranty | 5 year warranty |
