The MEGApix Pano 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports advanced features such as H.264 codec and Smart DNR in an aluminum vandal housing with zero distortion anti-reflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.
4-sensor 180° view IP camera
Get wide views and forensic details from one camera. The MEGApix Pano 21MP 4-sensor cameras produce 180° views at real-time 30fps via a single PoE Plus connection.
Megapixel resolution in multi-sensor IP cameras
DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.
Fast framerate
DW’s panoramic cameras can stream 180-view images up to 8K/32MP at real-time 30fps, providing a smooth video, with no loss of details between frames.
ONVIF Conformant
DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.
Features
- 4x 6.4MP 1/1.8" image sensor at real-time 30fps
- 21MP 180° panoramic view IP camera
- 4x 8.0mm fixed lens
- Fast frame rates: real-time 30fps at 21MP
- Zero distortion anti-reflective glass
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Alarm sensor input
- Relay output
- Web server built-in
- UL listed
- ONVIF conformant, profile S
- NDAA/TAA compliant
- PoE+ high power and DC12V
- IP66 certified weather and tamper-resistant
- 5 years warranty

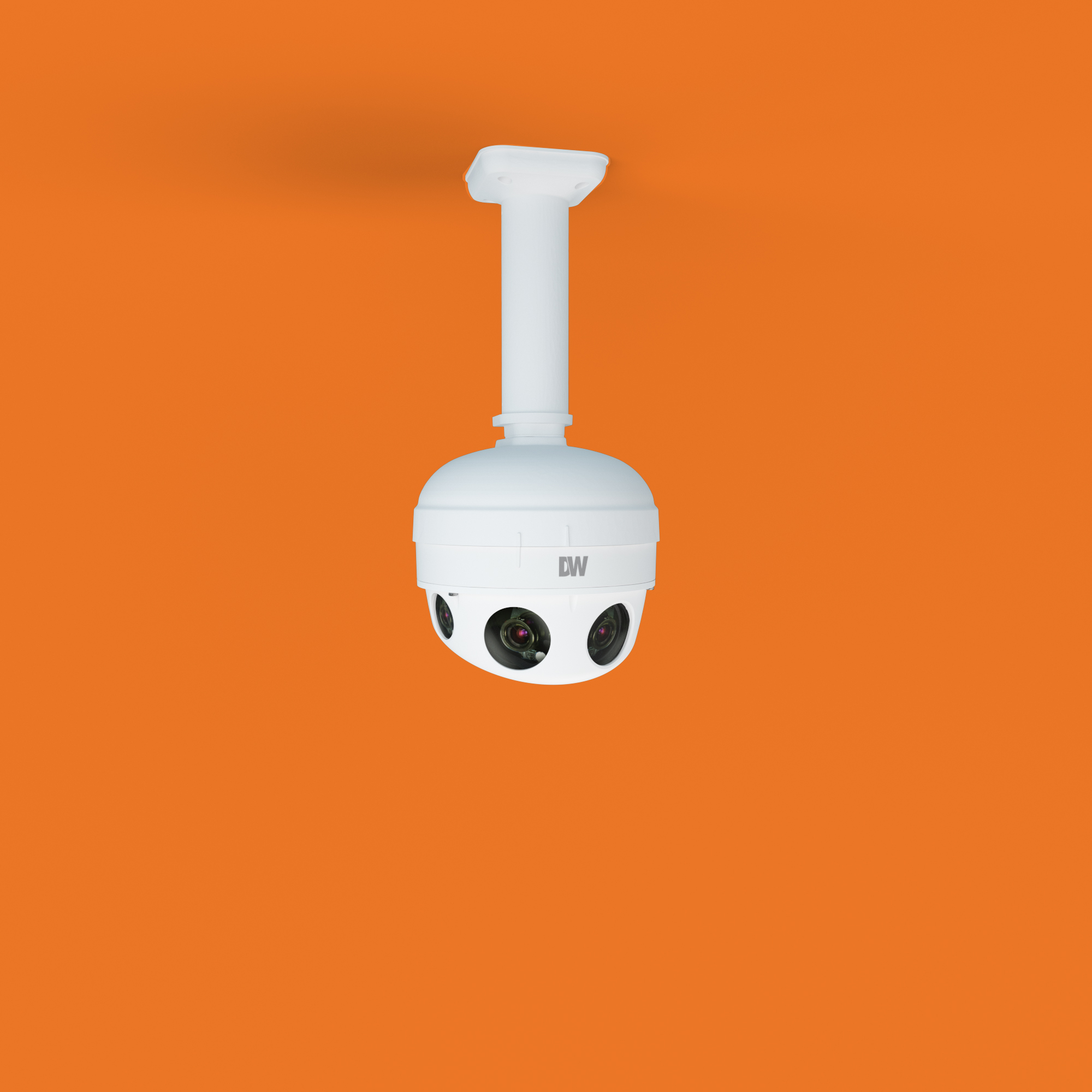

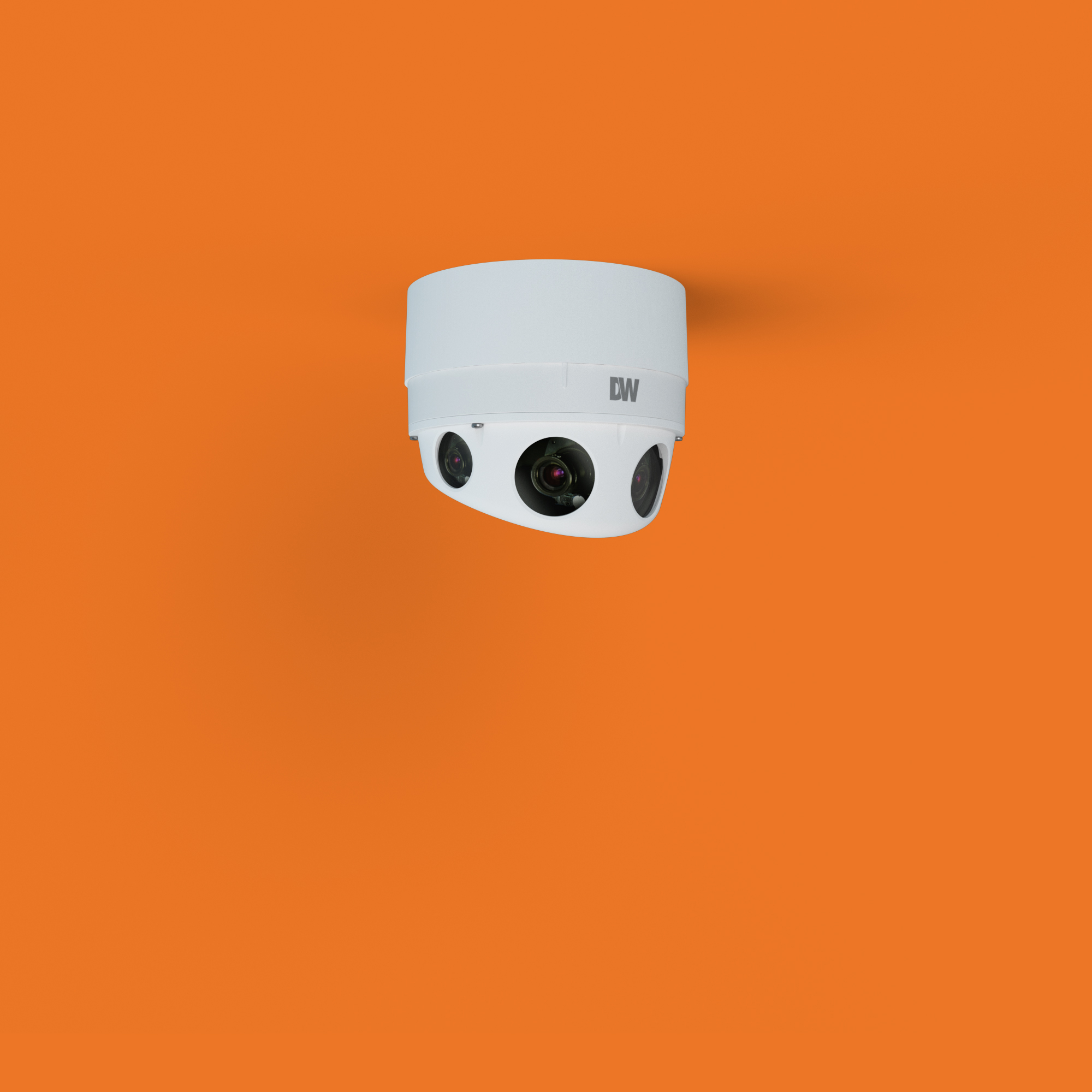

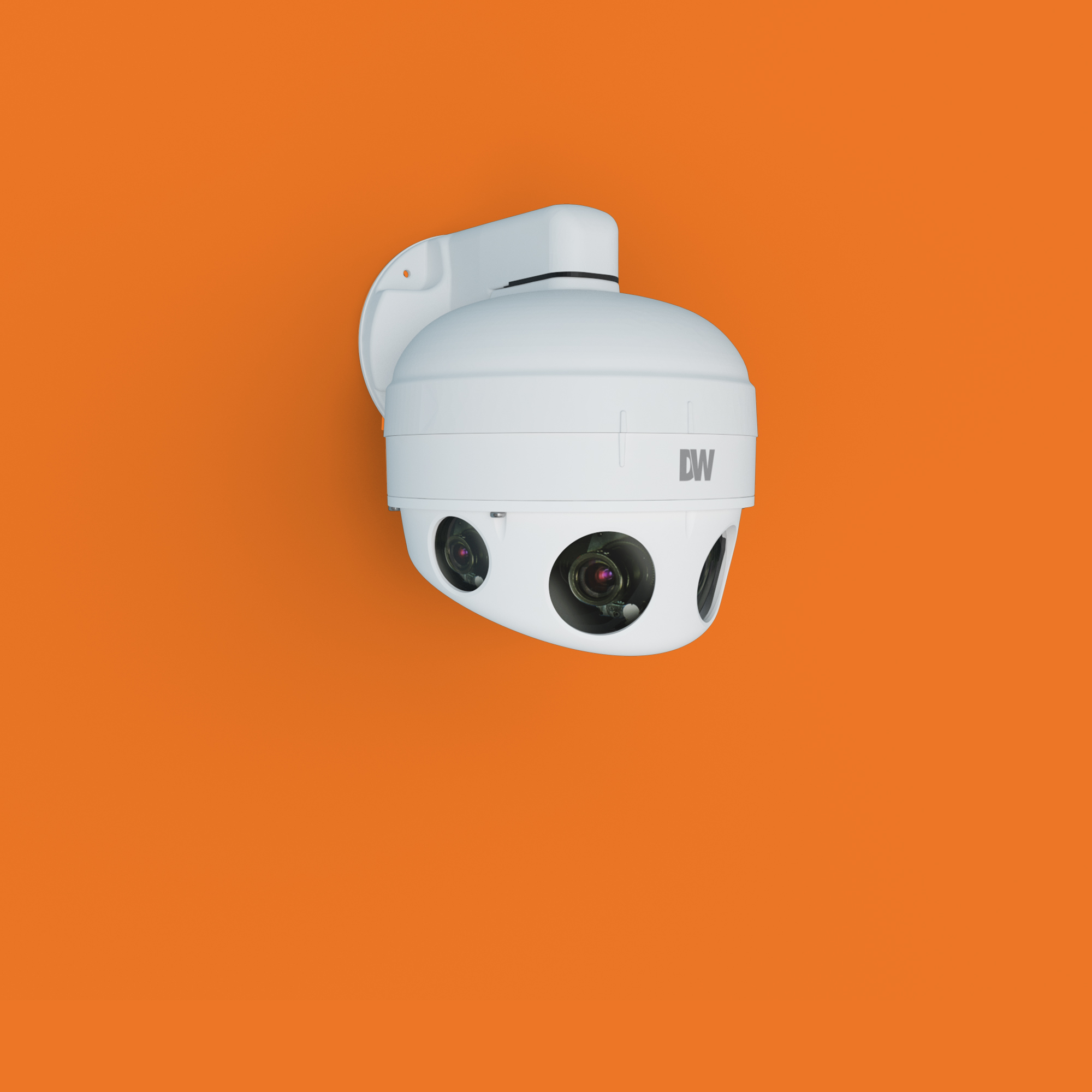

- This camera requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation
| Image | |
| Image sensor | * Stitching not supported on DW Spectrum IPVMS., 5MP 1/1.8" CMOS sensor (x4) |
| Maximum resolution | 21MP (4x 5.3MP) |
| Minimum Scene Illumination in color | 0.16 lux (color) |
| Lens | |
| Focal Length | 8.0mm (x4) |
| Horizontal Field of View (HFOV) | 180° |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 30° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | 1 input (1.0Vms, 3K ohm), 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | 4x Micro SD/SDHC/SDXC class 10 cards (cards not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | D-WDR |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | 4x H.264: 3072x1728, 640x360, 4x MJPEG: 3072x1728, 640x360 |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Windows OS |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 0-80% RH (non–condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Required. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 7.55" x 4.25" (192 x 108 mm) |
| Camera Weight | 4.40 lbs (2kg) |
| Housing | Panoramic |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 21.5W, 1.79A, PoE+: max 23.2W |
| Power Requirements | High power PoE injector included, PoE |
| General | |
| Warranty | 5 Year Warranty |
