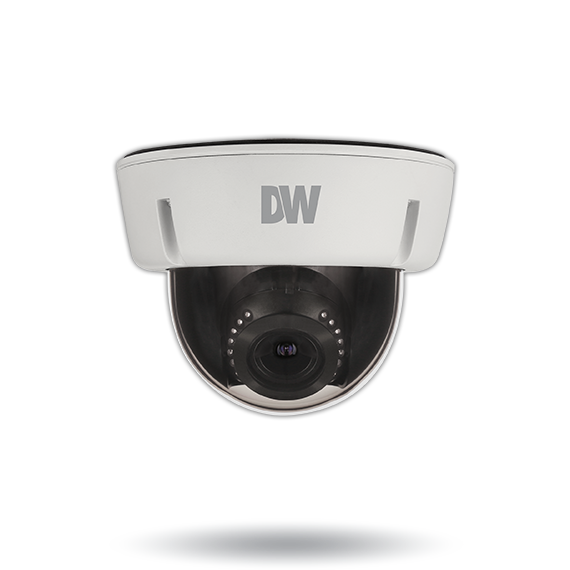

Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras are NDAA compliant and deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The weather resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
CleanView Hydrophobic Dome Coating
The CleanView coating improves visibility by reducing water spots, dust and grease build-up on the camera dome housing’s glass. The CleanView coating treatment will allow the liquid to roll off of the dome’s glass surfaces when tilted vertically up to 10° or less. The CleanView coating leaves the camera dome’s glass clean, repels dust and grease, preventing IR reflections due to dust and smudges.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- CleanView hydrophobic dome coating repels water, dust and grease
- 100' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto sensing 24VAC/12VDC with line lock
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 5MP 1/2.8" CMOS |
| Active pixels | 2608 (H) x 1960 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support |
| Synchronization | Internal |
| Resolution | 2592 x 1944 (5MP) |
| Minimum scene illumination | 0.08 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps |
| 2nd Video output | CVBS output for video testing |
I/O | |
| Alarm output | 1 alarm output |
LENS | |
| Focal length | 2.7 ~ 13.5mm |
| Lens type | Vari-focal p-iris lens |
| Field of view (FoV) | 122 - 40.8° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 72dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | Pelco D / UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 environmental-rated dust-tight and water-resistant |
| IK rating | IK10-rated impact-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V (LED OFF): 3.3W DC12V (LED ON): 5.9W |
| AC24V (LED OFF): 3W AC24V (LED ON): 5W | |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 5.7" x 4.26" (145 x 108.3 mm) |
| Weight | 1.98 lbs (0.9kg) |
