Star-Light 2.1MP/1080p Universal HD over Coax cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. The vandal dome cameras are IP66-rated and discrete in style. All DW Universal HD over Coax® cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure.

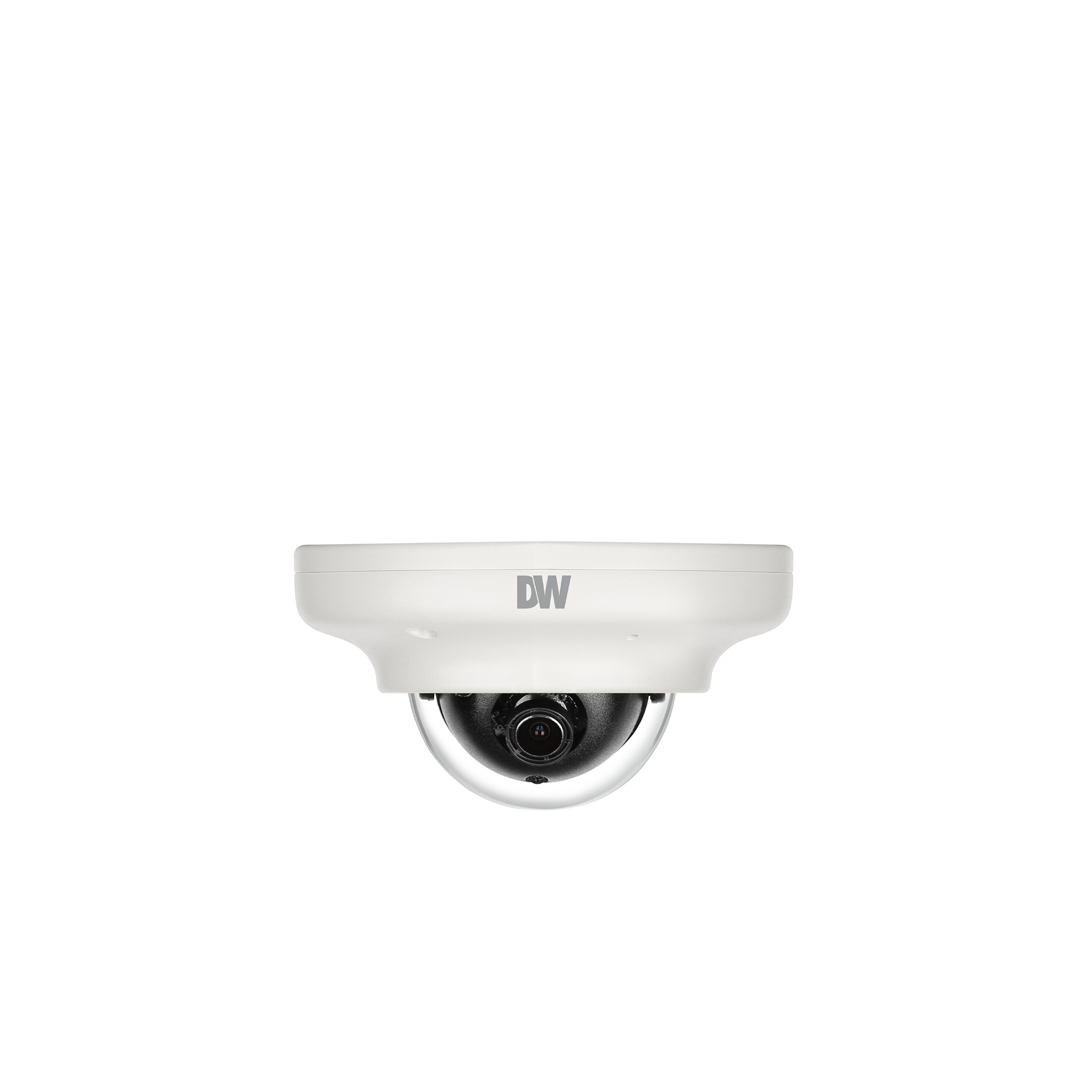

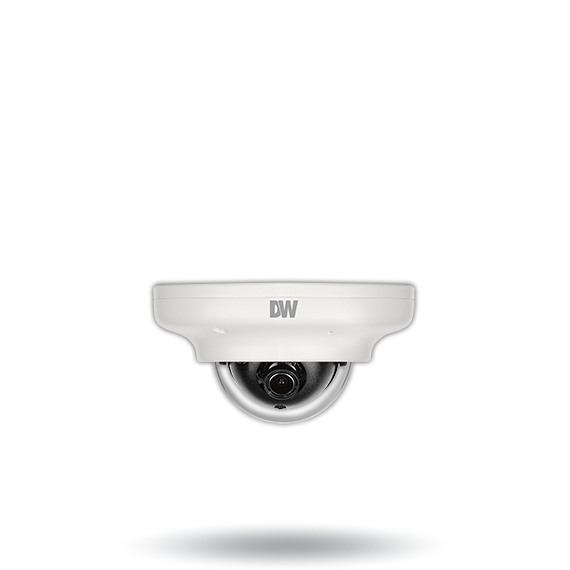

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Star-Light Super Low-Light Technology
Star-Light Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light cameras can provide unparalleled details in total darkness.
Universal HD over Coax Technology
Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.
Decorative rings
Customize your ultra low-profile vandal domes with decorative rings. The DWC-V7DECO set of five (5) white rings can be painted to match your décor.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/2.7" Image Sensor at Real-time 30fps
- 3.6mm Fixed Lens
- Digital Wide Dynamic Range (D-WDR)
- OSD Control Via Coaxial (UTC)
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- NDAA/TAA compliant
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.7” CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0. 2 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
LENS | |
| Focal length | 3.6mm |
| Lens type | Fixed lens |
OPERATIONAL | |
| Shutter mode | Auto, manual |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x30 |
| Dynamic range compressor (DRC) | Off, on, auto |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / push / ATW / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~15 |
| Motion detection | Yes |
| Privacy zones | 4 programmable privacy zones |
| Sharpness | On, off |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper resistant |
| IK rating | IK10-rated impact resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC 12V |
| Power consumption | DC12V: 1.92W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.13' x 2.39" (105 x 60.7 mm) |
| Weight | 0.95 lbs (0.43kg) |
