Featuring Star-Light Plus color in near-total darkness, 5MP Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The ultra low-profile weather resistant vandal dome cameras are IP67-rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure.

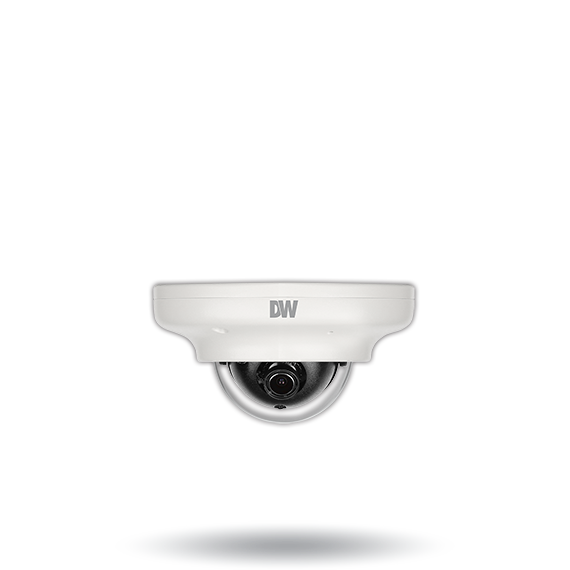

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

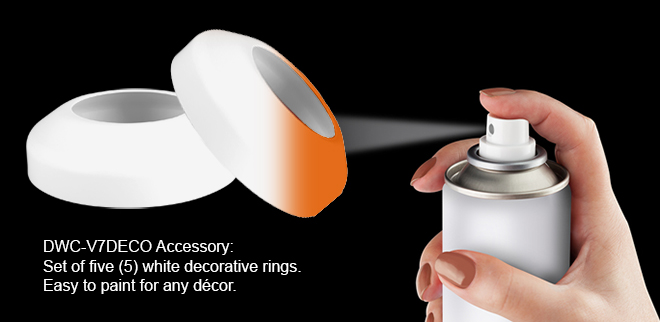

Decorative rings
Customize your ultra low-profile vandal domes with decorative rings. The DWC-V7DECO set of five (5) white rings can be painted to match your décor.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.8mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- Ultra low-profile vandal dome housing
- Smart DNR 3D digital noise reduction
- De-Fog extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 5MP 1/2.8" CMOS |
| Active pixels | 2608 (H) x 1960 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support |
| Synchronization | Internal |
| Resolution | 2592 x 1944 (5MP) |
| Minimum scene illumination | 0.13 lux (color) |
| S/N ratio | 55dB |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps |
| 2nd video output | CVBS output for video testing |
LENS | |
| Focal length | 2.8mm |
| Lens type | Fixed lens |
| Field of view (FoV) | 103° |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 72dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 environmental-rated dust-tight and water-resistant |
| IK rating | IK 10-rated impact-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V only |
| Power consumption | DC12V: 2W DC12V |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.13" x 2.38" (105 x 60.7mm) |
| Weight | 0.88 lbs (0.4kg) |
