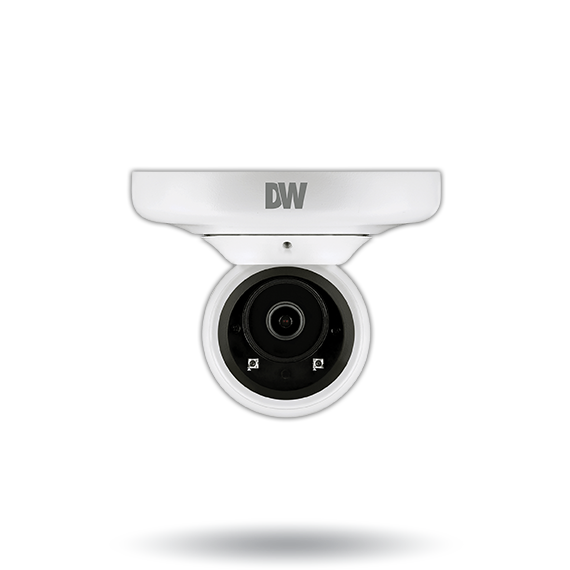

Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The weather resistant turret cameras are IP66 rated, eliminate IR reflections, and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.

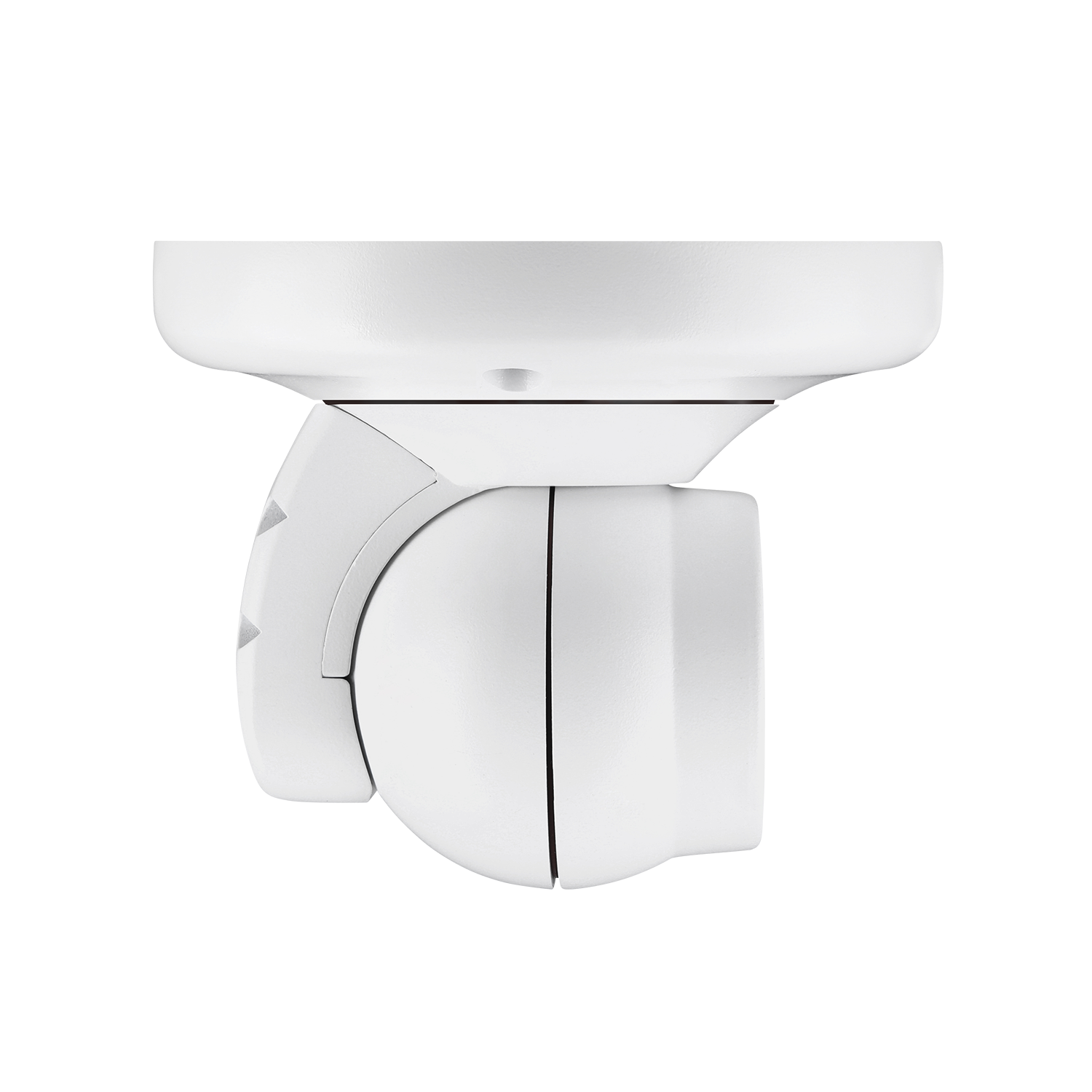

Vandal turret housing
The vandal turret cameras have a unique dome-free design that allows for a true 90° tilting angle with endless 360° panning and rotation.
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 70' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP67 dust-tight and water-proof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 5MP 1/2.8" CMOS |
| Active pixels | 2608 (H) x 1960 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support |
| Synchronization | Internal |
| Resolution | 2592 x 1944 (5MP) |
| Minimum scene illumination | 0.16 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps |
LENS | |
| Focal length | 4.0mm |
| Lens type | Fixed lens |
| Field of view (FoV) | 82° |
| IR distance | 70ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 72dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP67 rated |
| IK rating | IK 10-rated impact-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V only |
| Power consumption | DC12V (LED OFF): 1.89W DC12V (LED ON): 4.26W |
MECHANICAL | |
| Material | Aluminum vandal ball housing |
| Dimensions | 4.92" x 4.05" (125 x 103mm) |
| Weight | 1.16 lbs (0.53kg) |
