This NDAA/TAA-compliant MEGApix Ai CaaS all-in-one IP camera detects and converts license plate numbers and letters to usable digital data at up to 75mph. The camera provides real-time 30fps 5MP resolution, with DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required.

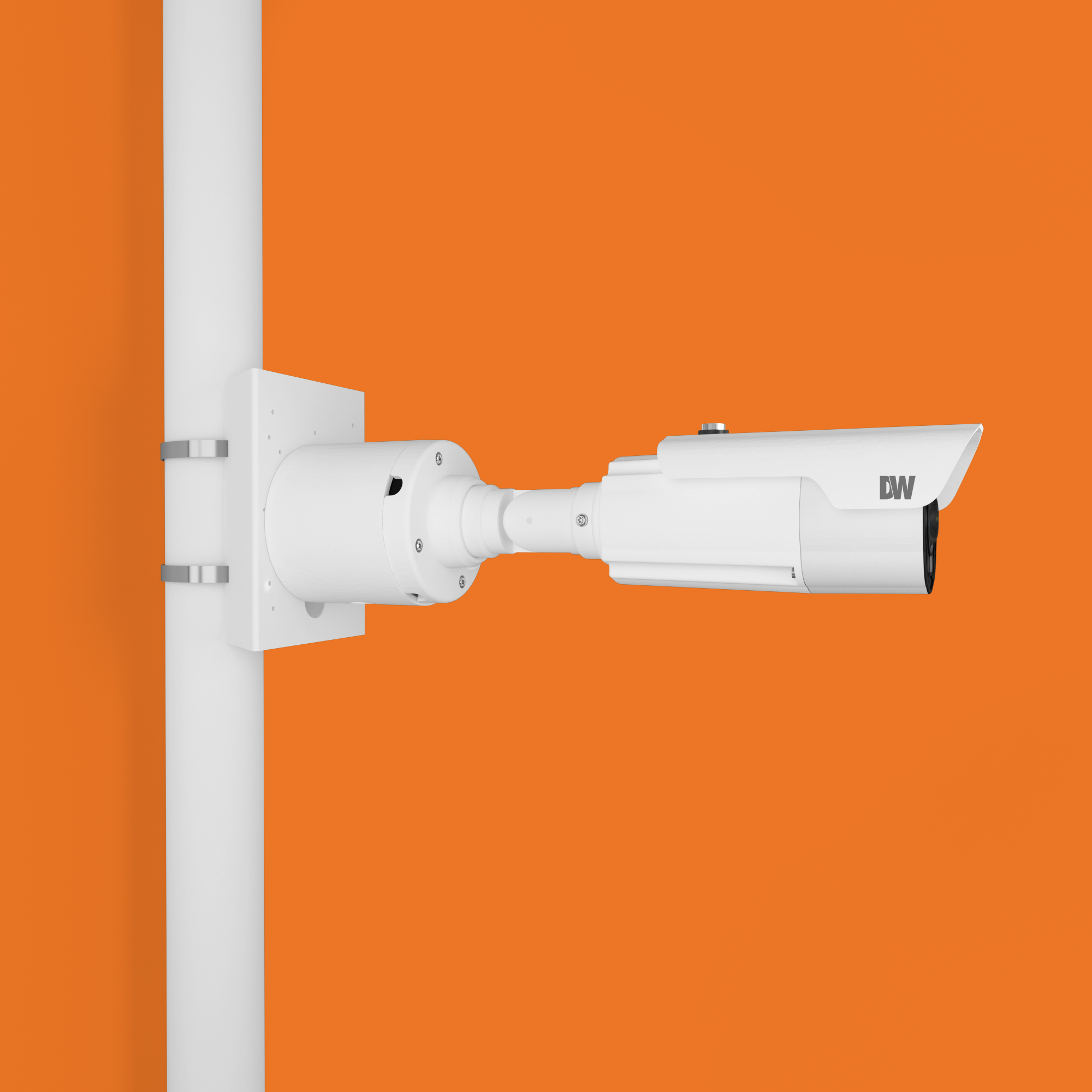

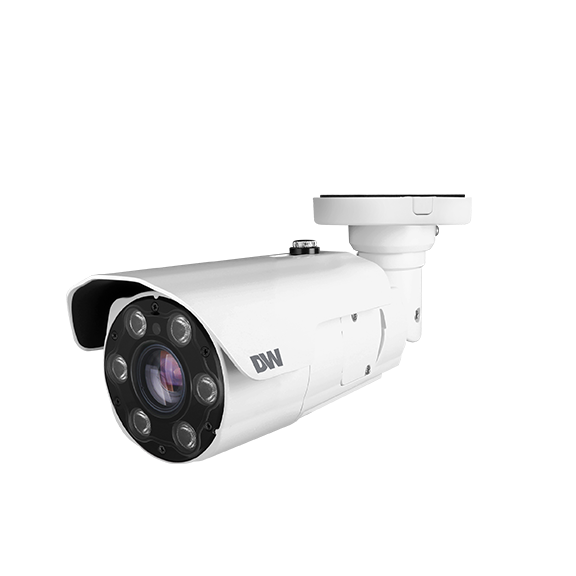

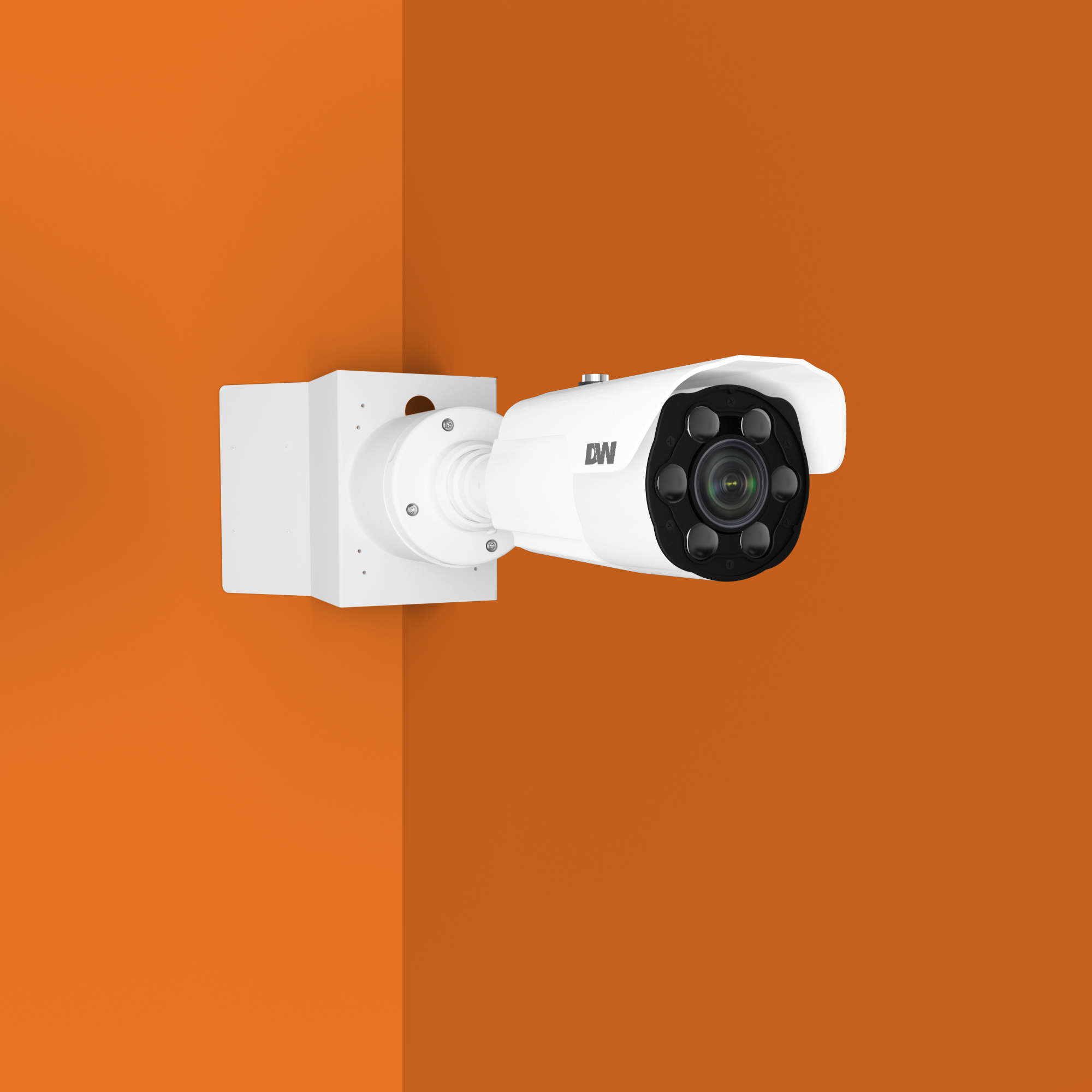

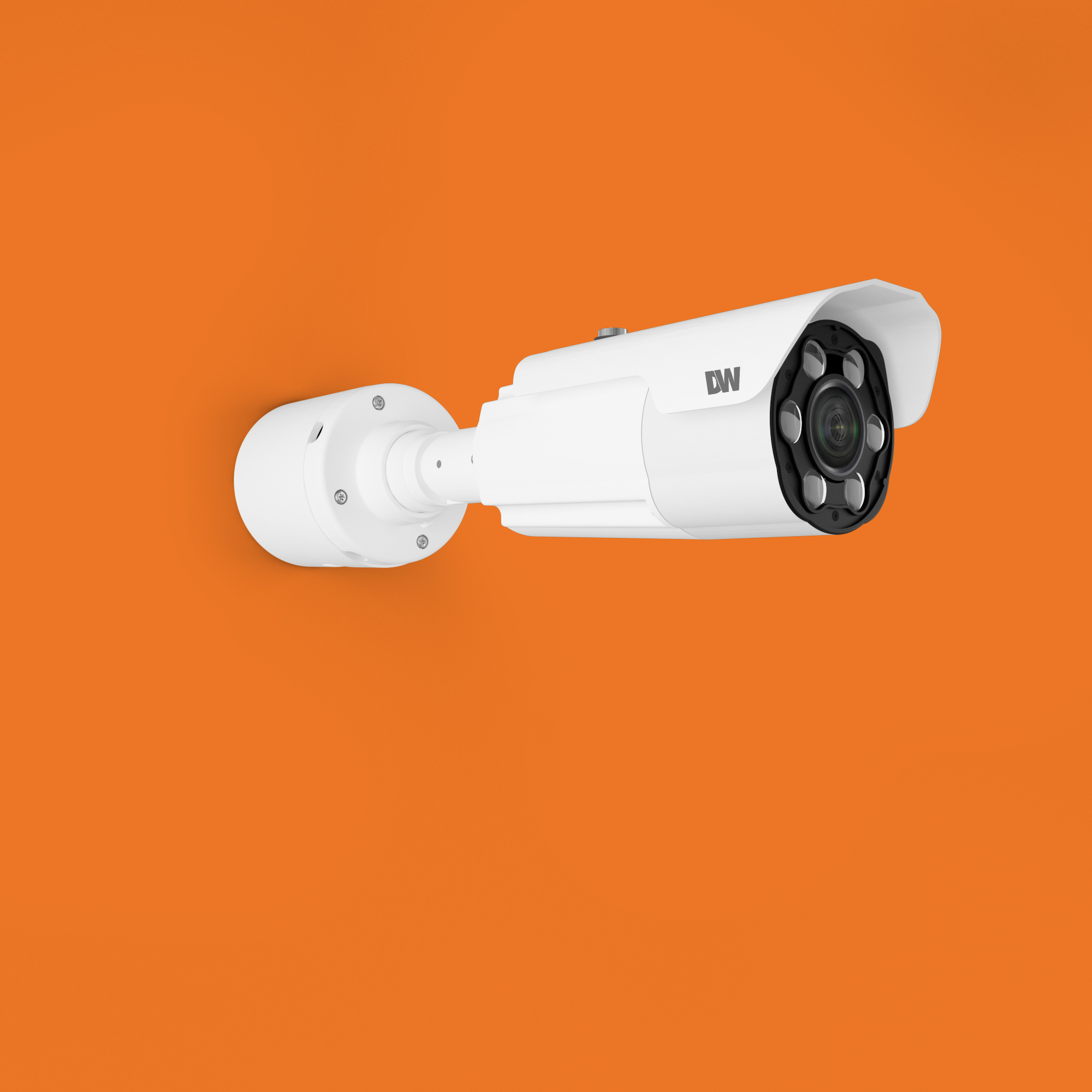

MEGApix Ai ANPR IP camera

This MEGApix Ai ANPR IP camera uses the Ai engine to detect and extract the numbers and letters in license plates at up to 75mph at 95% accuracy, converting the pixels to usable digital data.

High-resolution image with 8x optical zoom

DW’s Ai cameras deliver 5MP images in real-time at 30fps to accurately identify fast-moving vehicles and capture license plates. The Camera also supports up to 8x optical zoom, ideal for narrow field-of-view applications that focus on the vehicles’ license plates.

Hardware specialized for license plate captures

The ALPR, ANPR, and MMCR cameras are built specifically for numeric license plate capture. With high-resolution, long-range IR LEDs and 6-50mm lens, the cameras are ideal for recognizing the characteristics of vehicles, models, and license plate details at any lighting condition, both on color and B/W.

Image enhancement features for challenging lighting

DW’s ALPR, ANPR and MMCR cameras are equipped with the latest image enhancement capabilities. They reduce glare and harsh light that can interfere with the license plate’s details. The result is clean and clear images with 95% accuracy at capturing license plates.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Camera as a System

The CaaS solution supports multiple cameras in the same network, and unlimited systems all accessible and manageable via DW Spectrum client, app, and DW Cloud.

All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers

MEGApix CaaS cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.

Ambarella CV22 and CV25 chips with CVflow

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Features:

• 5MP sensor at real-time 30fps
• Star-Light Plus color in near-total darkness technology
• Seamless integration and control with DW Spectrum
• Built-in 1TB storage options for up to 90 days of retained video
• Easily to deploy with pre-loaded DW Spectrum for out-of-the-box operation.
• 24/7 access to live and recorded video feed
• Automatic installation and licensing with first power on
• ANPR optical character recognition captures and reads vehicle license plates at up to 75mph speeds
• Long-range vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• Cold Start -40°F (-40°C), allowing the camera to power up in extremely cold environments
• 130' Smart IR with intelligent camera sync for clear B/W images with no need for external light
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Two-way audio for direct communication between the monitoring station and the camera's location
• Alarm sensor input and relay output for access control integration
• Web server built-in for easy camera management from any browser
• High-power PoE and DC12V for single cable simplified installation
• NDAA/TAA compliant for federal and government projects
• IP67- and IK10-rated camera housing built to last
• 5 year warranty
