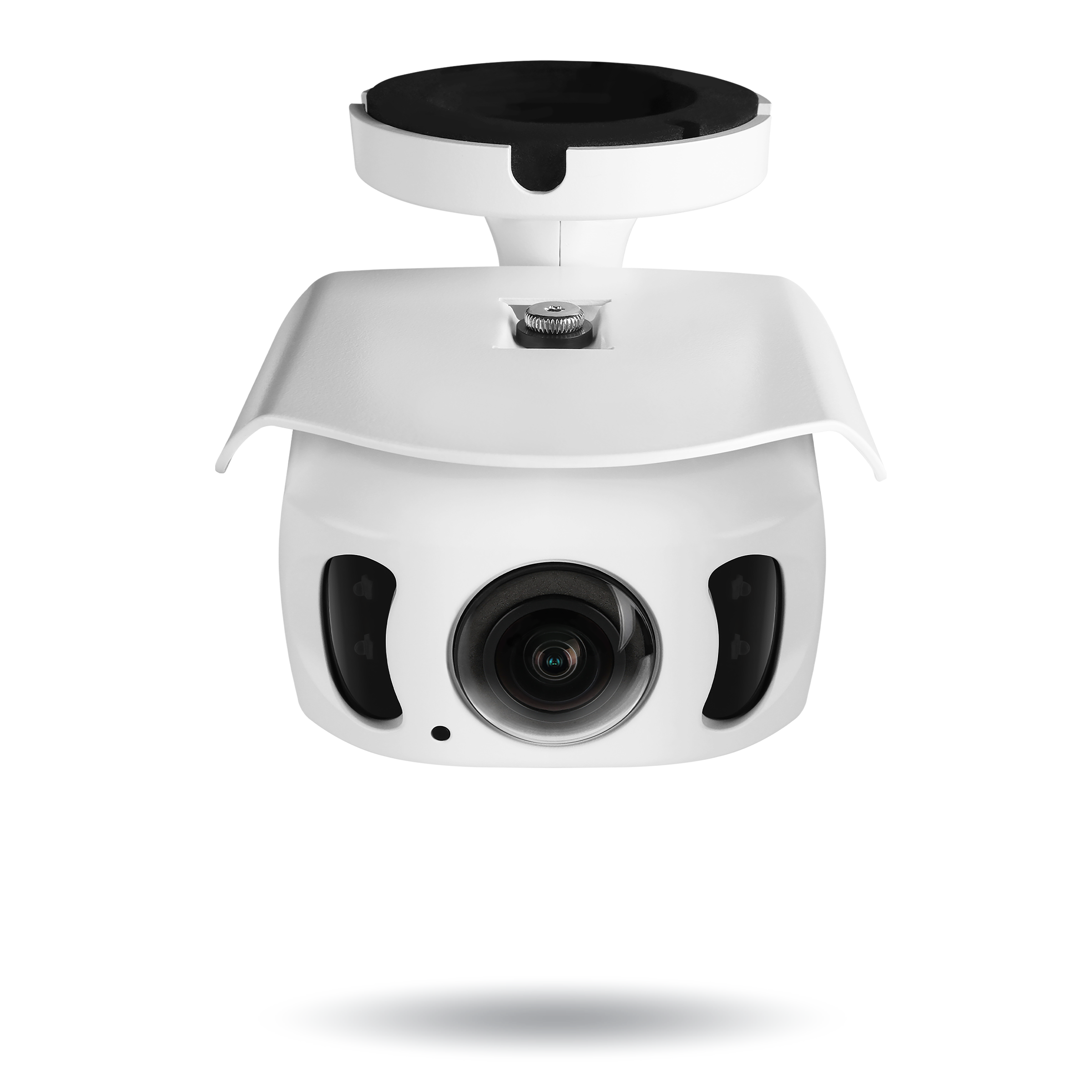

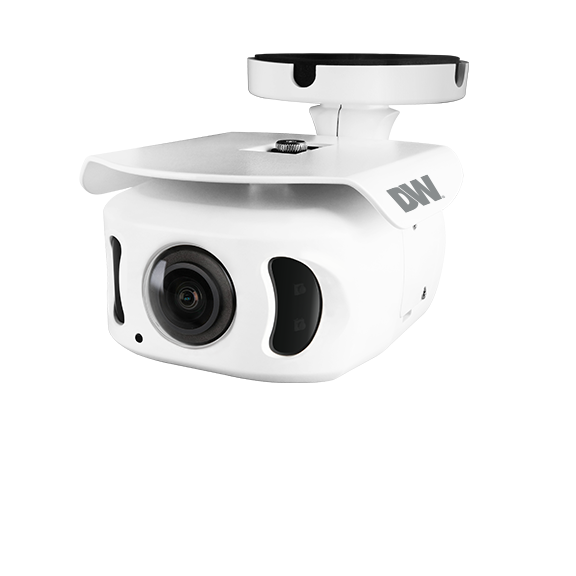

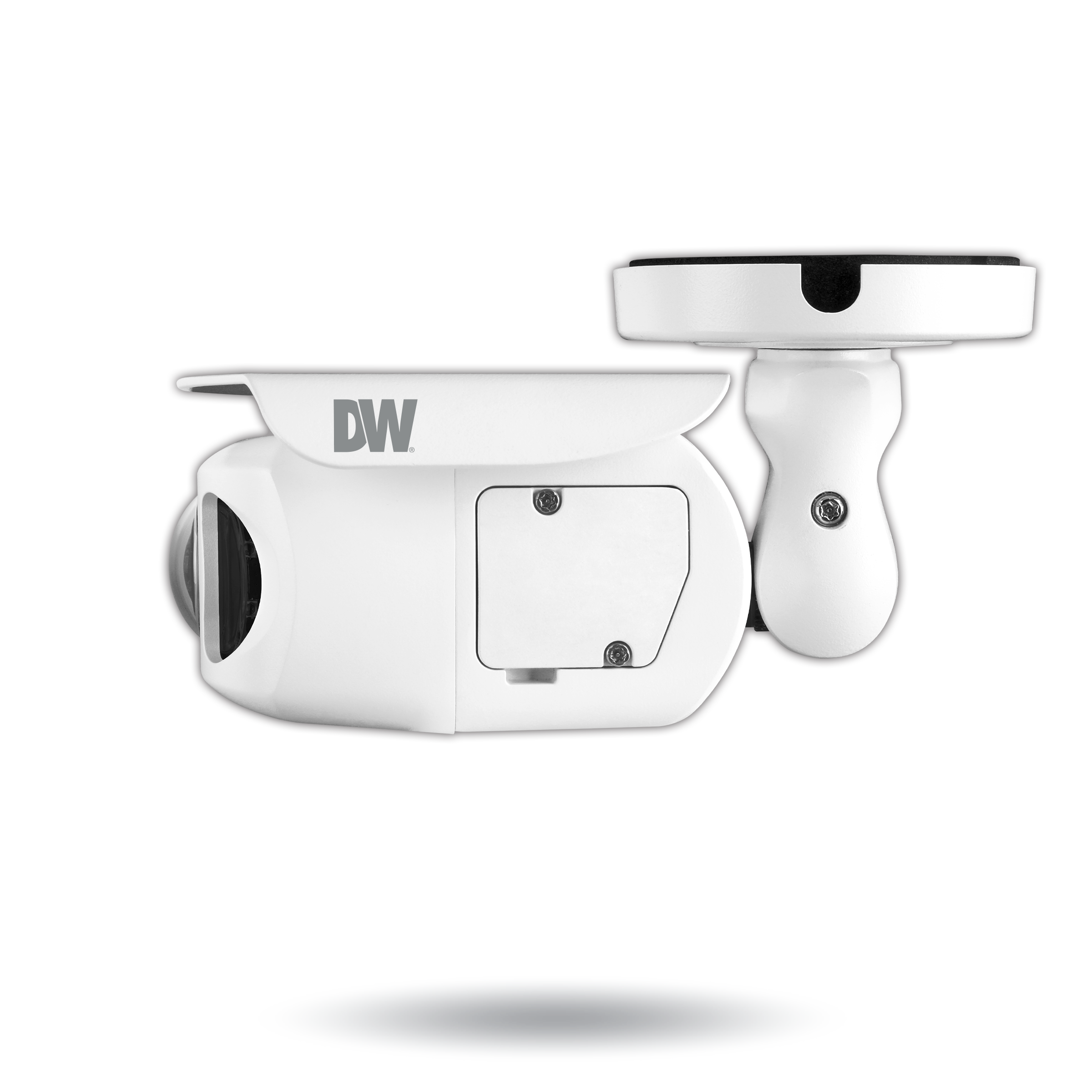

TThis NDAA/TAA-compliant MEGApix Ai CaaS all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required. The camera’s ultra-wide view lens offers edge-to-edge image clarity, ideal for wide-area situational awareness.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our Deep Learning engines perform object detection (DL Object tracker), automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Ultra-wide view for situational awareness

Ideal ROI with a single camera replacing multiple cameras to capture large areas.

Narrow installations with near-camera coverage

The camera’s unique focal length is suitable for narrow corridor installations, with clear images as close as 19.5~23.5 inches from the camera.

Features:

• 4K sensor at real-time 30fps
• Star-Light Plus color in near-total darkness technology
• AI Deep Learning object detection
• Create up to 40 separate detection zones.
• Easy setup with no analytics calibration
• Seamless integration and control with DW Spectrum
• Reduce false alarms with multiple detection zones and logical rules.
• Increase your recording storage with smart recording and no false alarms.
• Built-in 1TB storage options for up to 90 days of retained video*
• Easily to deploy with pre-loaded DW Spectrum IPVMS for out-of-the-box operation.
• 24/7 access to live and recorded video feed
• Automatic installation and licensing with first power on
• 2.3mm ultra-wide view lens for edge-to-edge image clarity without pixel loss
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• Cold Start -40°F (-40°C) (DC power), allowing the camera to power up in extremely cold environments
• 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Two-way audio for direct communication between the monitoring station and the camera's location
• Alarm sensor input and relay output for access control integration
• Web server built-in for easy camera management from any browser
• PoE and DC12V for single cable simplified installation
• NDAA/TAA compliant for federal and government projects
• IP67- and IK9-rated camera housing built to last
• 5 year warranty
