This NDAA/TAA-compliant MEGApix Ai low-profile vandal dome IP camera provides 5MP resolution at real-time 30fps with an edge AI engine onboard, placing the power of AI deep learning at your fingertips, with object detection and people tracking. The camera features Star-Light Plus color in near-total darkness and a vari-focal lens in an IP67-rated, IK10-rated housing.

Next Generation IR Technology

DW’s new dome design places the IR LEDs separately from the lens and dome. The result is a clear B/W image in any lighting and weather conditions, with no IR reflection on the dome or IR hotspots.

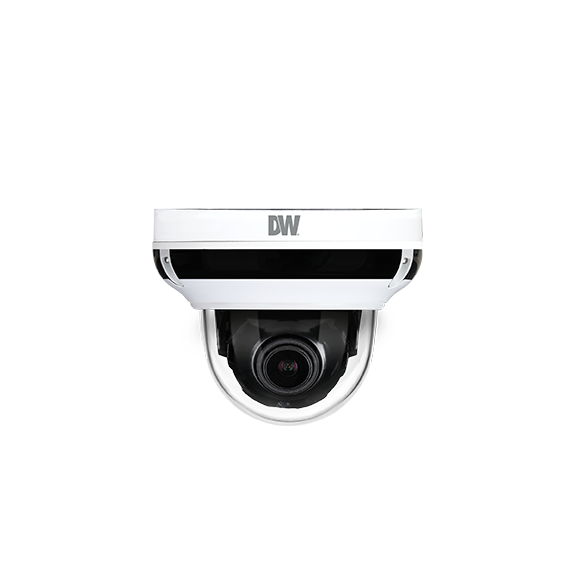

Ultra Low-Profile Vandal Dome Camera

The DWC-XSDH hardware packs all the power and capabilities of DW’s Ai into a small, discrete vandal housing. The camera, small enough to fit in the palm of your hand, is a great addition to any application that requires maximum surveillance power in a discreet installation.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our Deep Learning engines perform object detection (DL Object tracker), automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus color in darkness technology

Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Features:

• 5MP sensor at real-time 30fps
• Star-Light Plus color in near-total darkness technology.
• AI Deep Learning object detection.
• Create up to 40 separate detection zones.
• Easy setup with no manual calibration
• Seamless integration and control with DW Spectrum.
• Reduce false alarms with multiple detection zones and logical rules.
• Increase your recording storage with smart recording and no false alarms.
• Separate IR LEDs cover for zero IR reflection
• Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and a focused image any time.
• True Wide Dynamic Range (WDR) for clear images in challenging light
• Simultaneous streaming and multiple codec options for smart bandwidth management
• 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
• Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
• Privacy zones cover sensitive areas in the camera's field of view.
• Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location.
• Local SD card slot for local recording in case of network loss.
• Alarm sensor input and relay output for access control integration
• Web server built-in for easy camera management from any browser
• High-power PoE and DC12V for single cable simplified installation
• NDAA/TAA compliant for federal and government projects
• IP67- and IK10-rated camera housing built to last
• 5 year warranty
