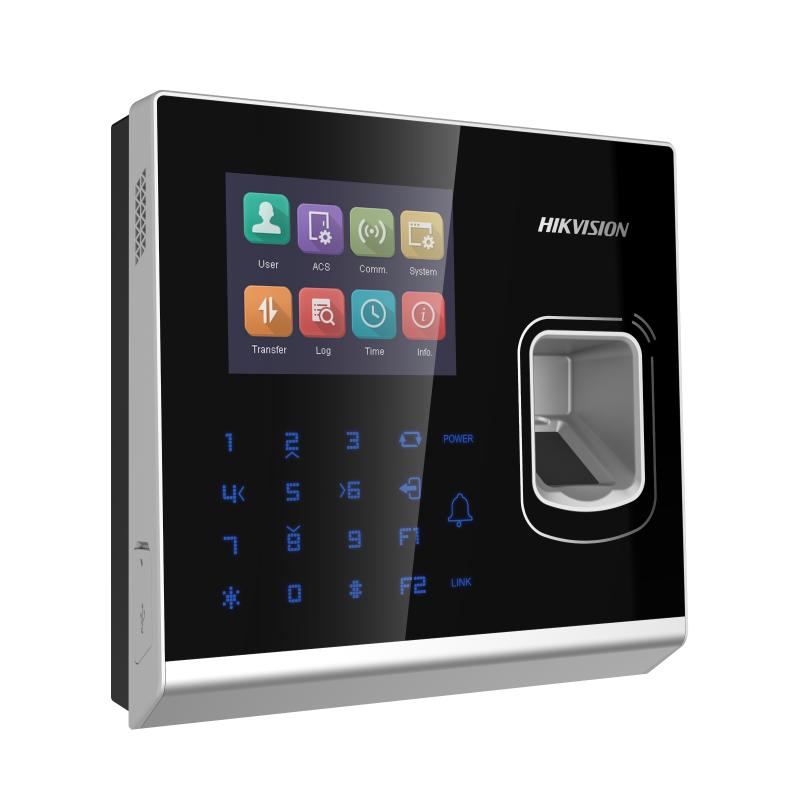

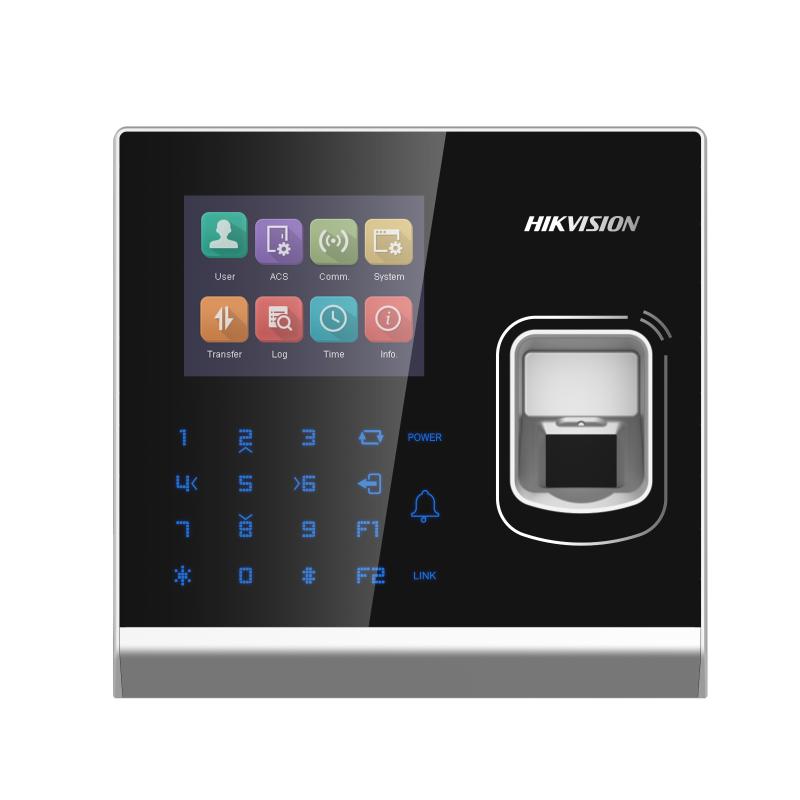

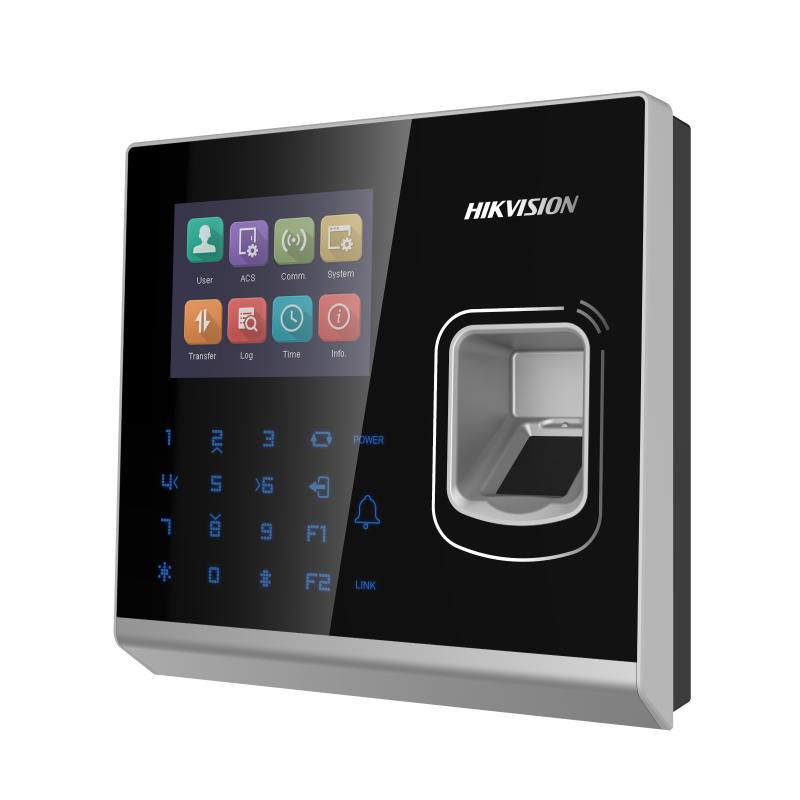

Hikvision - DS-K1T201AMF - Display Screen
Part number:
DS-K1T201AMF
Price:
Pro Series Fingerprint Terminal. DS-K1T201AMF is an optical fingerprint access control terminal with multiple advanced technologies including fingerprint recognition, Wi-Fi, and LCD display screen. It is designed with a 2.8-inch LCD display screen. It is equipped with optical fingerprint recognition module (supporting 1:1 mode and 1:N mode), and supports offline operation
Features:
- Fingerprint Access Control Terminal
- 2.8-inch LCD display screen
- 5000 fingerprints, 100,000 cards（Mifare card）, 300,000 events storage
- Communication via TCP/TP and Wi-Fi
- RS-485 and Wiegand interface
- ISUP5.0、ISAPI
| Specification | |
| System | |
| Operation system | Linux |
| Screen | |
| Size | 2.8-inch |
| Resolution | 320 × 240 |
| Type | Display screen |
| Audio | |
| Audio output | Loudspeaker |
| Network | |
| Wired network | 100 M/1000 M self-adaptive |
| Wi-Fi | Support |
| Communication protocol | TCP/IP |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| IO input | 2 |
| IO output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 100,000 |
| Fingerprint capacity | 5000 |
| Event capacity | 300,000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading frequency | 13.56 MHz |
| Card reading distance | ＜ 1 s |
| Card reading duration | 0 to 5 cm |
| Others | |
| Power supply | 12 VDC/2 A |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 137 mm x 142 mm x 35 mm (5.4" × 5.6" × 1.4") |
