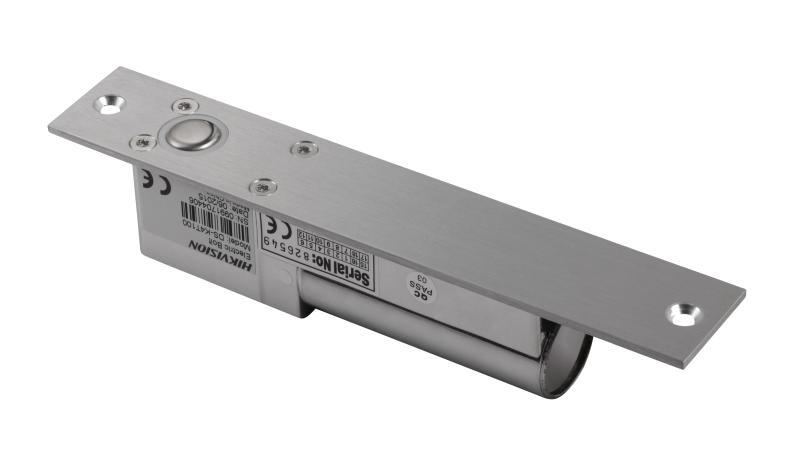

Hikvision - DS-K4T100 - Electric Bolt Lock
Part number:
DS-K4T100
Price:
Pro Series Bolt Electric Lock
Features:
- Electric bolt, polished and brushed stainless steel, upport thrust of 800kg
- Working current: 900mA(Startup current), 100mA (standby), 12VDC + 10%
- Capable of 500,000 locking operations
- Suitable for wooden door, glass door, metal door and fireproof door
- Signal output of door lock status.
| Specification | |
| General | |
| Power supply | 12 VDC+10 %, 900 mA (startup current), 100 mA (standby) |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95 % (relative humidity) |
Dimensions | Lock Body: 205 mm × 35 mm × 40 mm (8.07" × 1.38" × 1.57") Armature Plate: 90 mm × 25 mm × 2 mm (3.54" × 0.98" × 0.07") Bolt: 16 mm × 16 mm (0.63" × 0.63") |
| Weight | 0.7 kg (1.54 lb) |
| Material | Bolt: polished and brushed stainless steel |
| Thrust | Max. 800 kg (1764 lb) |
| Door type | Glass door, wooden door, metal door, fireproof door |
| Signal output | Signal output NC, COM contact of door status |
| Magnetic induction distance | 8 mm (0.31") |
| Delay duration | 0/3/6/9 s optional |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
