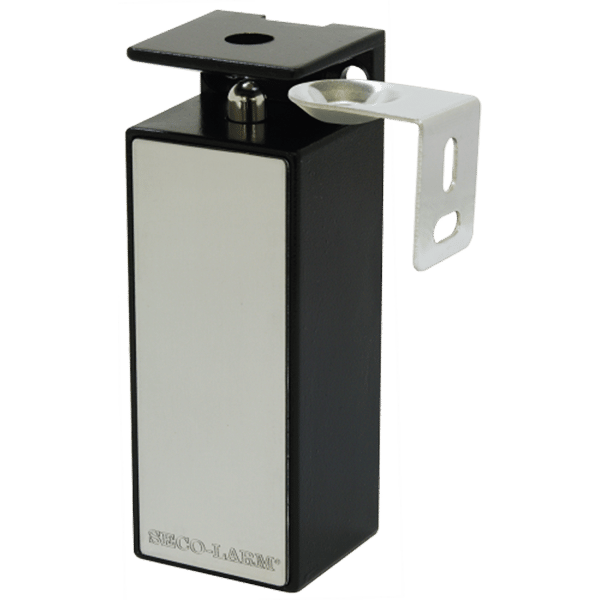

SECO-LARM - SD-997C-GCQ - Electric Deadbolt Cabinet Lock
Part number:
SD-997C-GCQ
Price:

Electric Deadbolt Cabinet Lock, 12/24VDC operation, fail-safe/fail-secure operation, electronically secures lockers/cabinets/cases/etc, Lock status sensor allows for monitoring whether doors are locked, current draw: 300mA@12VDC/150mA@24VDC



The SECO-LARM Electric Deadbolt Cabinet Lock provides security for lockers, cabinets, cases, and drawers. Dual voltage settings and on-site reversible fail-safe/fail-secure operation offers flexibility and easy installation. The built-in lock status sensor allows for monitoring whether the cabinet doors are locked.



Features:

  • Electronically secure lockers, cabinets, cases, and drawers
  • Lock status sensor allows for monitoring whether doors or drawers are locked
  • Selectable fail-safe/fail-secure operation
  • Operating voltage: 12/24 VDC
  • Current draw: 300mA@12VDC and 150mA@24VDC
  • Mounting hardware included
OperationFail-safe / Fail-secure
Contact SwitchNO/NC.
Current Draw300mA@12VDC, 150mA@24VDC
Lock Status Rating1A@30VDC
Lock statusMicro-switch
Operating Voltage12/24 VDC
Door StatusReed switch, 10W (Max)
Door Status Max Switching Contact0.5A
Dimensions3-1/4” x 1-3/16” x 1-1/8” (82x30x28 mm)
