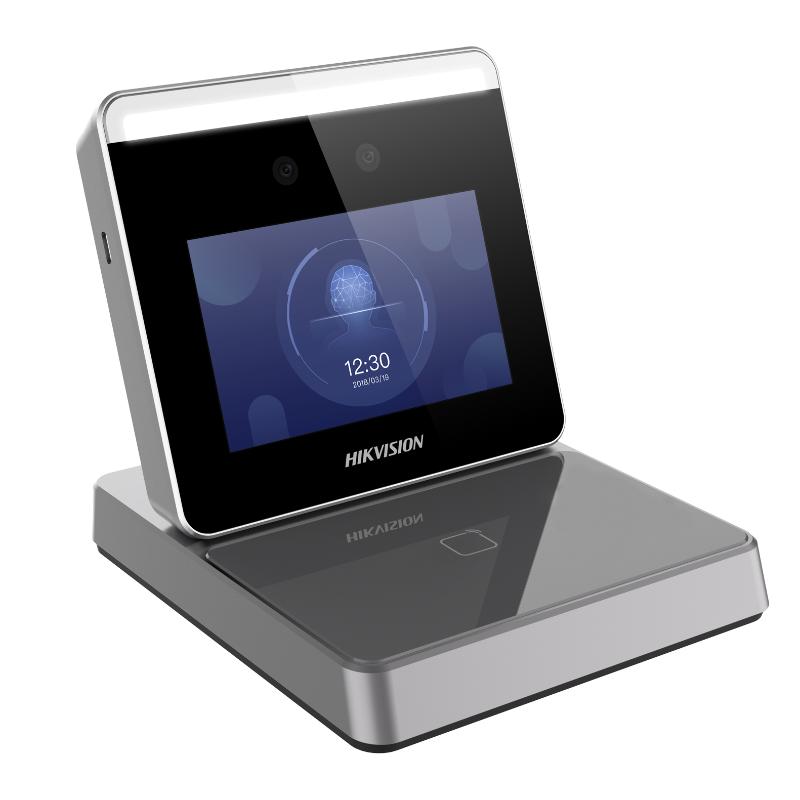

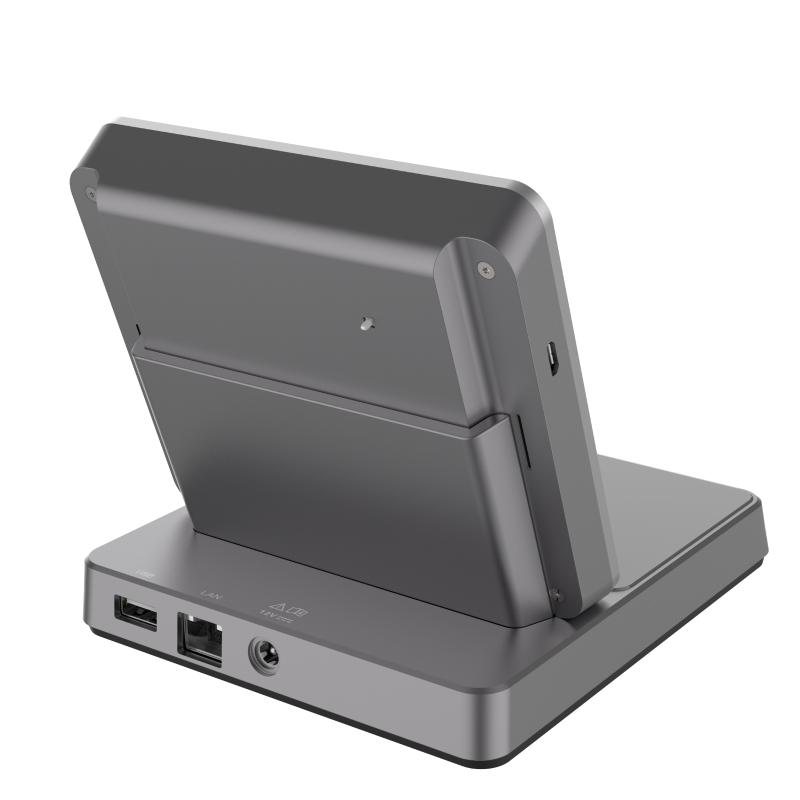

Hikvision - DS-K1F600-D6E-F - Enrollment Station
Part number:
DS-K1F600-D6E-F
Price:
Enrollment Station. The enrollment station can realize multiple user information's enrollment on one device. It supports enrolling face picture, fingerprint (parts of the device model support), 13.56 MHz IC card No., and 125KHz ID card No.
Features:
- Supports enrolling face picture, 13.56 MHz Mifare 1 card, and 125KHz EM card
- 3.97-inch LCD touch screen,2 Mega pixel wide-angle lens
- Supports TCP/IP communication
- Dimensions：121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")
| Model | DS-K1F600-D6E | DS-K1F600-D6E-F | |
| System | Operation system | Linux | |
Screen | Dimensions | 3.97 inch | |
| Resolution | 800 × 480 | ||
| Type | Capacitive | ||
| Operation method | Touch | ||
Video | Pixel | 2 MP | |
| Lens | 2 | ||
| WDR | Support | ||
| Video standard | PAL/NTSC | ||
| Audio | Audio output | Support | |
| Volume adjustment | Support | ||
| Network | Wired network | TCP/IP | |
| Wi-Fi | Support | ||
Interface | Power interface | Round | |
| USB | 1 | ||
| PSAM card | Reserved | ||
Capacity | User capacity | 2000 | |
| Card capacity | 20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules) | ||
| Face capacity | 2000 | ||
| Fingerprint capacity | / | 20,000 (10 fingerprints per person) | |
| Event capacity | 2000 ofline enrollment records | ||
Authentication | Card type | EM card and Mifare 1 card | |
| Card reading frequency | 13.56MHz, 125KHz | ||
| Card reading distances | 0 to 5 cm | ||
| Face recognition distance | 0.3 m to 1.5 m | ||
Function | Face anti-spoofing | Support | |
| Audio prompt | Support | ||
| M1 card encryption | Support | ||
| Time synchronization | Support | ||
Others | Supplement light | Support | |
| Indicator | Not support | ||
| Power supply | 12 VDC, 15 W | ||
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Working humidity | 10％ to 90％ | ||
| Model | DS-K1F600-D6E | DS-K1F600-D6E-F | |
| Dimensions | 121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9") | ||
| Application environment | Indoor | ||
| Weight | 0.5 kg (1.1 lb) | ||
| Installation | Base mounting | ||
